Ignition System

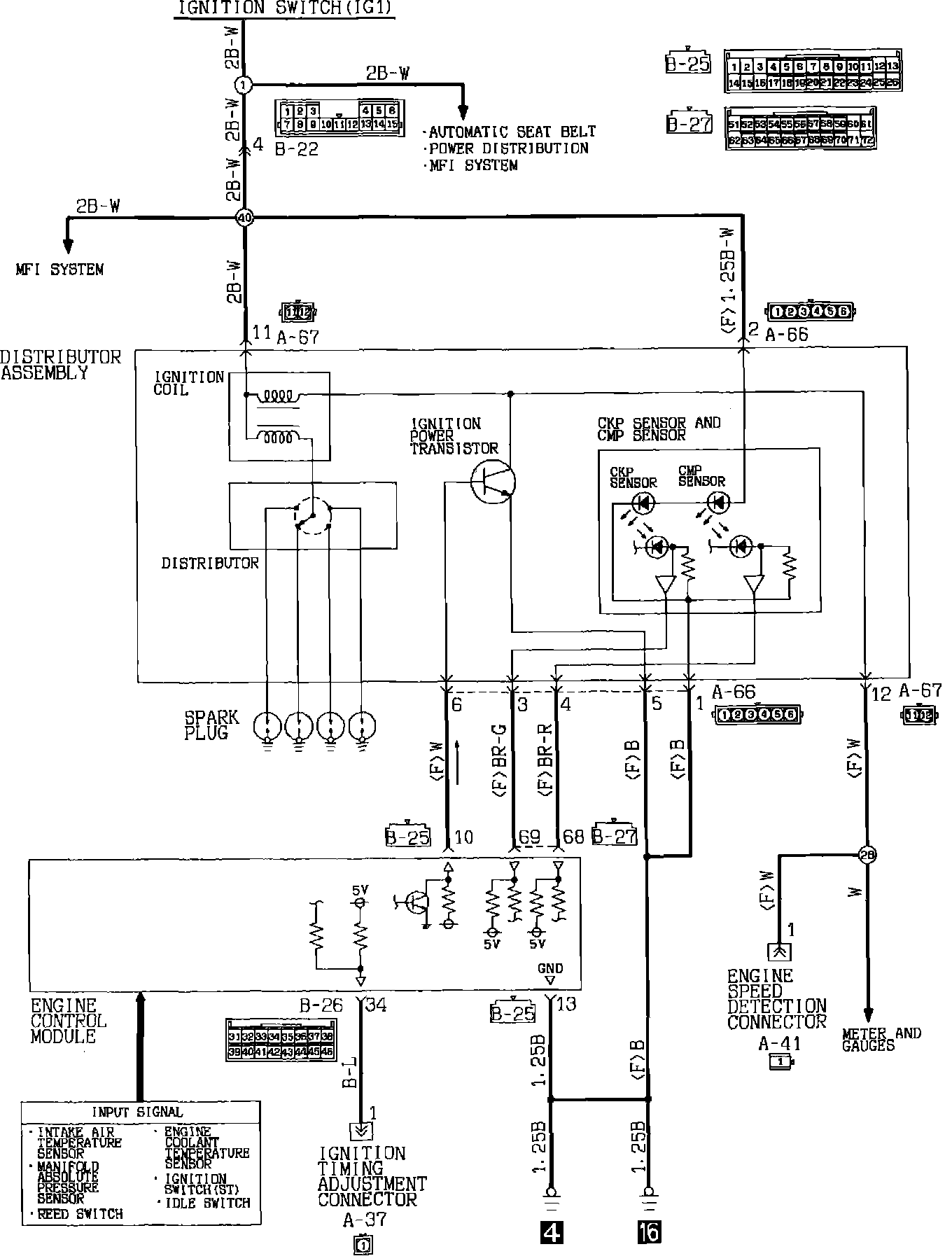

Ignition System Circuit:






For additional wiring information refer to CHASSIS ELECTRICAL DIAGRAMS.
