Galant L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

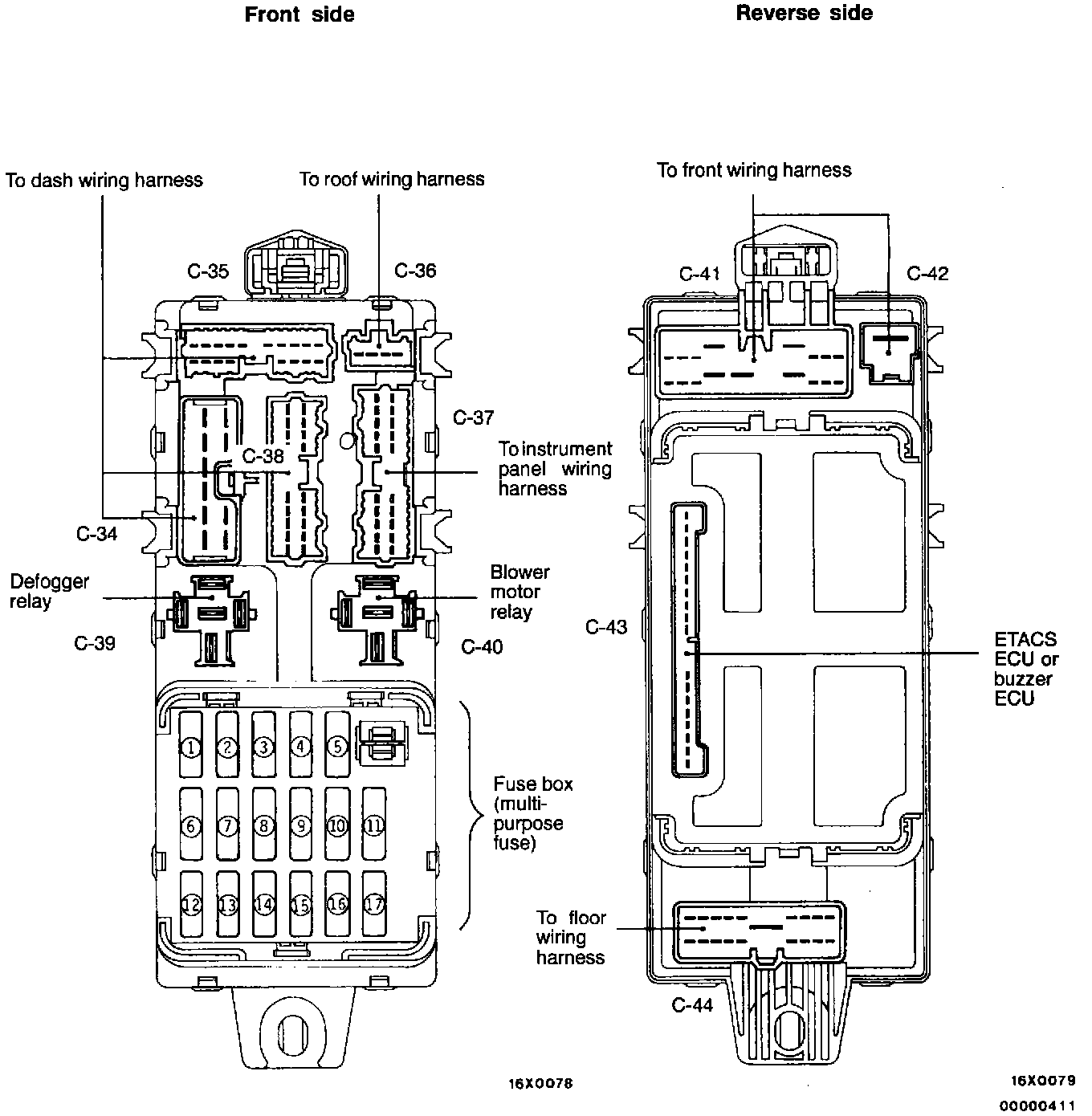

Junction Block 1:

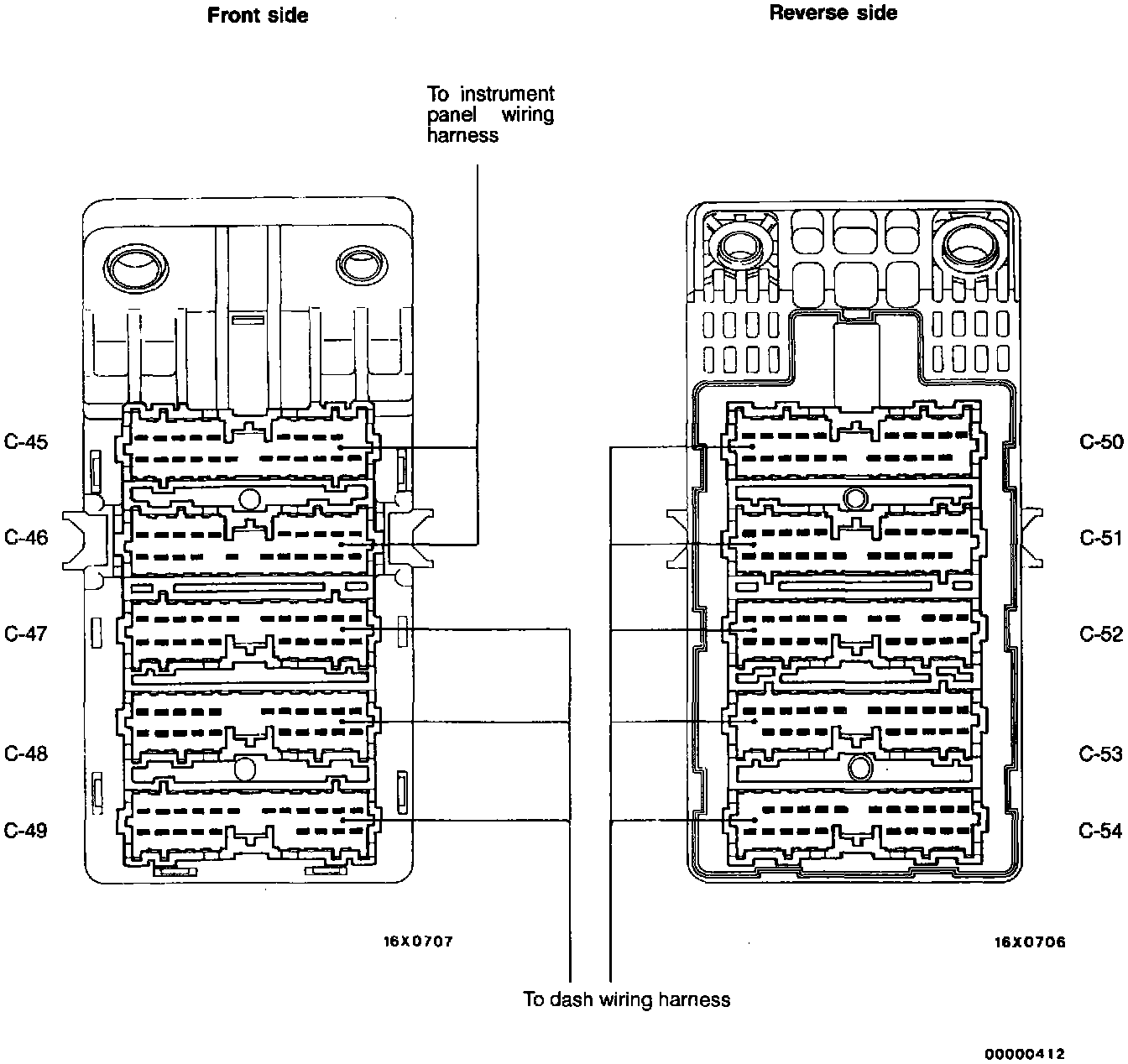

Junction Block:
