Vehicle Speed Sensor Check

VEHICLE SPEED SENSOR CHECK

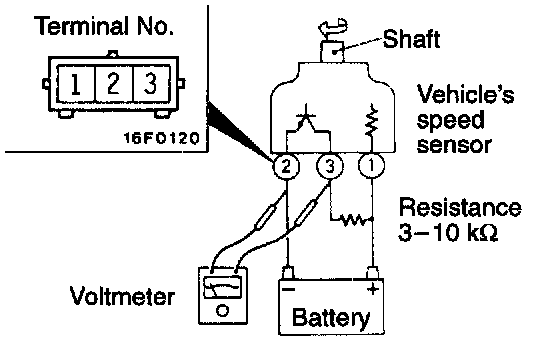

1. Remove the vehicle's speed sensor and connect as shown in the illustration, using a 3-10 k ohms resistance.




2. Use a voltmeter to check for voltage at terminals (2) and (3) when the pulse generator shaft is turning. (One revolution = four pulses.)
