Heater Core: Service and Repair

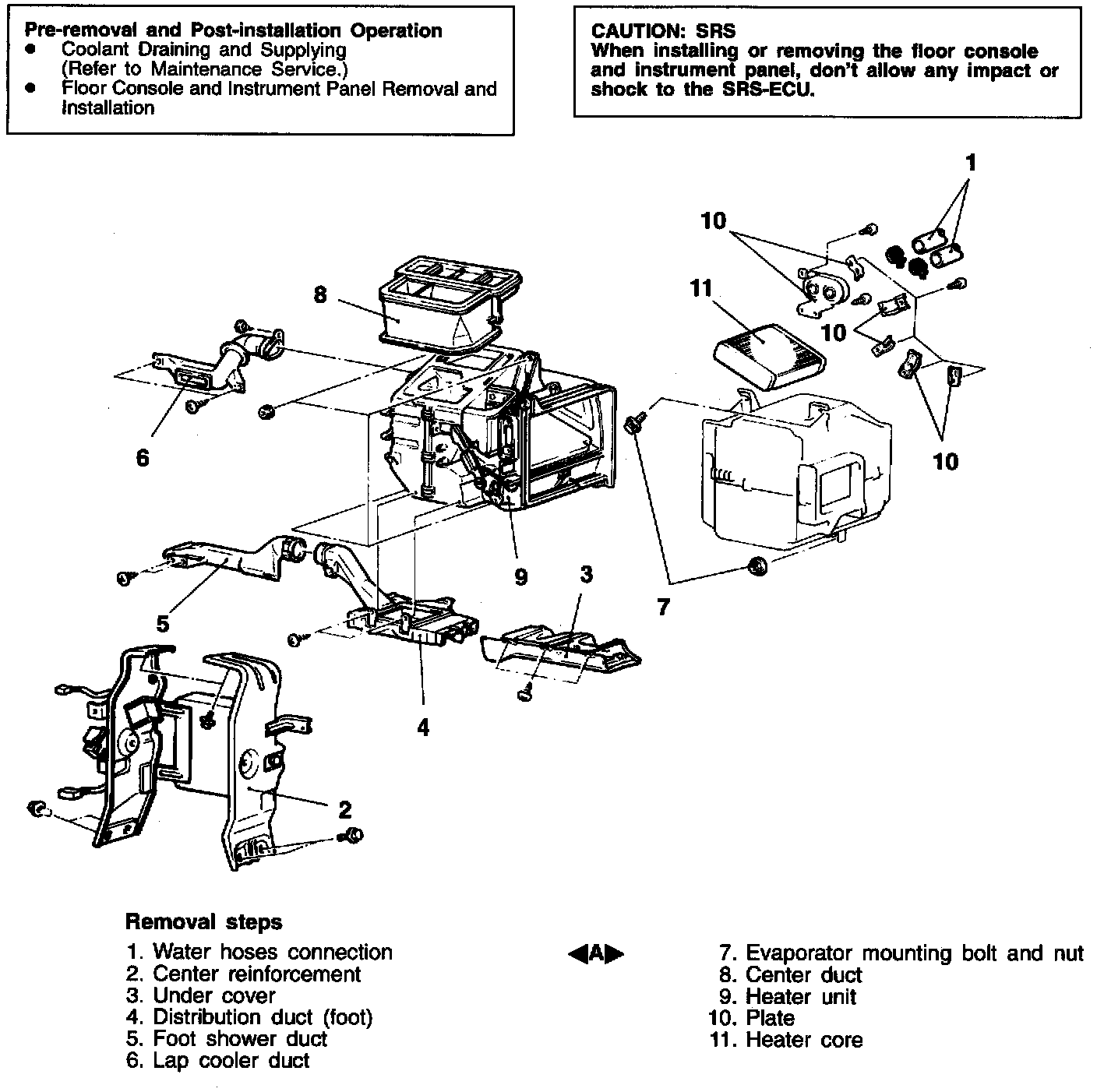

REMOVAL AND INSTALLATION




REMOVAL SERVICE POINT
(A) EVAPORATOR MOUNTING BOLT REMOVAL
(Vehicles with manual air conditioning)

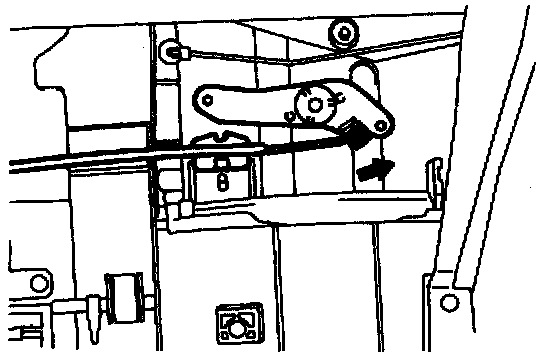

NOTE: In order to prevent bolts from falling into the blower assembly, set the air-selection damper to the position that permits outside air introduction.

INSPECTION
- Check the operation of dampers and link mechanism.
- Check the heater core for clogging and water leakage.
