Fuse: Locations

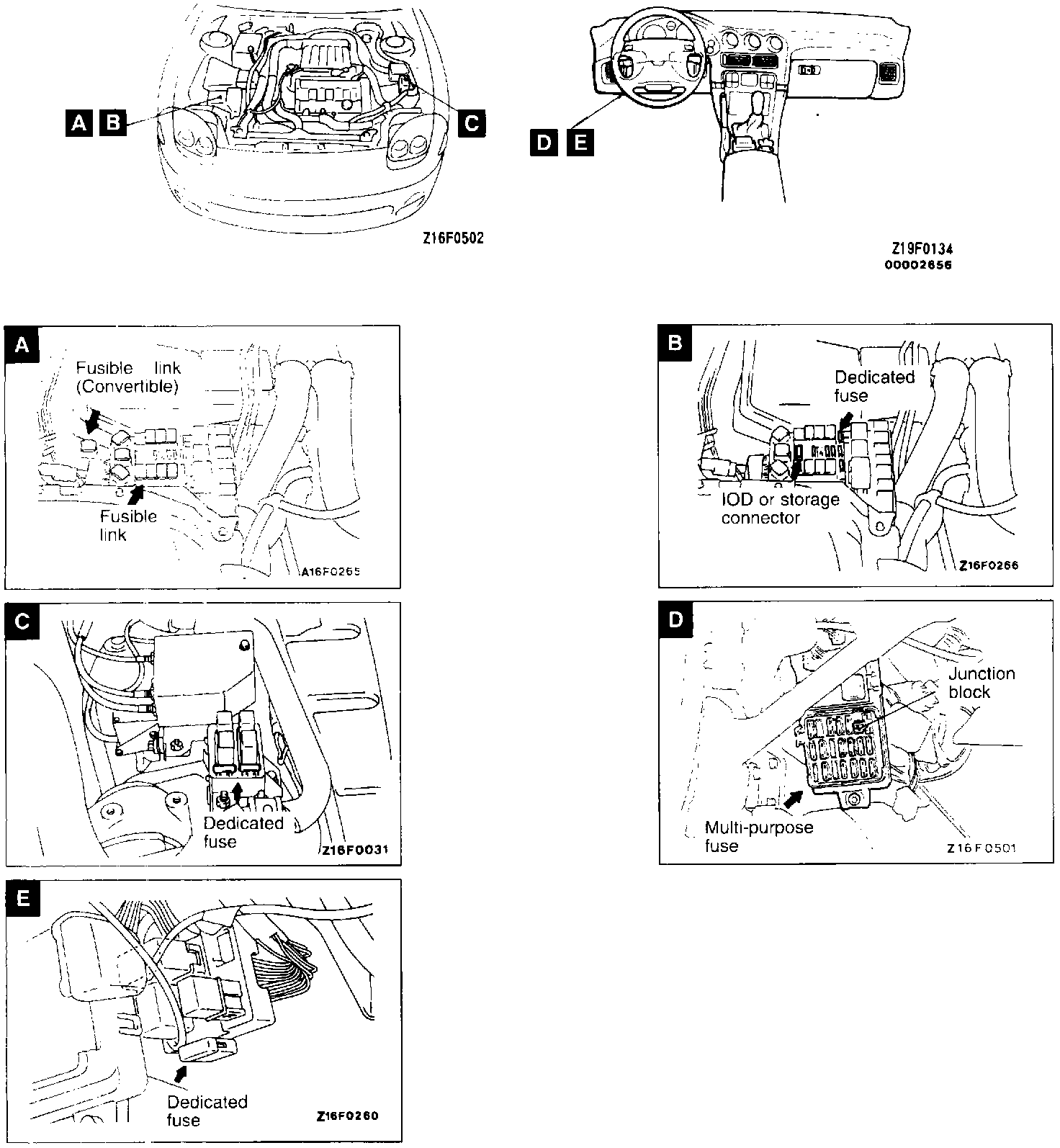

Fusible Link, Fuse And IOD Or Storage Connector:

COMPONENT VIEW
Dedicated fuse # 1 to # 7 B
Dedicated fuse # 8 & # 9 C
Dedicated fuse # 10 E
Fusible Link A
IOD or Storage Connector B
Multi-Purpose Fuse D
