Home >> Mitsubishi >> 1997 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

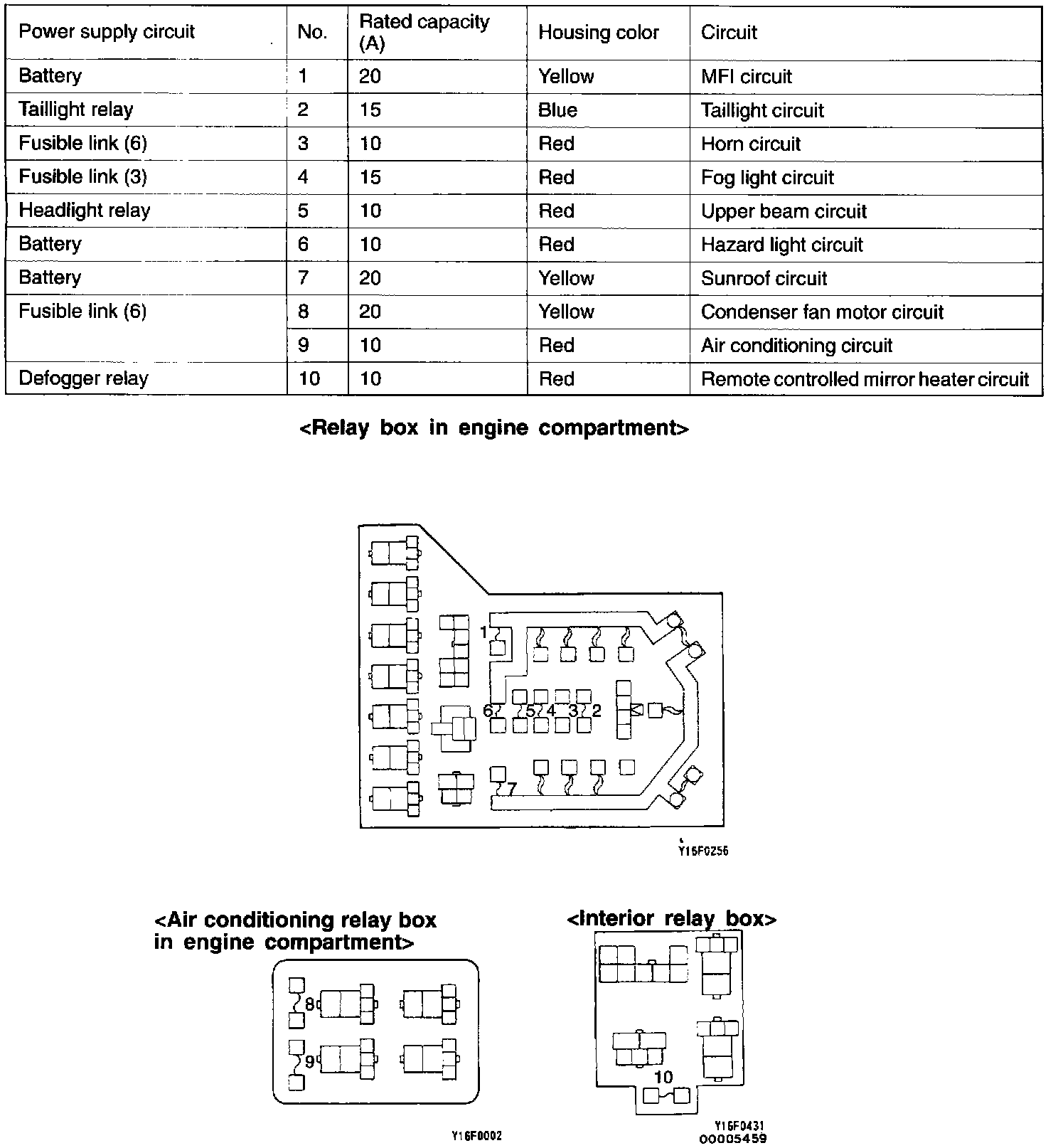

Relay Box: Application and ID

Dedicated Fuse:



Centralized Relay:
