Power Steering Pressure Switch: Locations

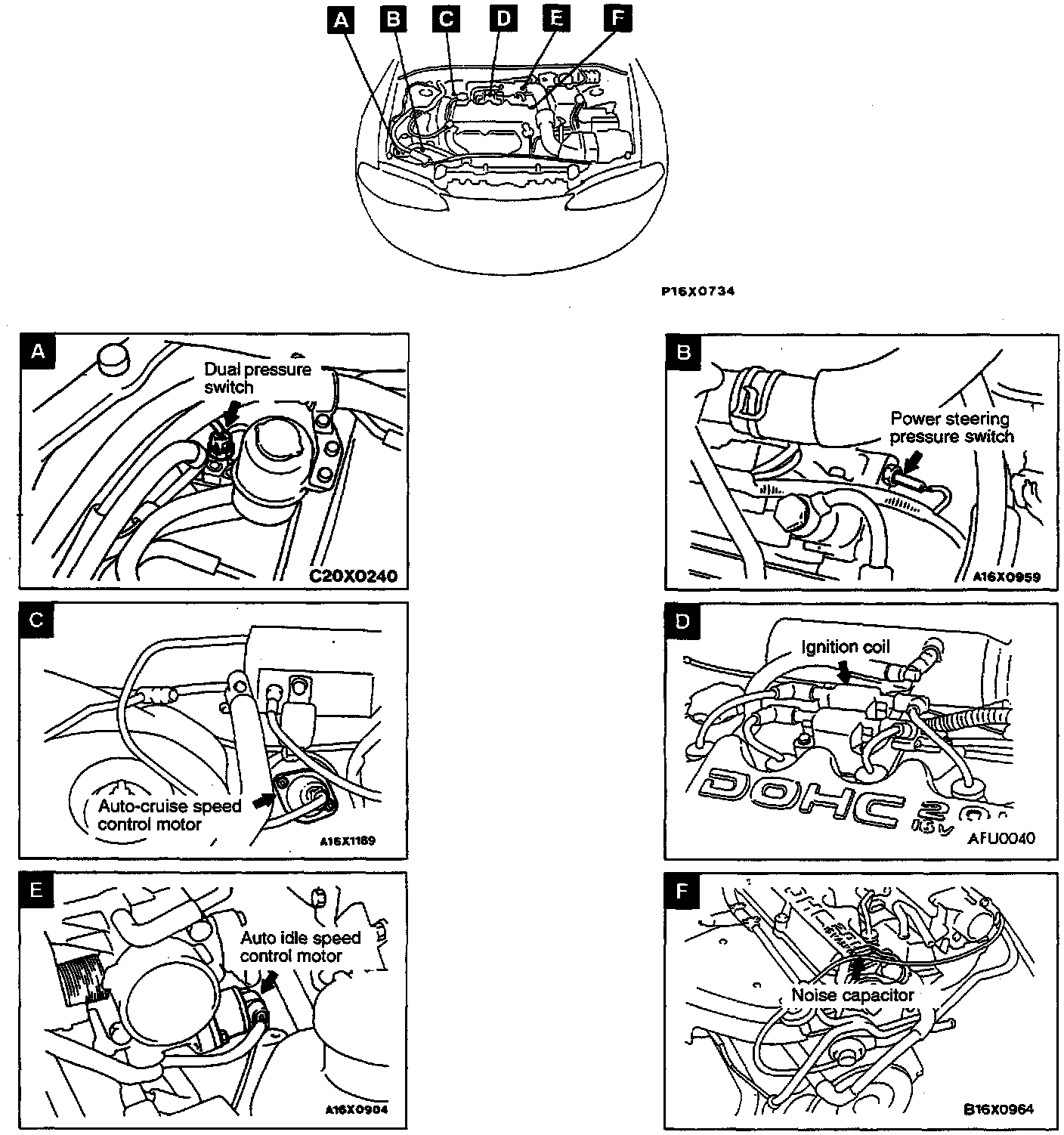

Other Devices Locations Overall View And View A-F:




Name Symbol
Power Steering Pressure Switch B
