Tachometer Connector: Locations

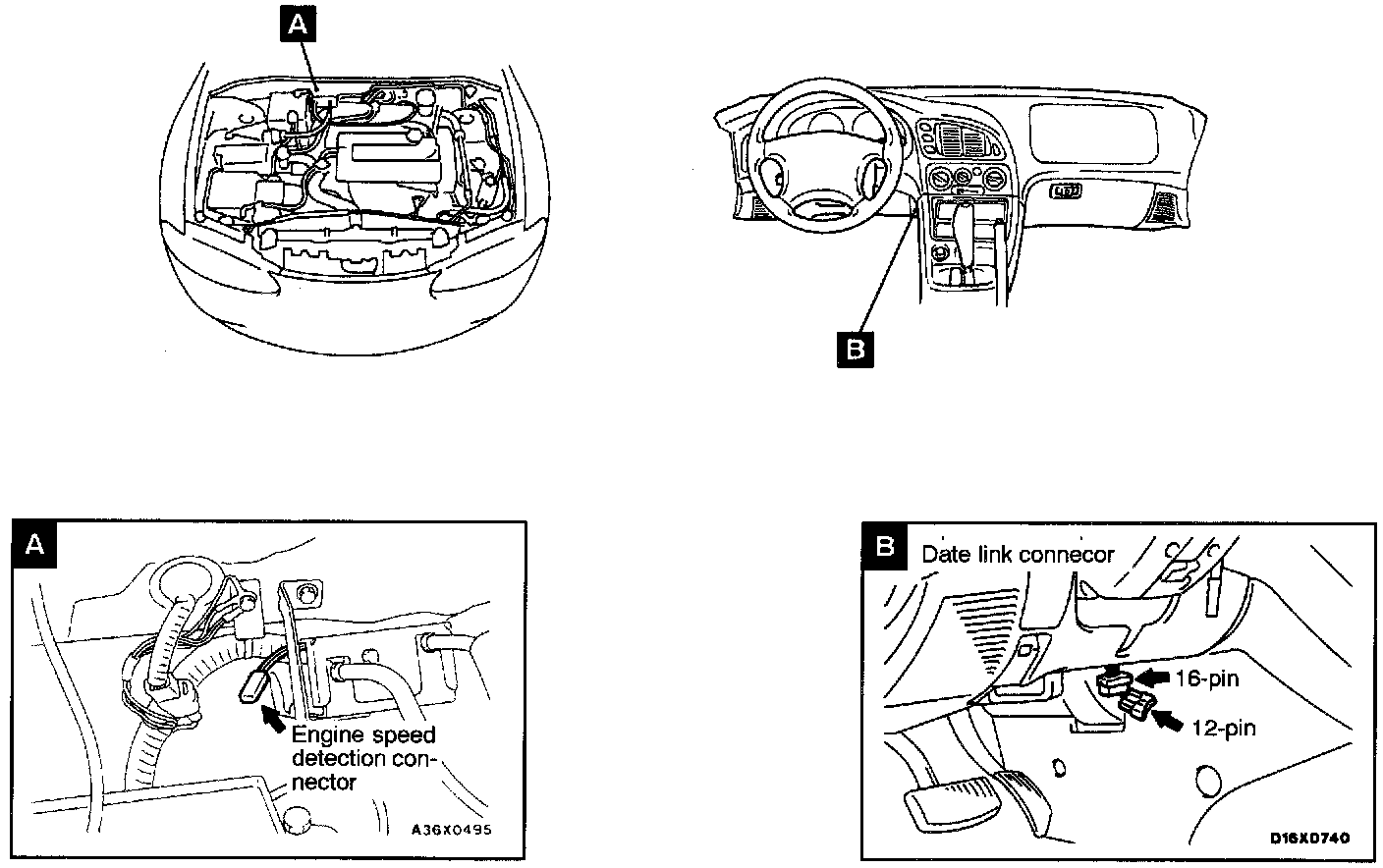

Inspection Terminal Location Overall View And View A-B:






Name Symbol
Engine Speed Detection Connector A
