Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front

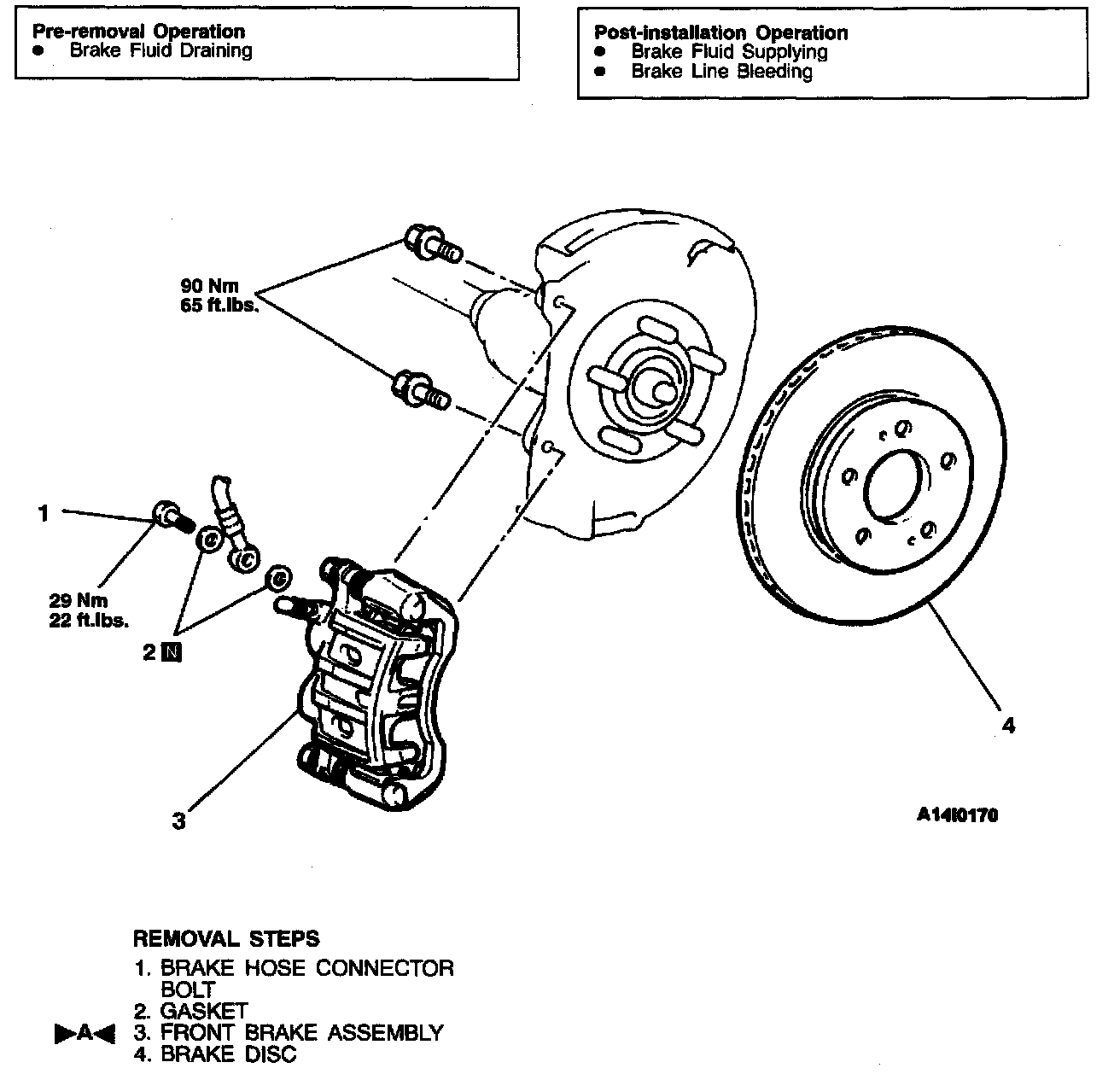

FRONT DISC BRAKE REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Replacement

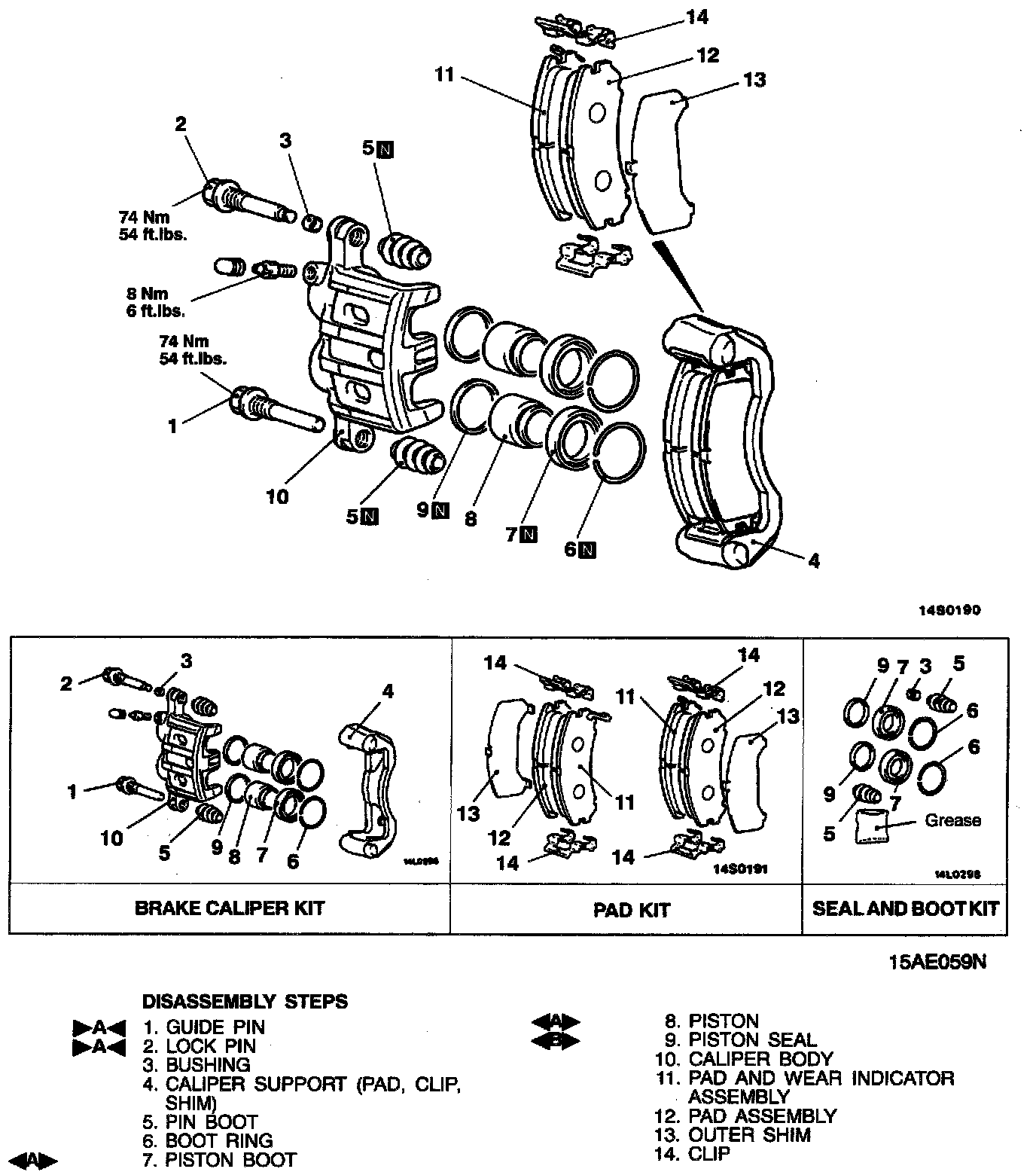

Overhaul
