Vehicle Speed Sensor: Testing and Inspection

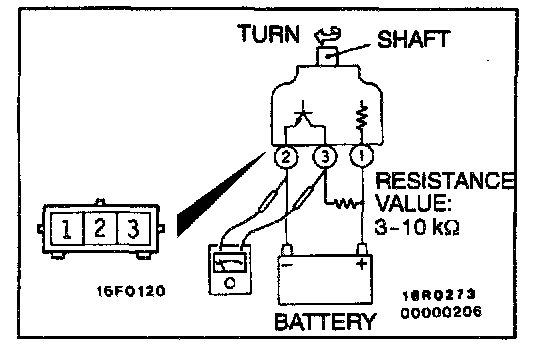

1. Remove the vehicle speed sensor and connect a 3 - 10 kohm resistance as shown in the illustration.
2. Turn the shaft of the vehicle speed sensor and check to be sure that there is voltage between terminals 2-3. (1 turn = 4 pulses)
