Home
>>
Mitsubishi
>>
2001
>>
Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Removal and Installation
Removal and Installation

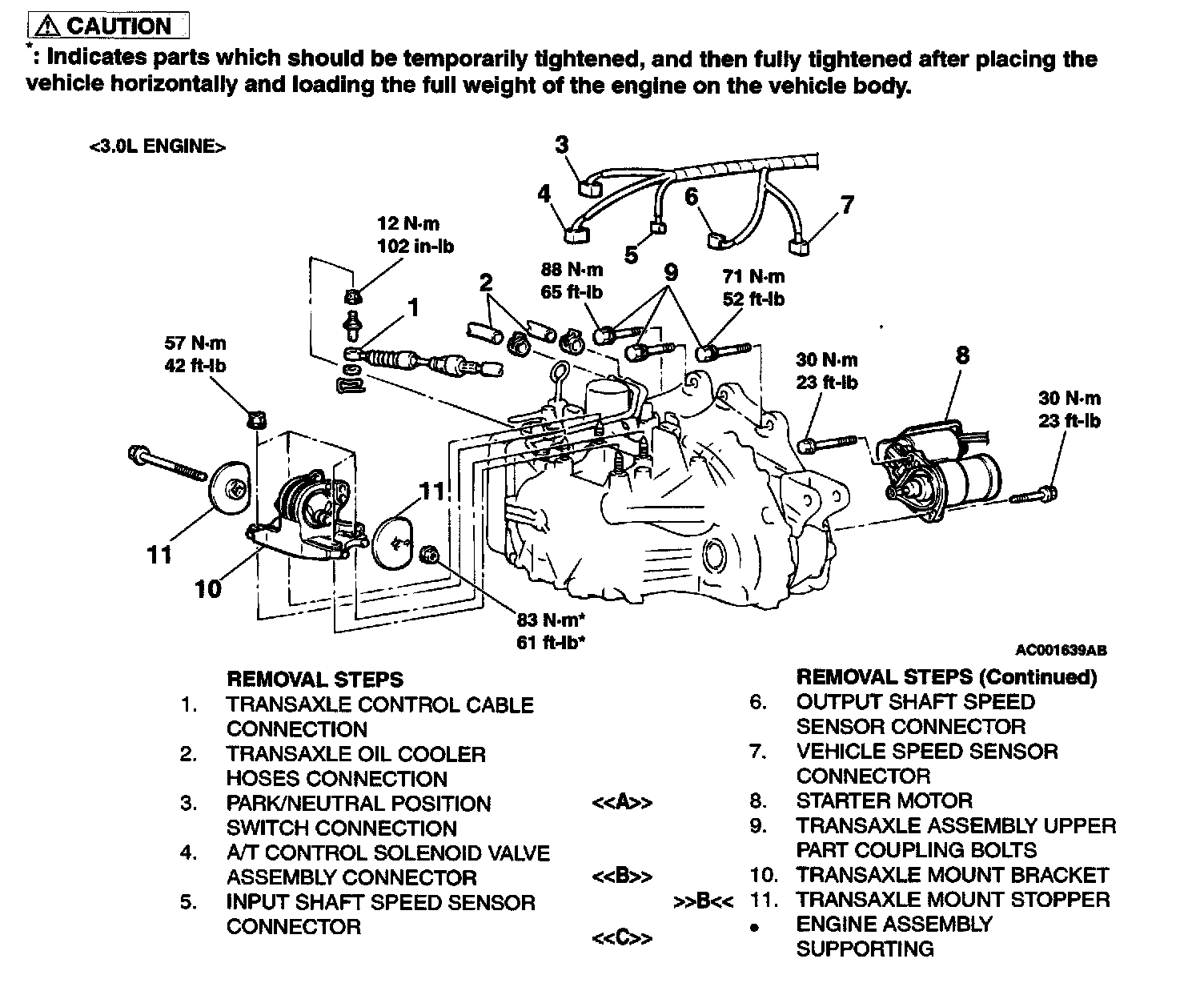

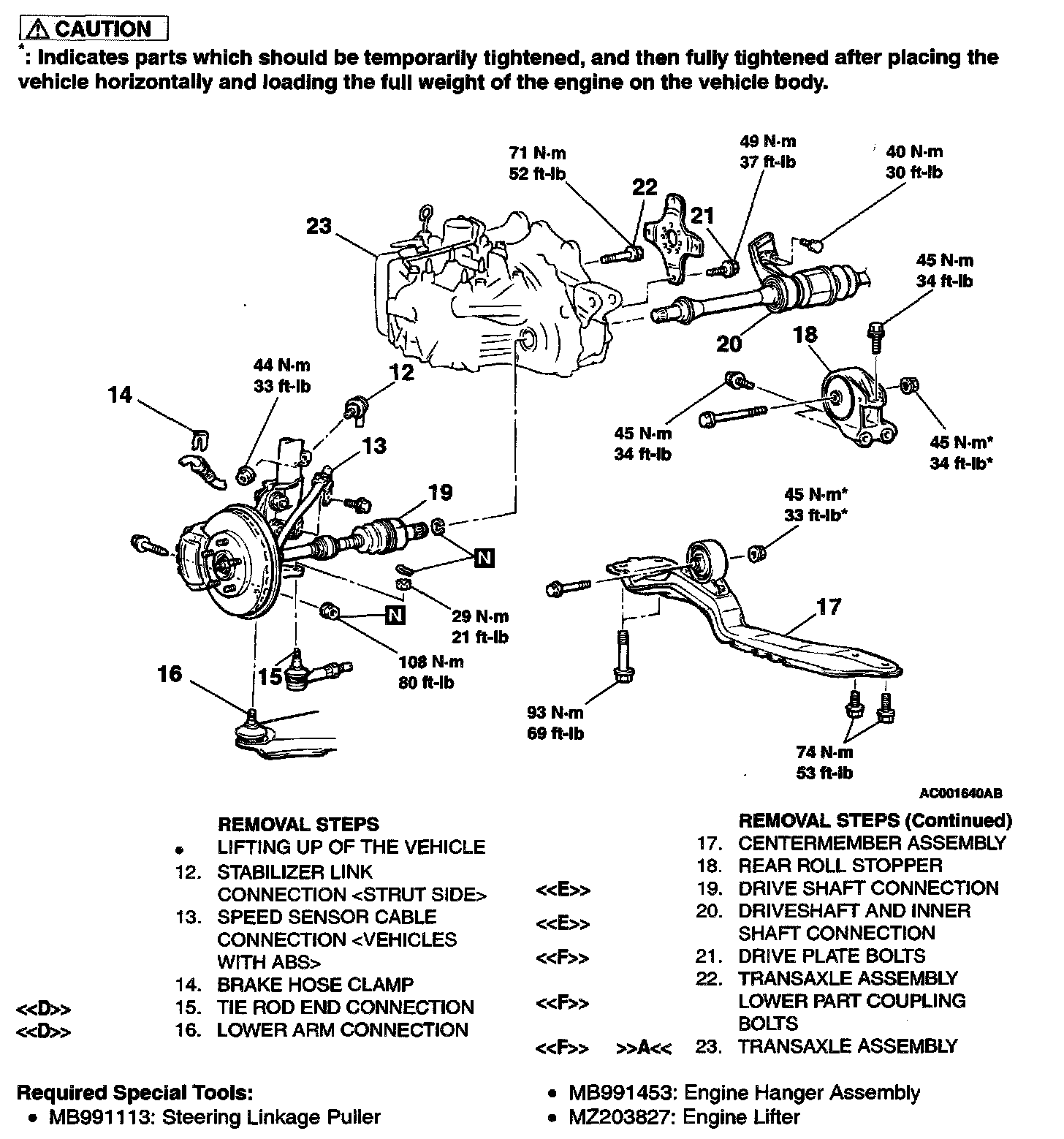

TRANSAXLE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
