EATCS-ECU

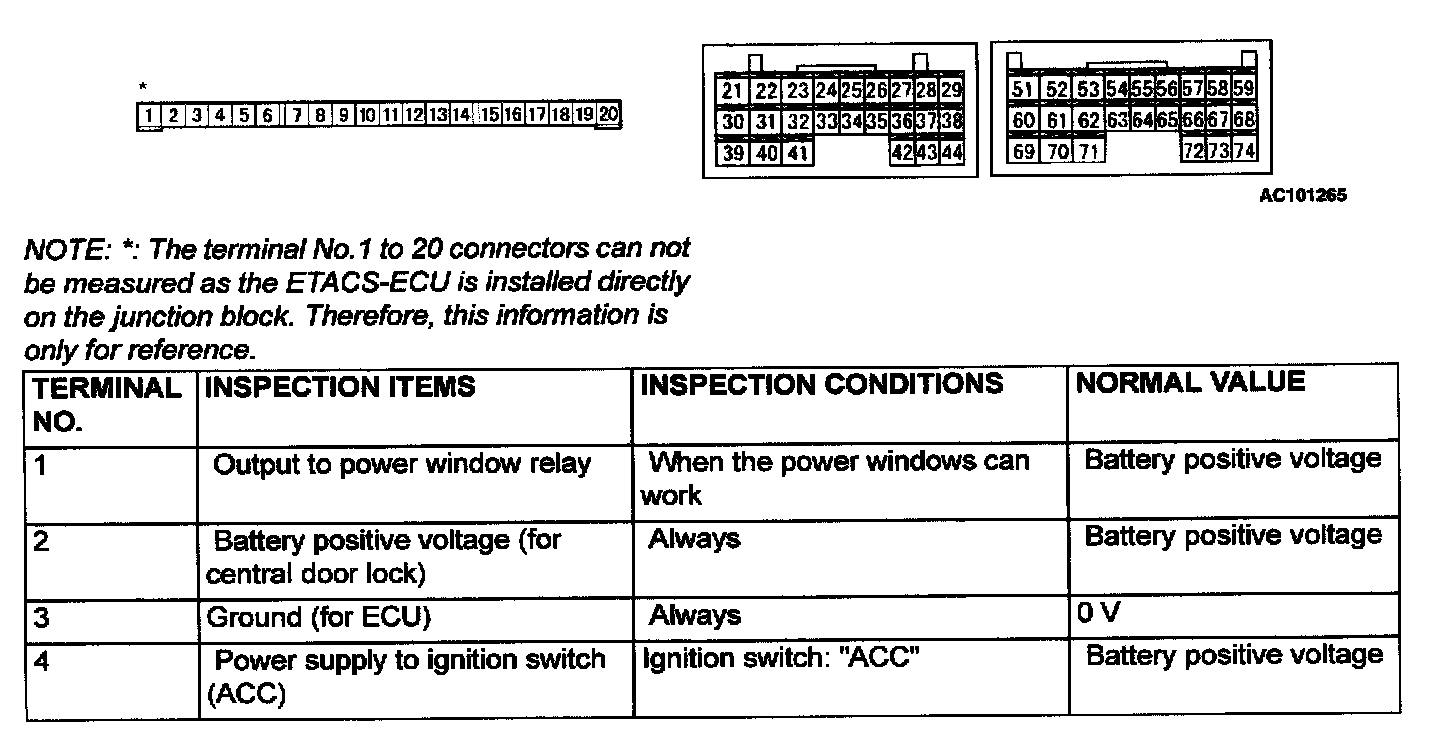

ETACS-ECU Connector View And Terminals Part 1:

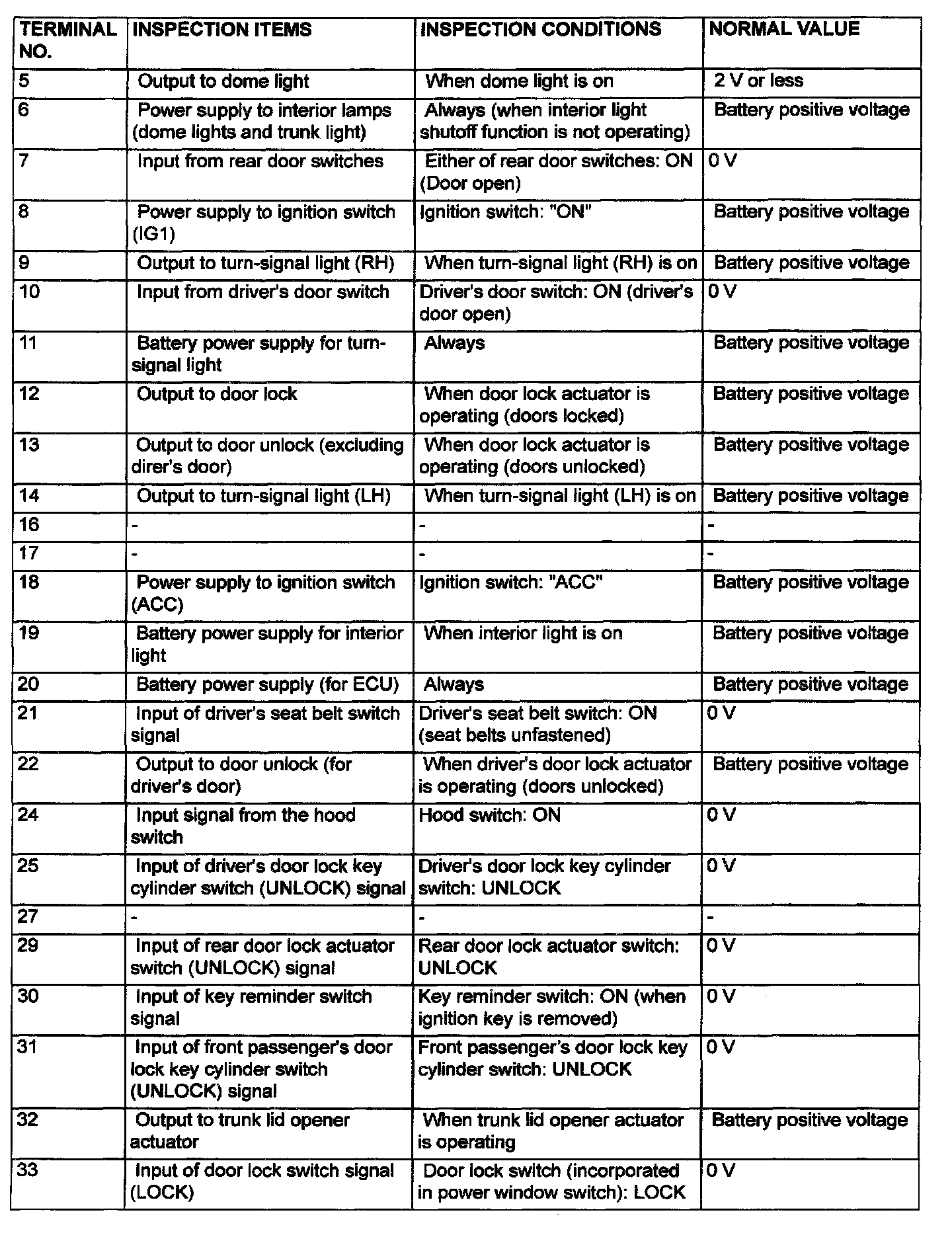

Terminals Part 2:

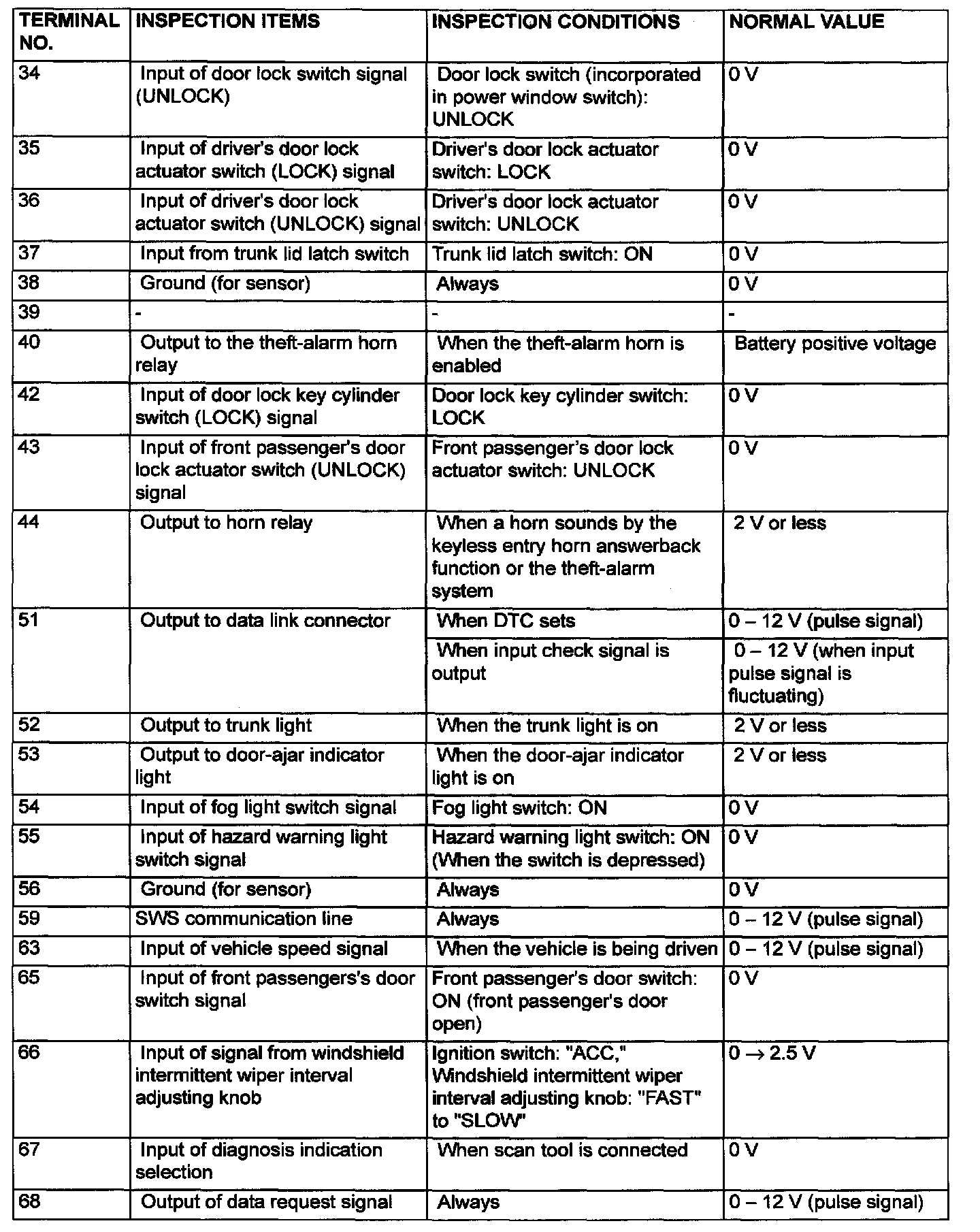

Terminals Part 3:

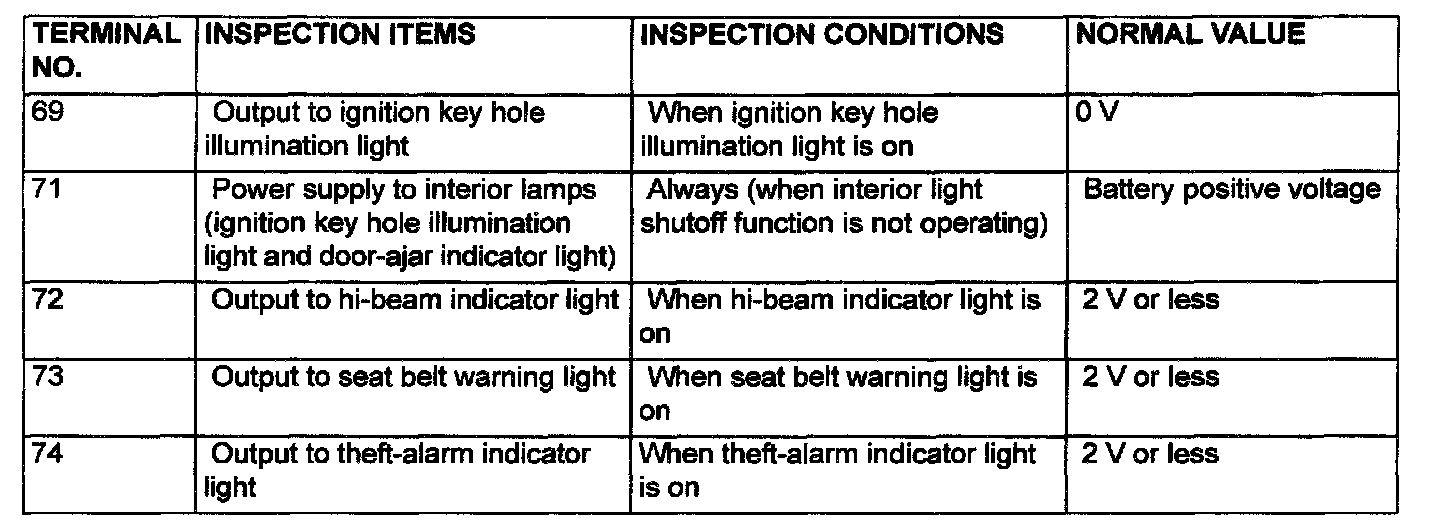

Terminals Part 4:
