Overhaul

DISASSEMBLY AND REASSEMBLY

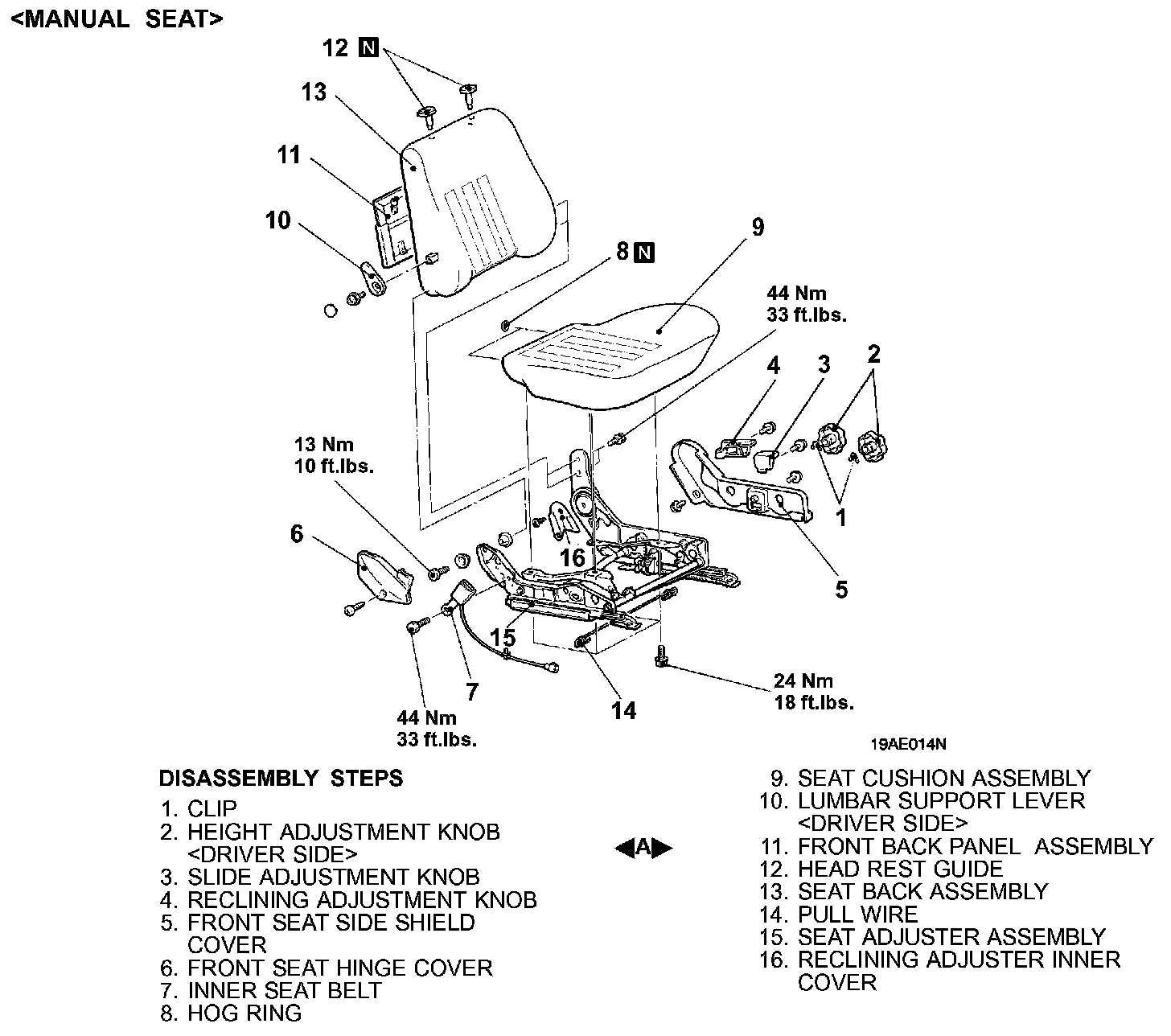

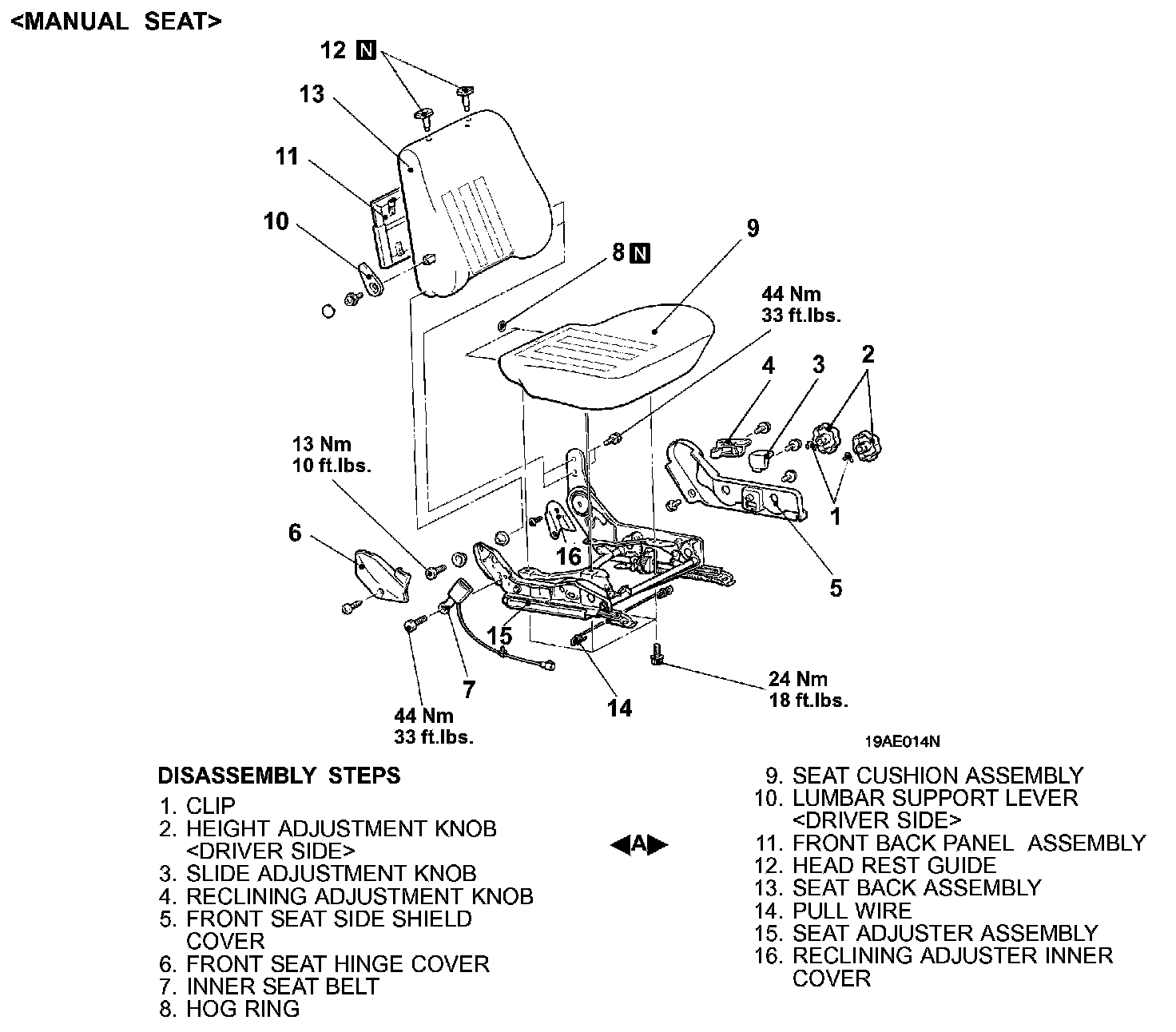

[MANUAL SEAT]

Disassembly Steps 1-16:

DISASSEMBLY SERVICE POINT

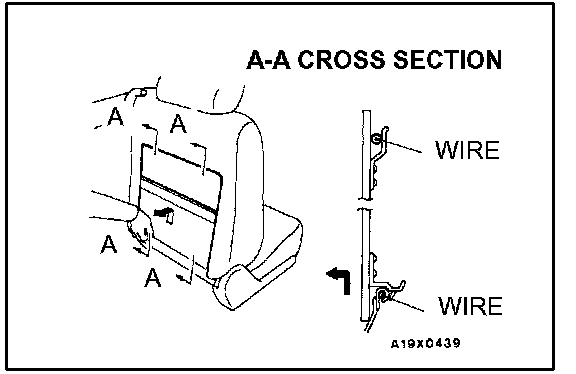

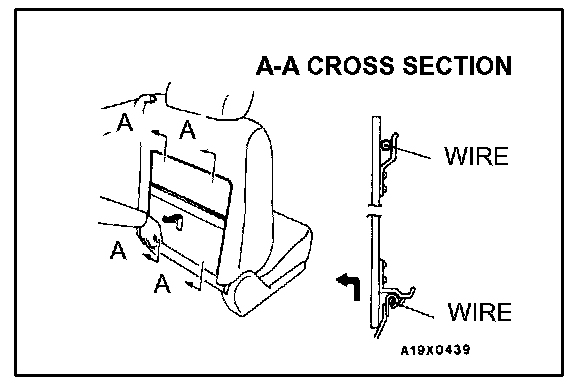

[[A]] FRONT-BACK PANEL ASSEMBLY REMOVAL






Lift the front-back panel assembly upwards, and pull the lower portion towards you to remove.

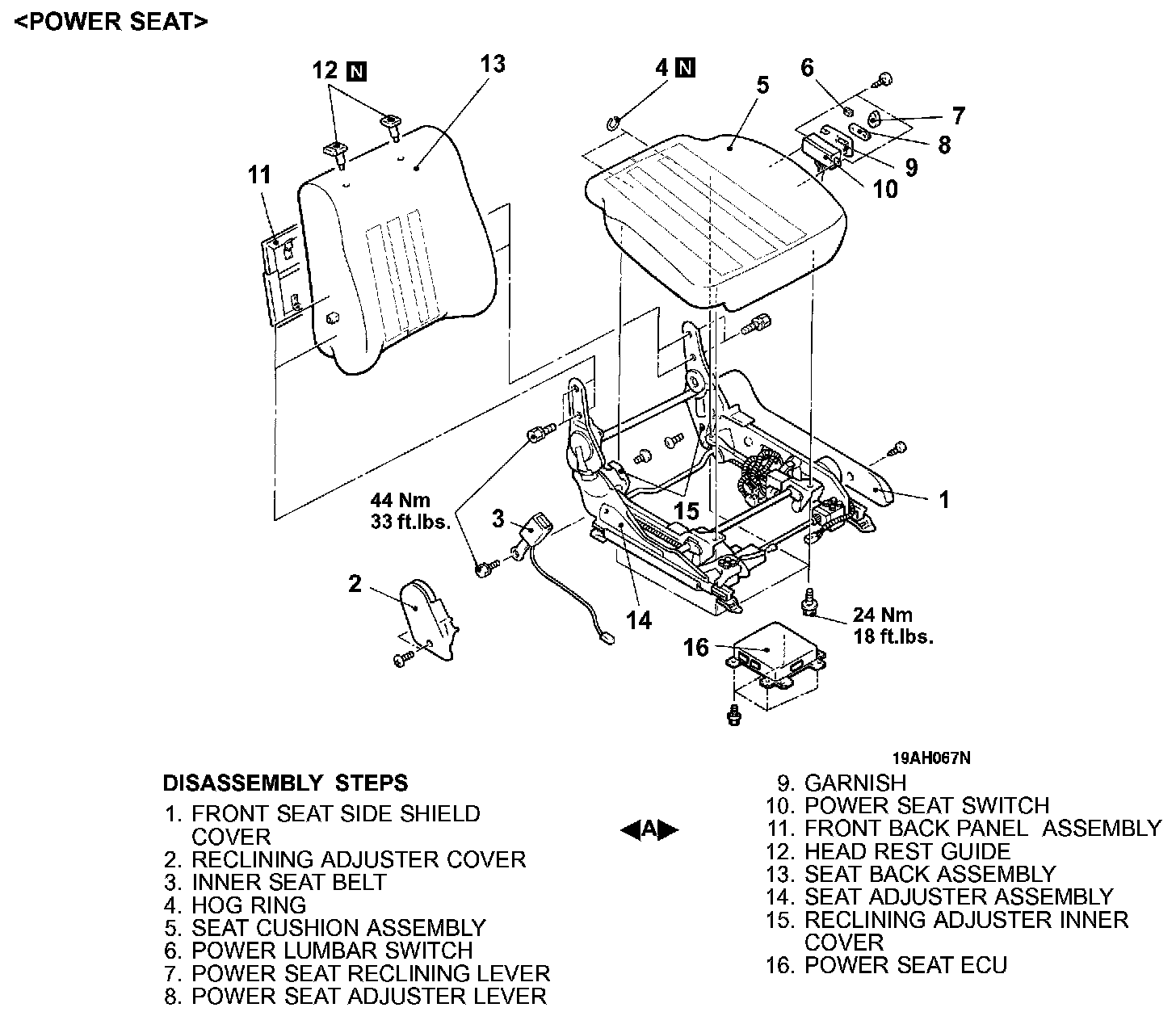

[POWER SEAT]

Disassembly Steps 1-16:

DISASSEMBLY SERVICE POINT

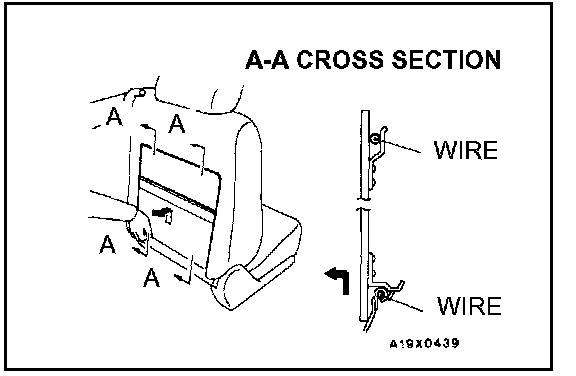

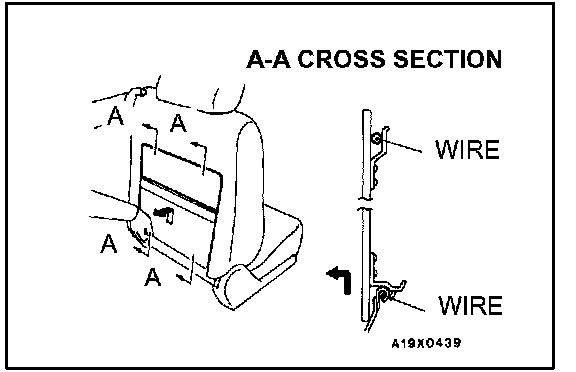

[[A]] FRONT-BACK PANEL ASSEMBLY REMOVAL






Lift the front-back panel assembly upwards, and pull the lower portion towards you to remove.
