Assist-ECU

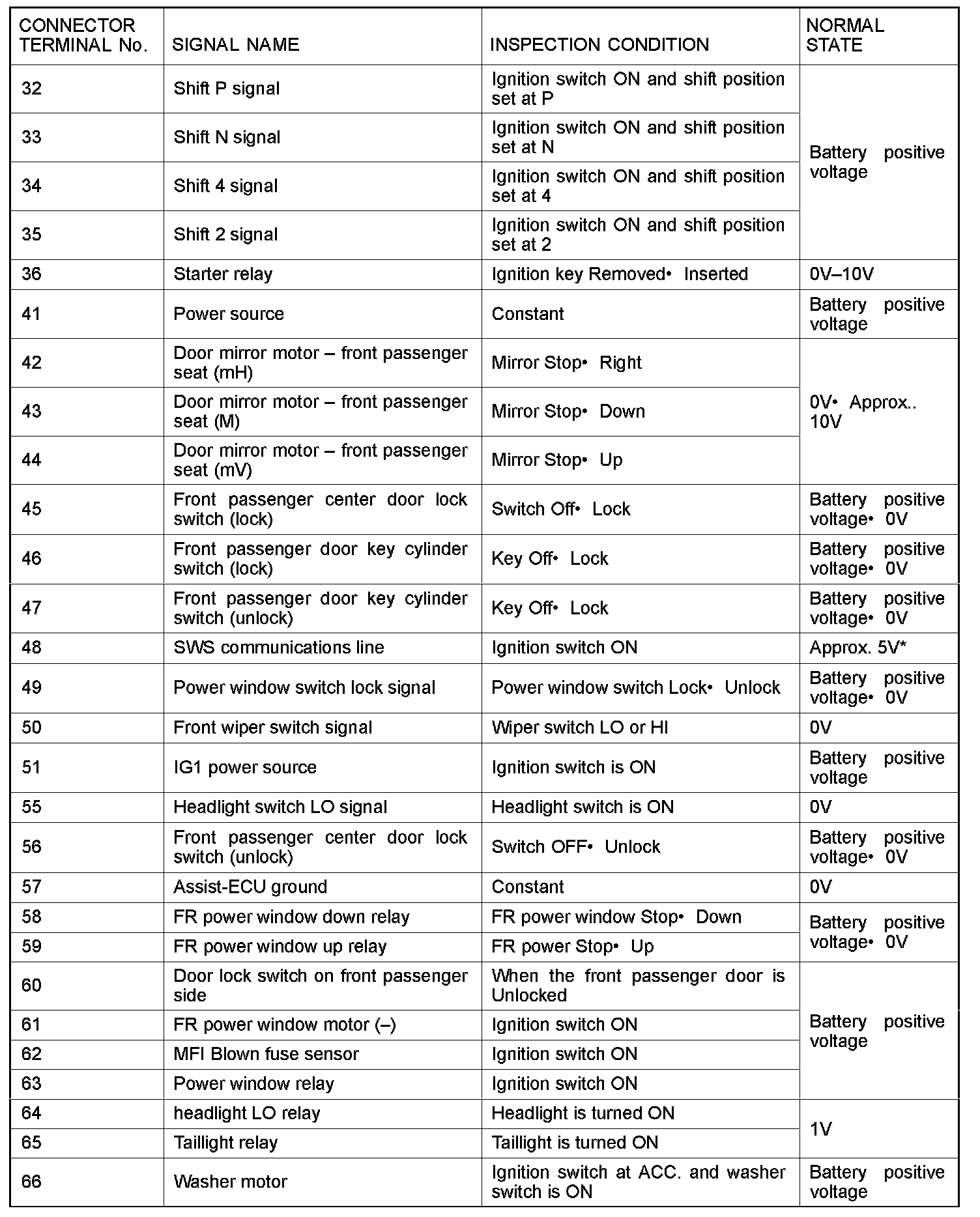

ASSIST-ECU Terminal Check Terminal - Part 1:

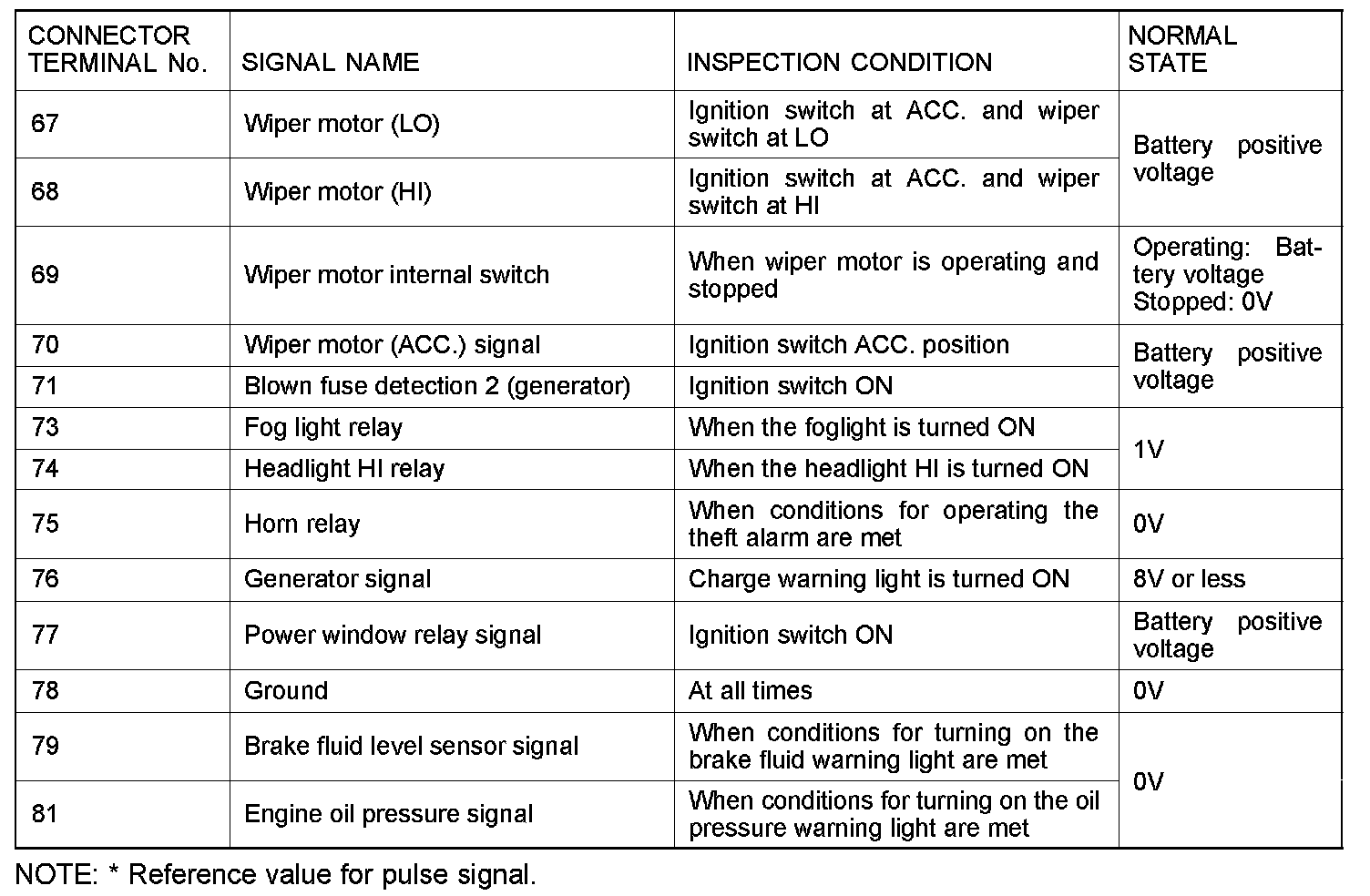

ASSIST-ECU Terminal Check - Part 2:

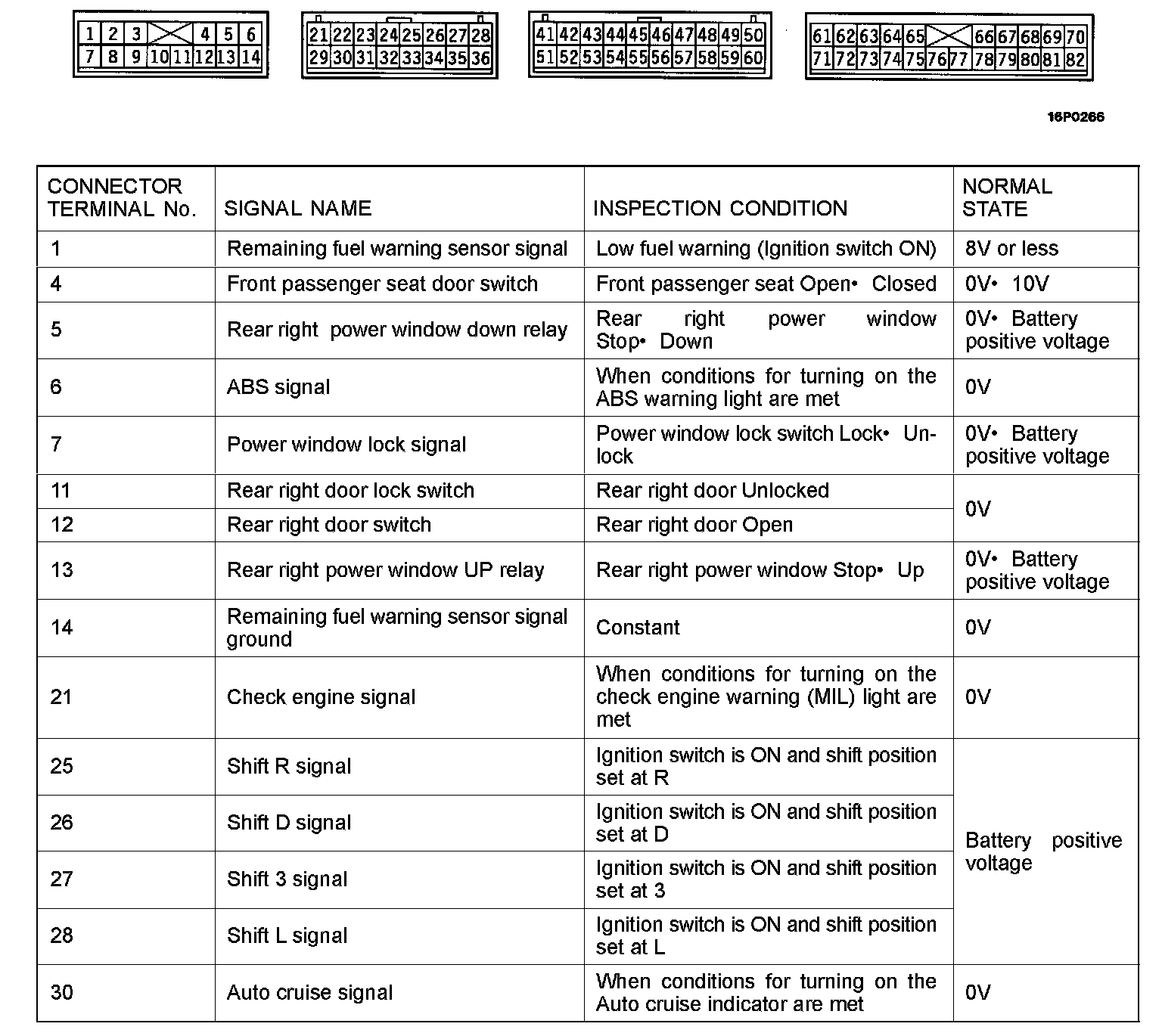

ASSIST-ECU Terminal Check Terminal - Part 3:
