Instrument Panel ECU

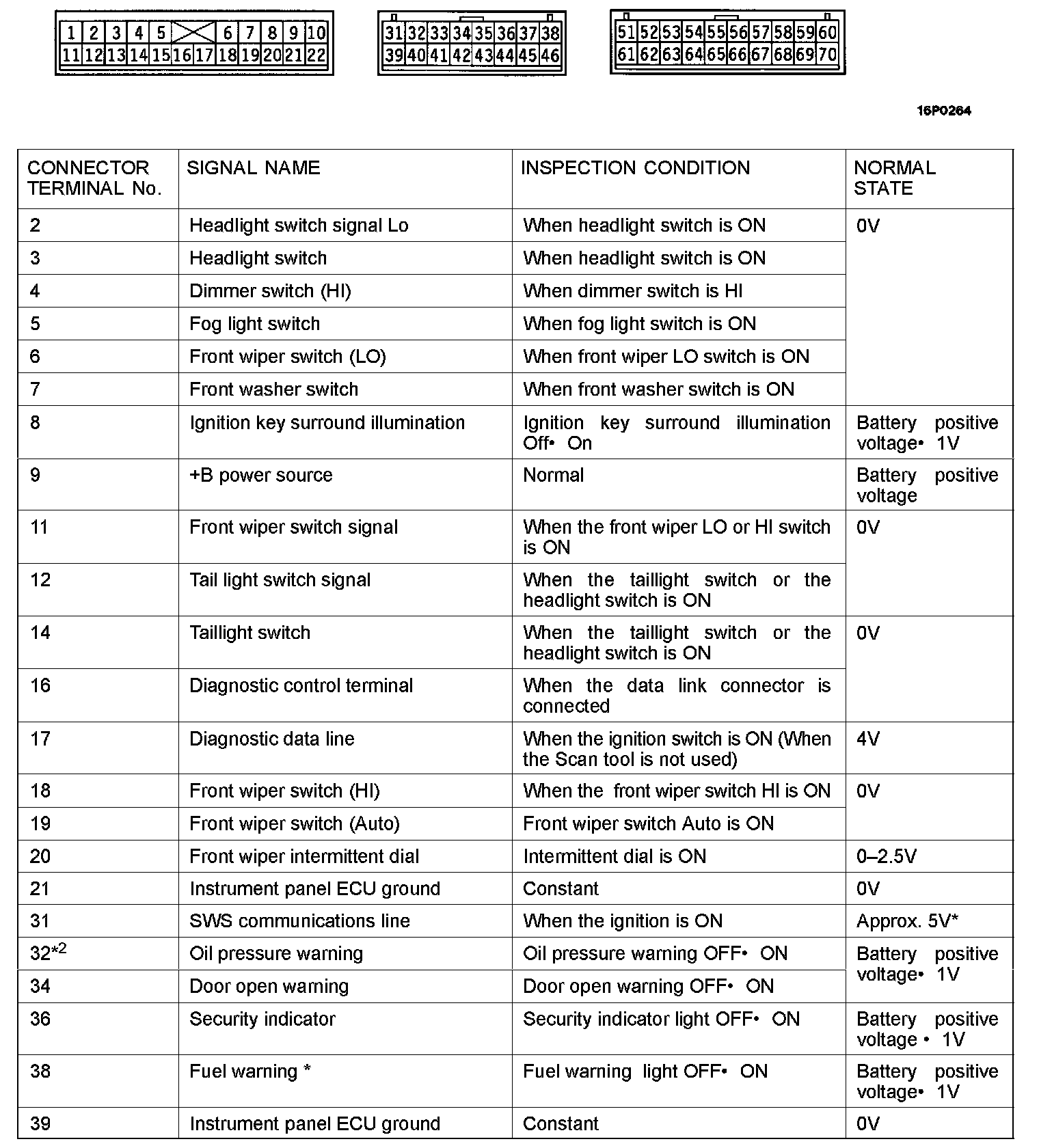

Instrument Panel ECU Terminal Check Terminal - Part 1:

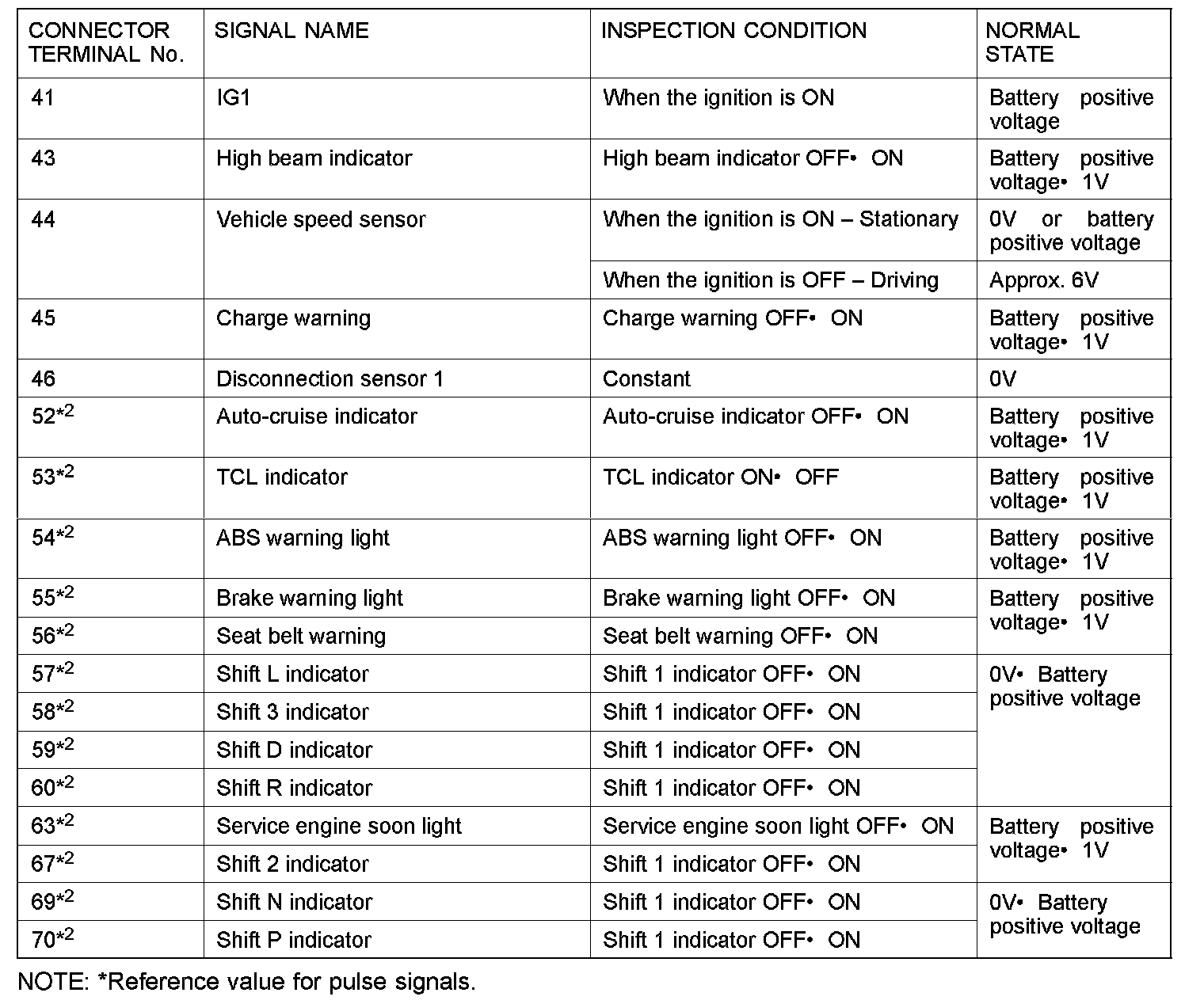

Instrument Panel ECU Terminal Check Terminal - Part 2:
