Memory Power Seat ECU
Memory Power Seat ECU

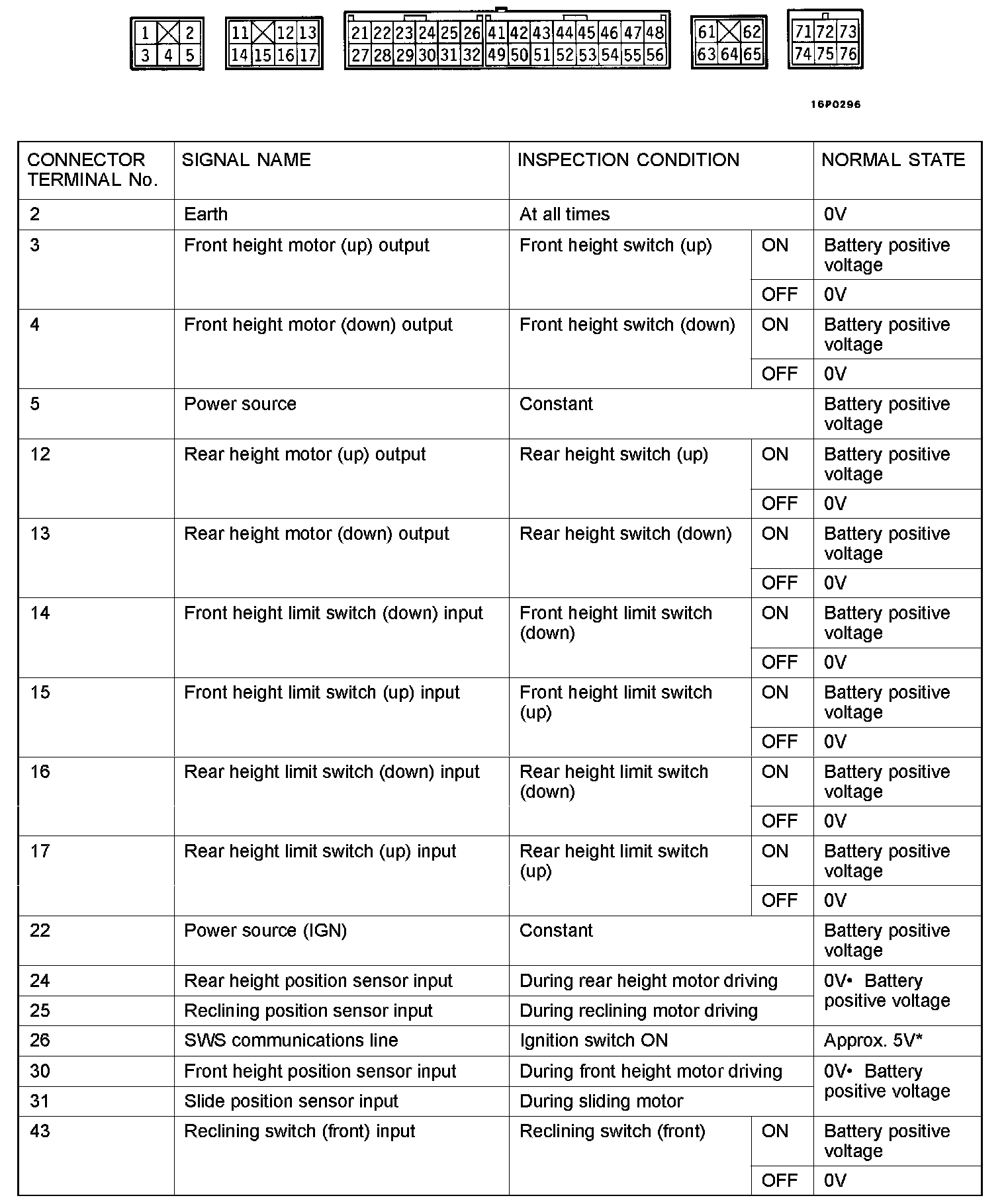

Memory Power Seat ECU Terminal Check - Part 1:

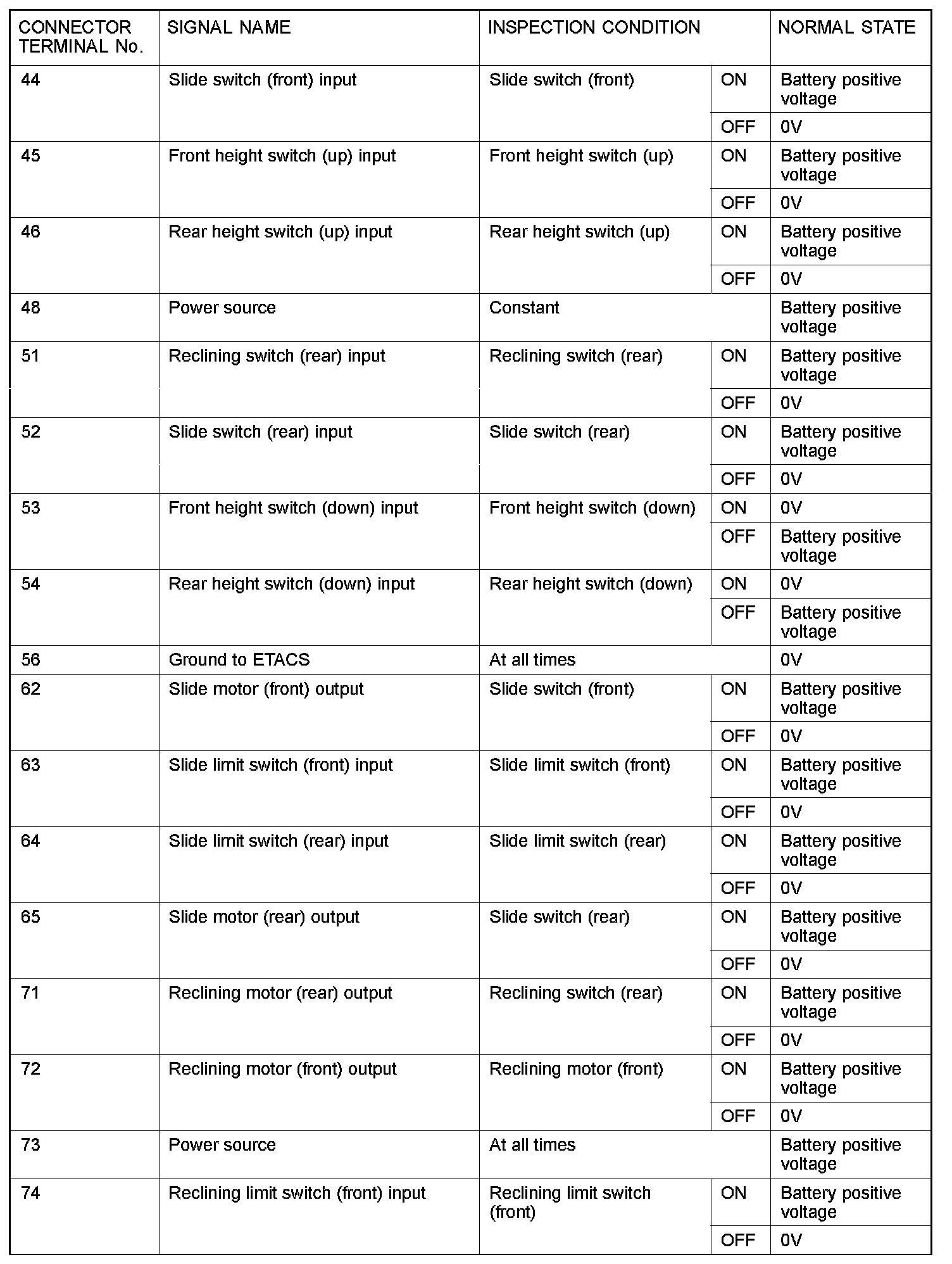

Memory Power Seat ECU Terminal Check - Part 2:
Memory Power Seat ECU Terminal Check - Part 3:
