Overhaul

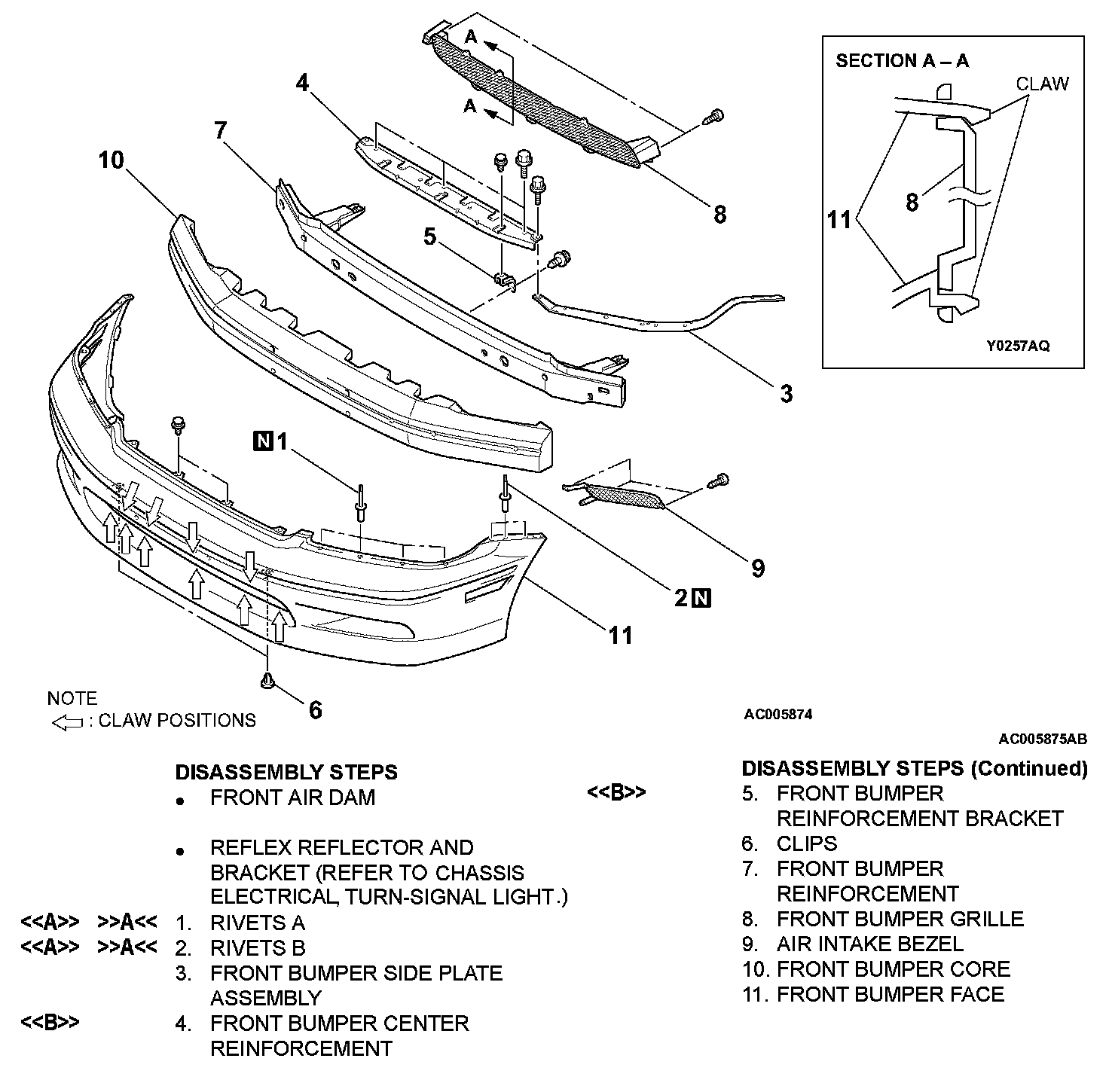

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-11:
Required Special Tool:
- MB990784: Ornament Remover
DISASSEMBLY SERVICE POINTS
[[A]] RIVETS A/RIVETS B REMOVAL

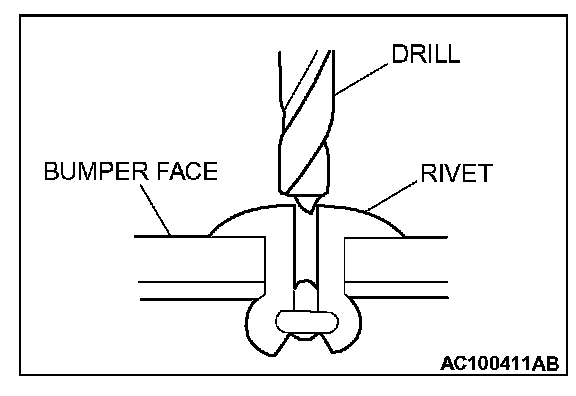

Use a drill [4.0 mm (0.16 inch)] to make a hole in the rivet to break it, and then remove the rivet.
[[B]] FRONT BUMPER CENTER REINFORCEMENT/ FRONT BUMPER REINFORCEMENT BRACKET REMOVAL

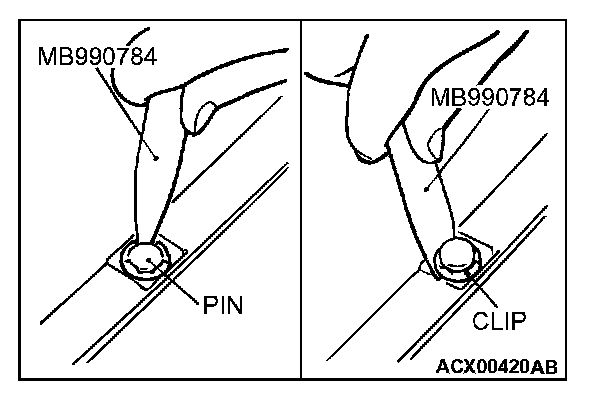

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
ASSEMBLY SERVICE POINT
]]A[[ RIVETS B/RIVETS A INSTALLATION

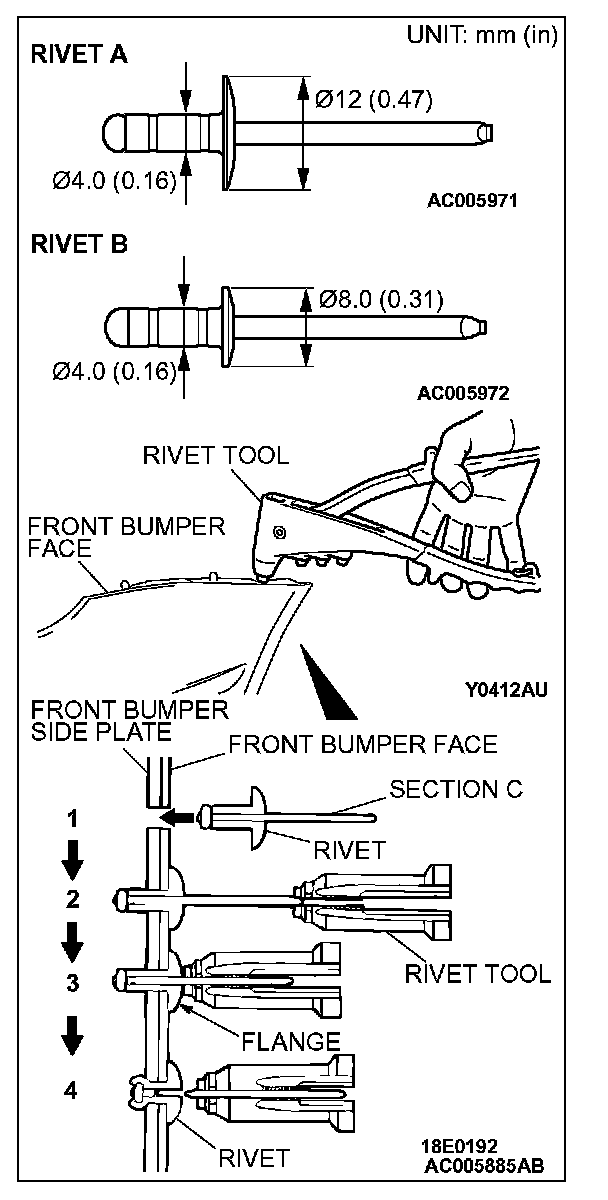

1. Insert rivets A and rivets B into the front bumper face and front bumper side plate.
2. Insert "C" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "C" is cut and the rivet is held in position.
