Condenser HVAC: Service and Repair

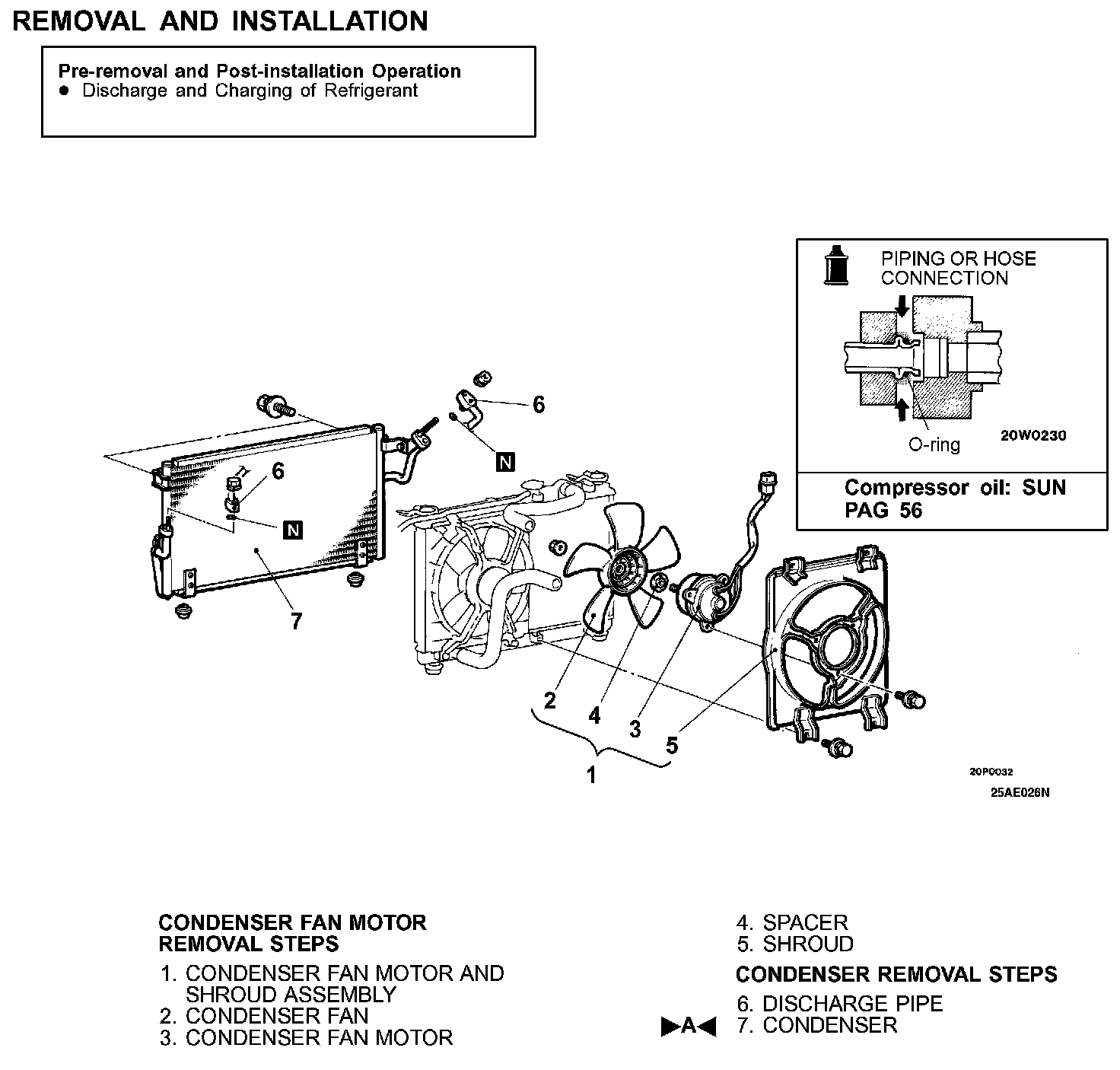

CONDENSER AND CONDENSER FAN MOTOR




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>A< CONDENSER INSTALLATION
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil and install it (to the vehicle).

Compressor oil: SUN PAG 56
Quantity: 15 cu.cm (0.5 fl.oz.)
