Coolant Temperature Sensor / Switch HVAC: Service and Repair

HEATER WATER TEMPERATURE SENSOR

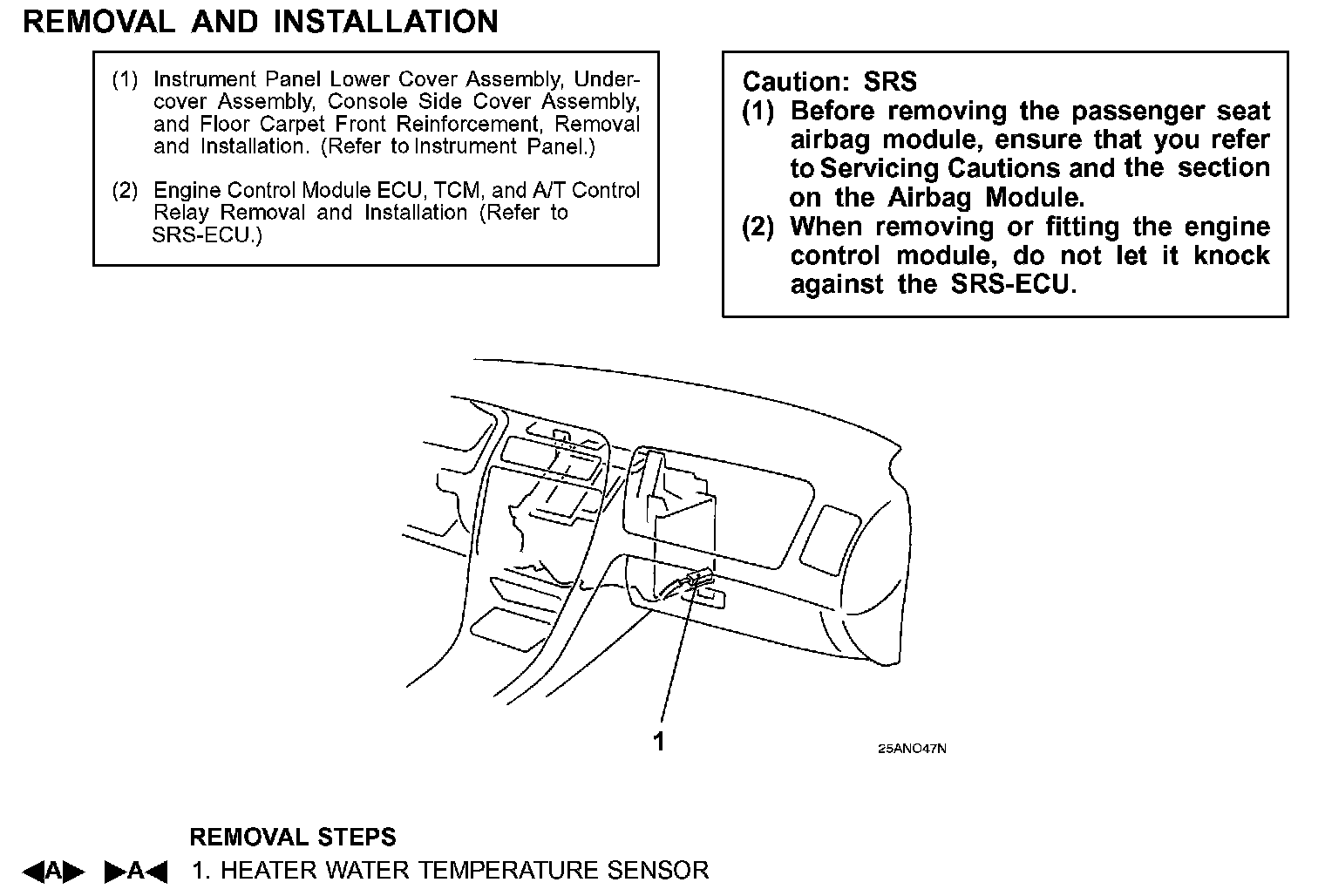

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

HEATER WATER TEMPERATURE SENSOR REMOVAL
Pull the heater water temperature sensor from the bracket at the base of the heater unit.

INSTALLATION SERVICE POINT

>A< HEATER WATER TEMPERATURE SENSOR INSTALLATION
Insert the heater water temperature sensor into the mounting bracket at the base of the heater unit.
