Assist-ECU

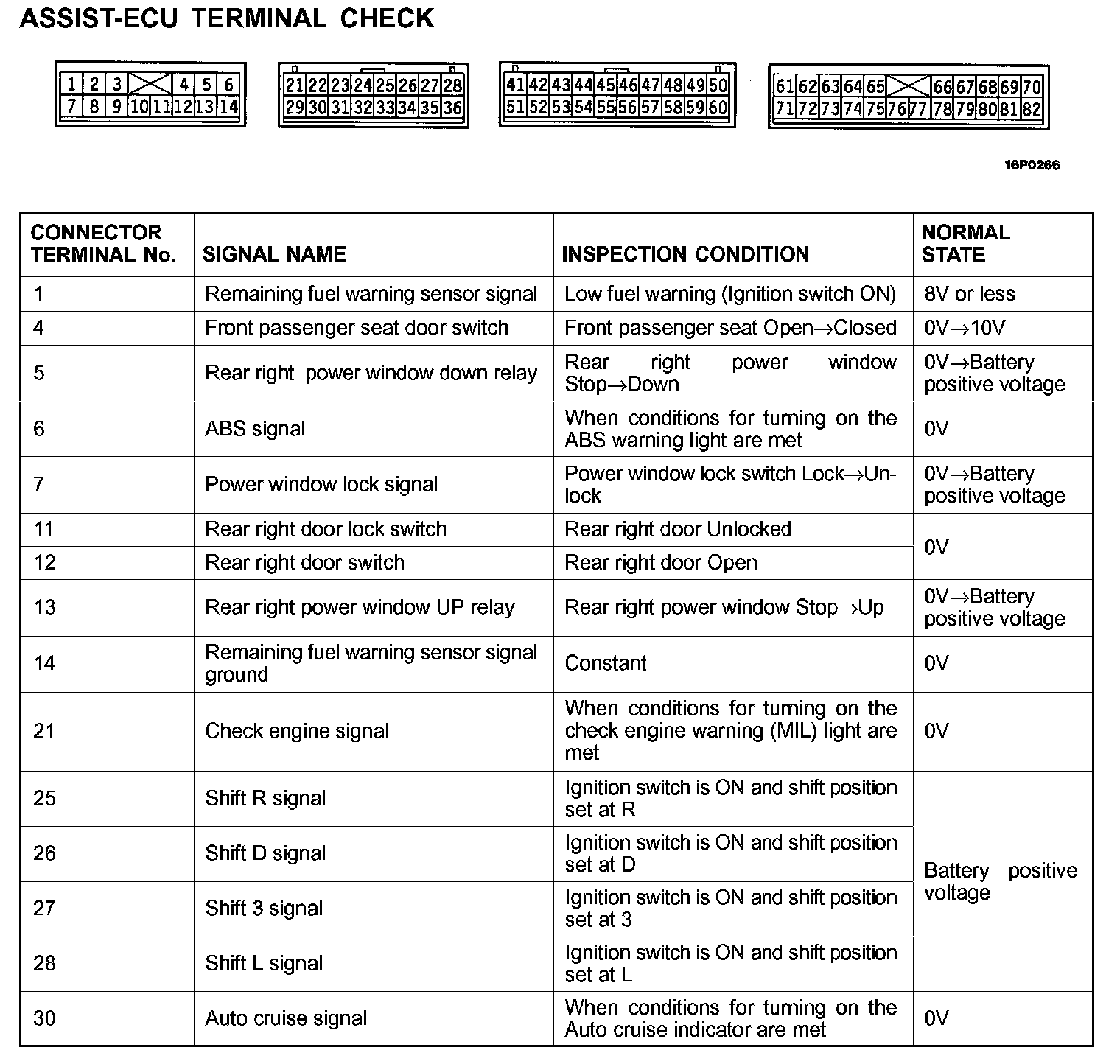

Assist-ECU Terminal Check - Part 1:

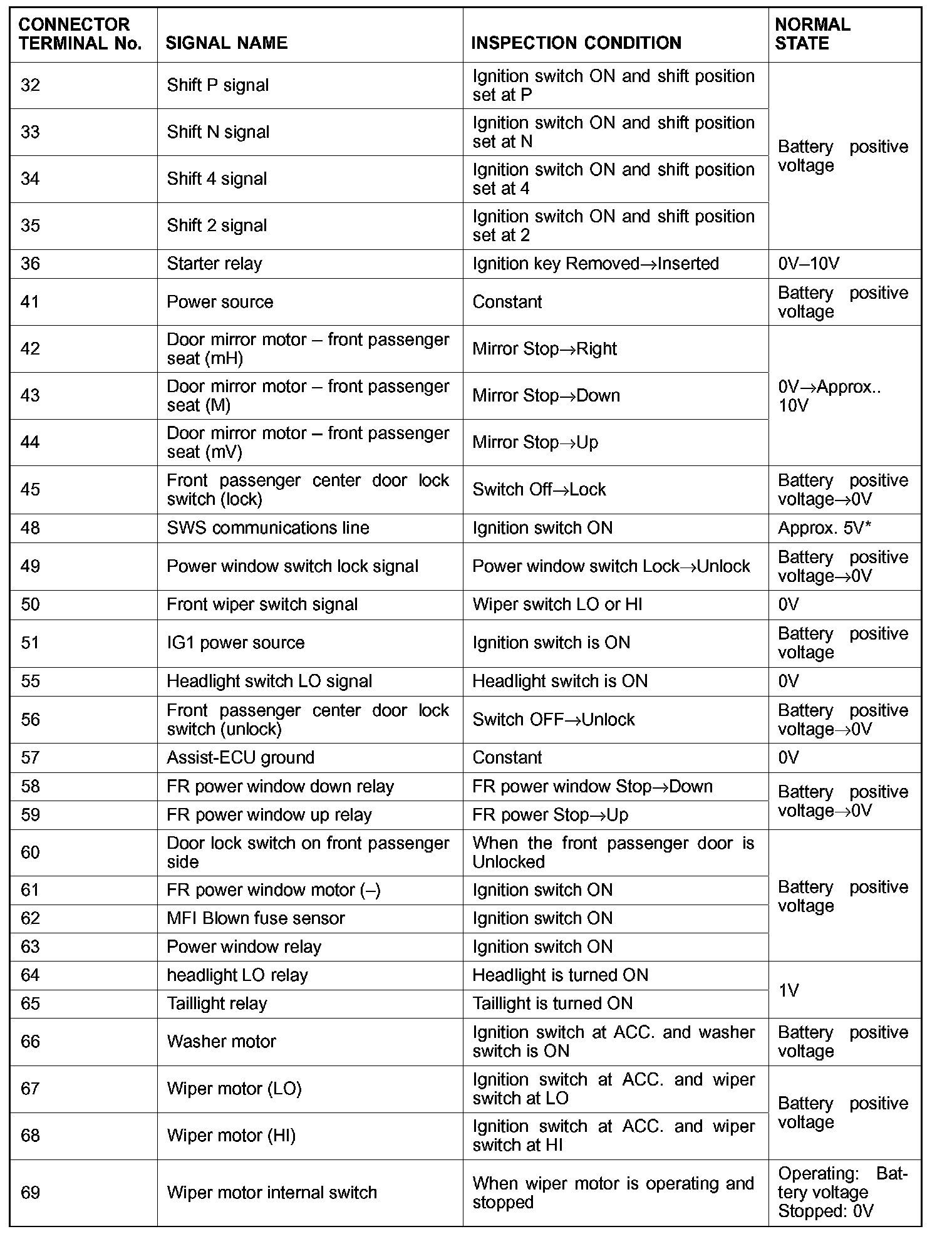

Assist-ECU Terminal Check - Part 2:

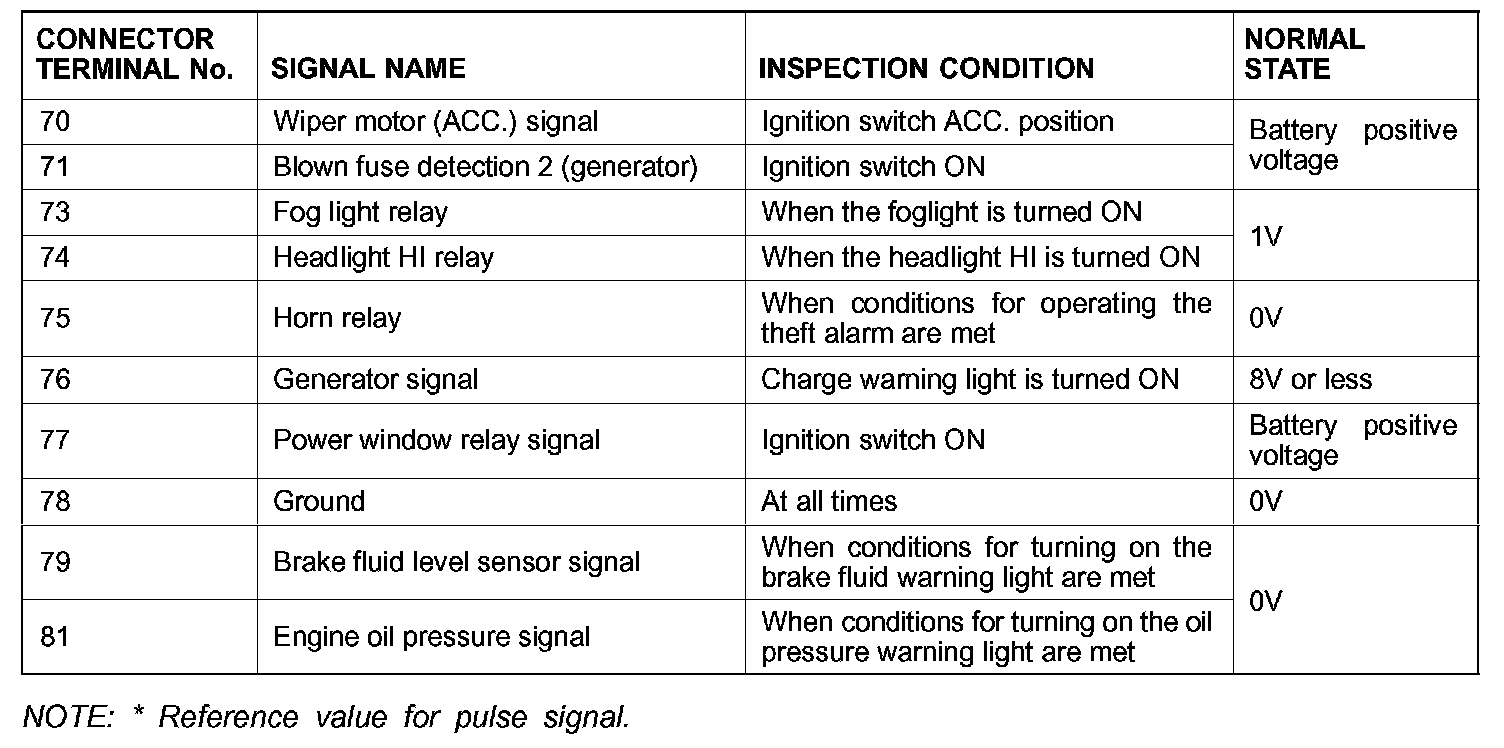

Assist-ECU Terminal Check - Part 3:
