Instrument Panel ECU

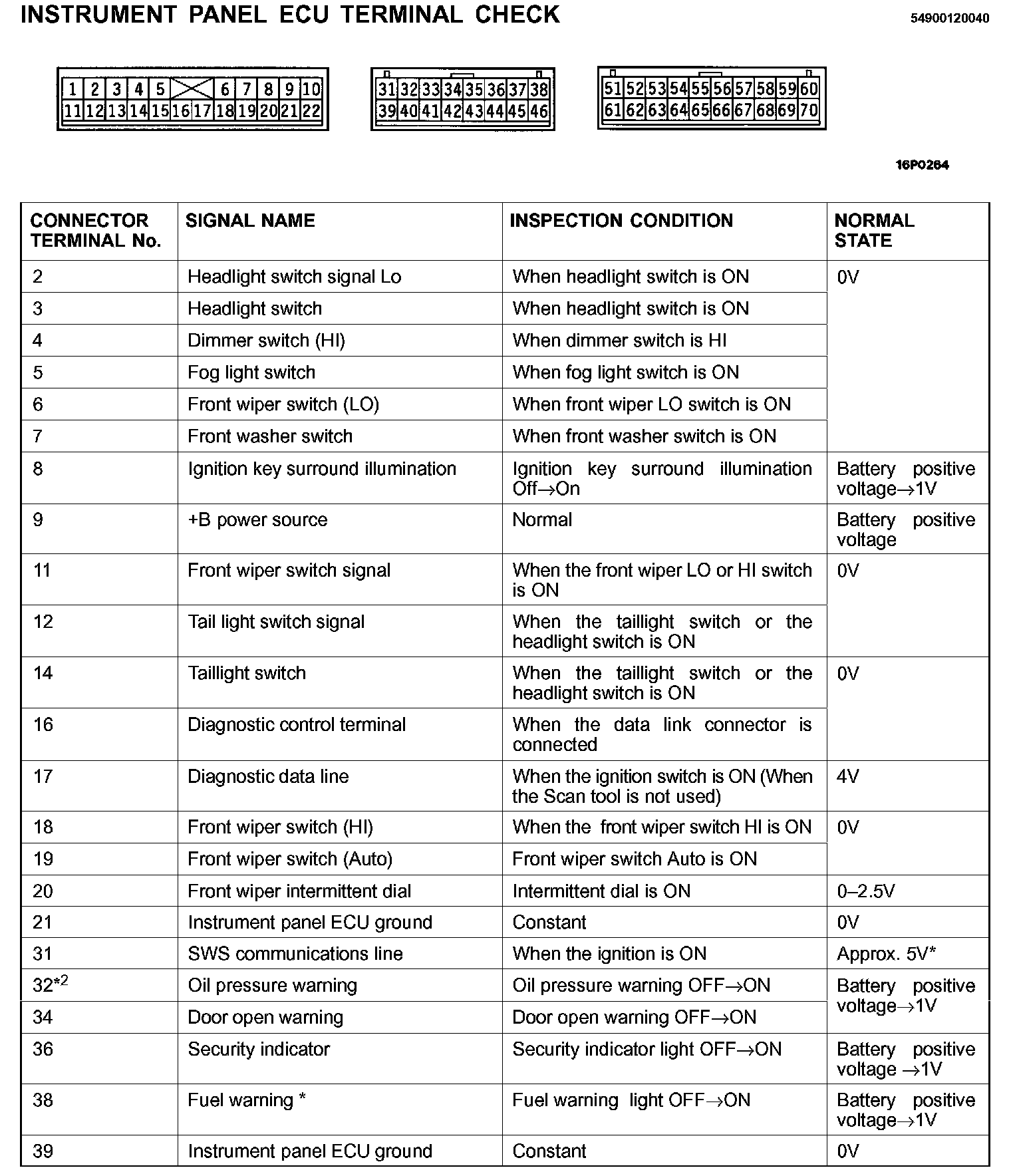

Instrument Panel ECU Terminal Check - Part 1:

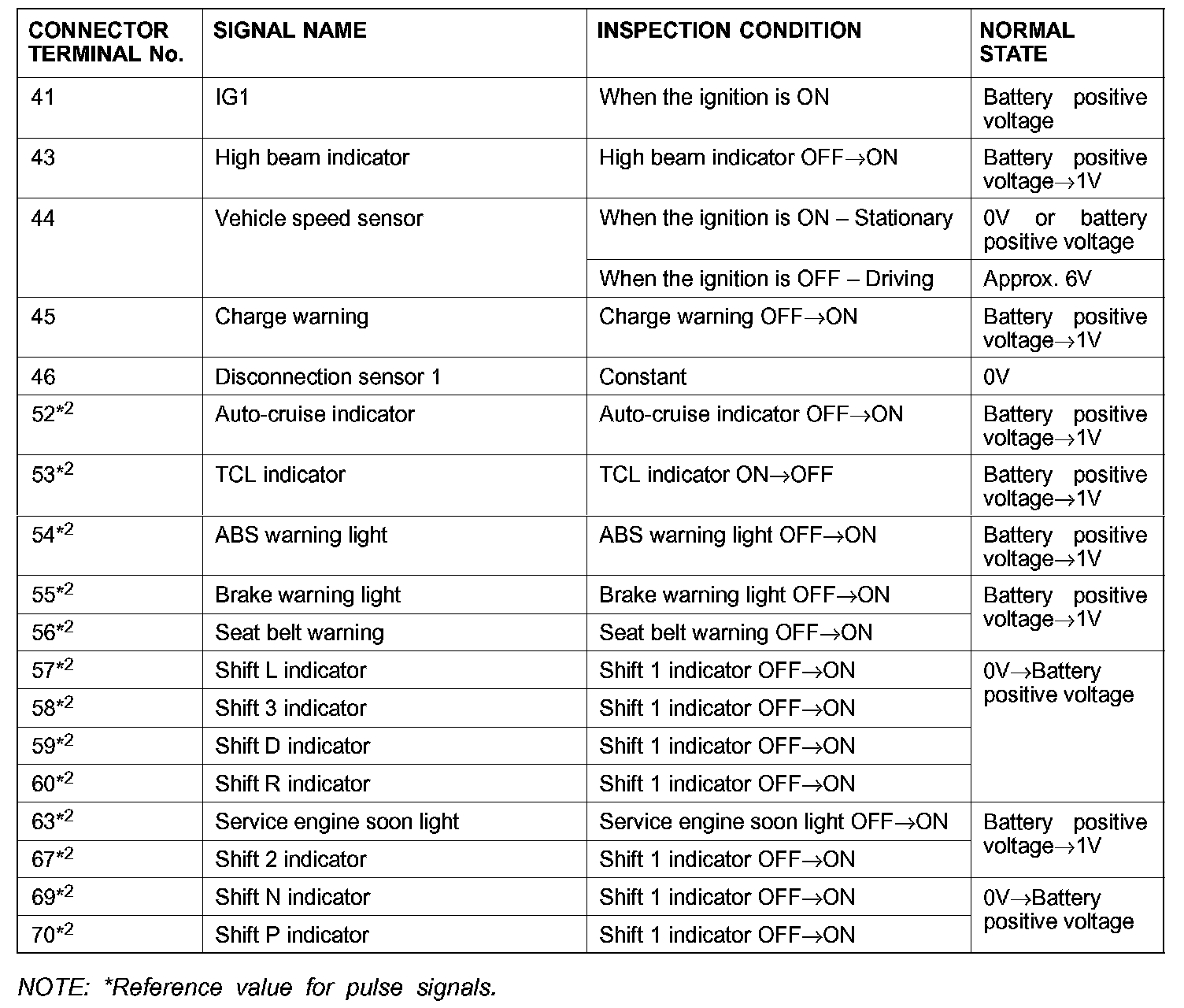

Instrument Panel ECU Terminal Check - Part 2:
