Shift Linkage: Service and Repair

The content of this aericle reflects the changes called out by TSB 05-23-002

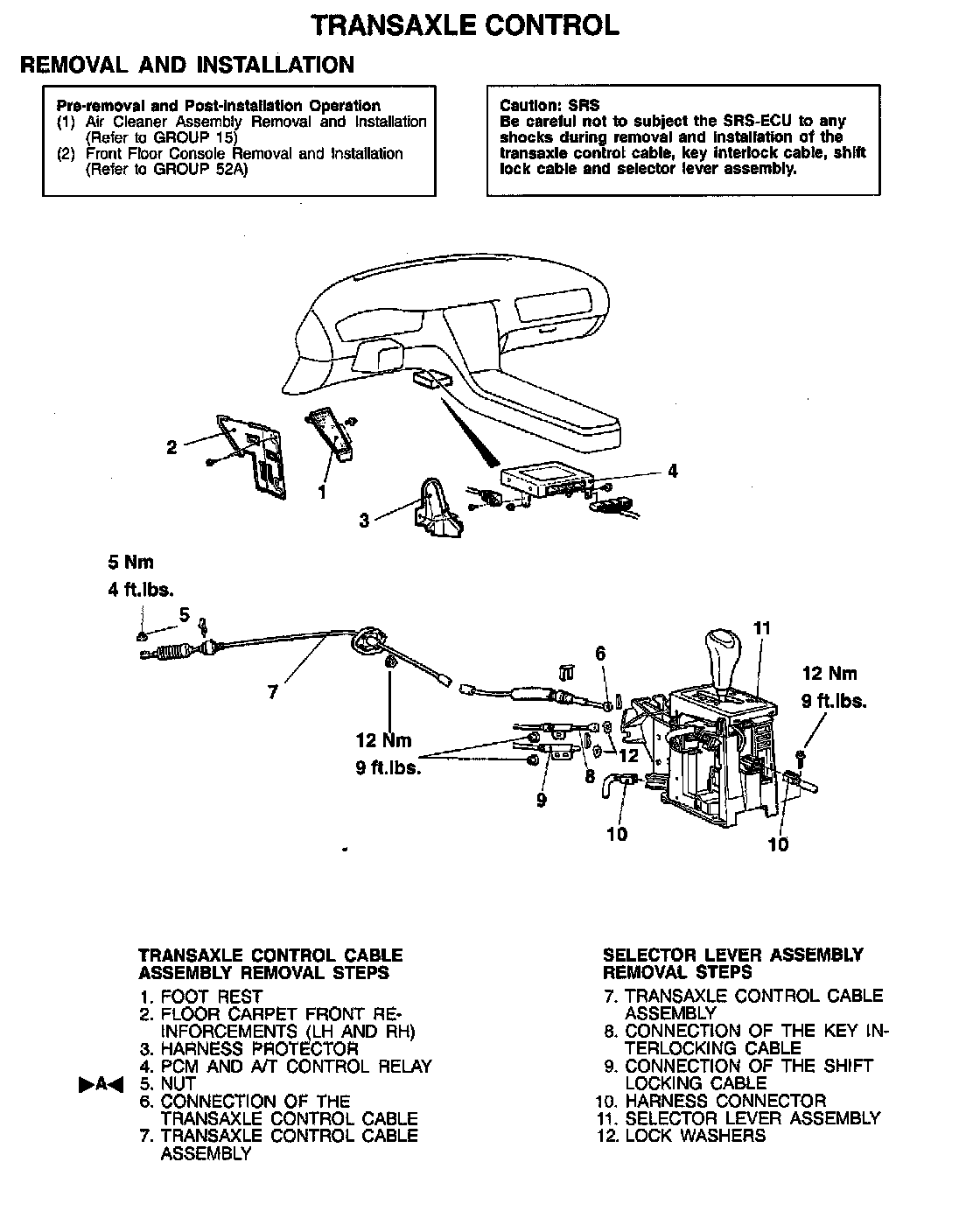

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
>>A<< NUT INSTALLATION





1. Put the selector lever in the "N" position.

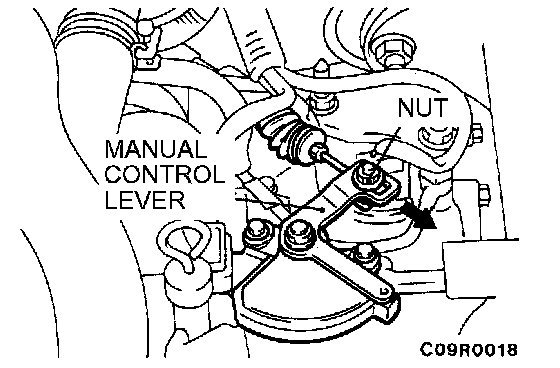

2. Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.
