Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

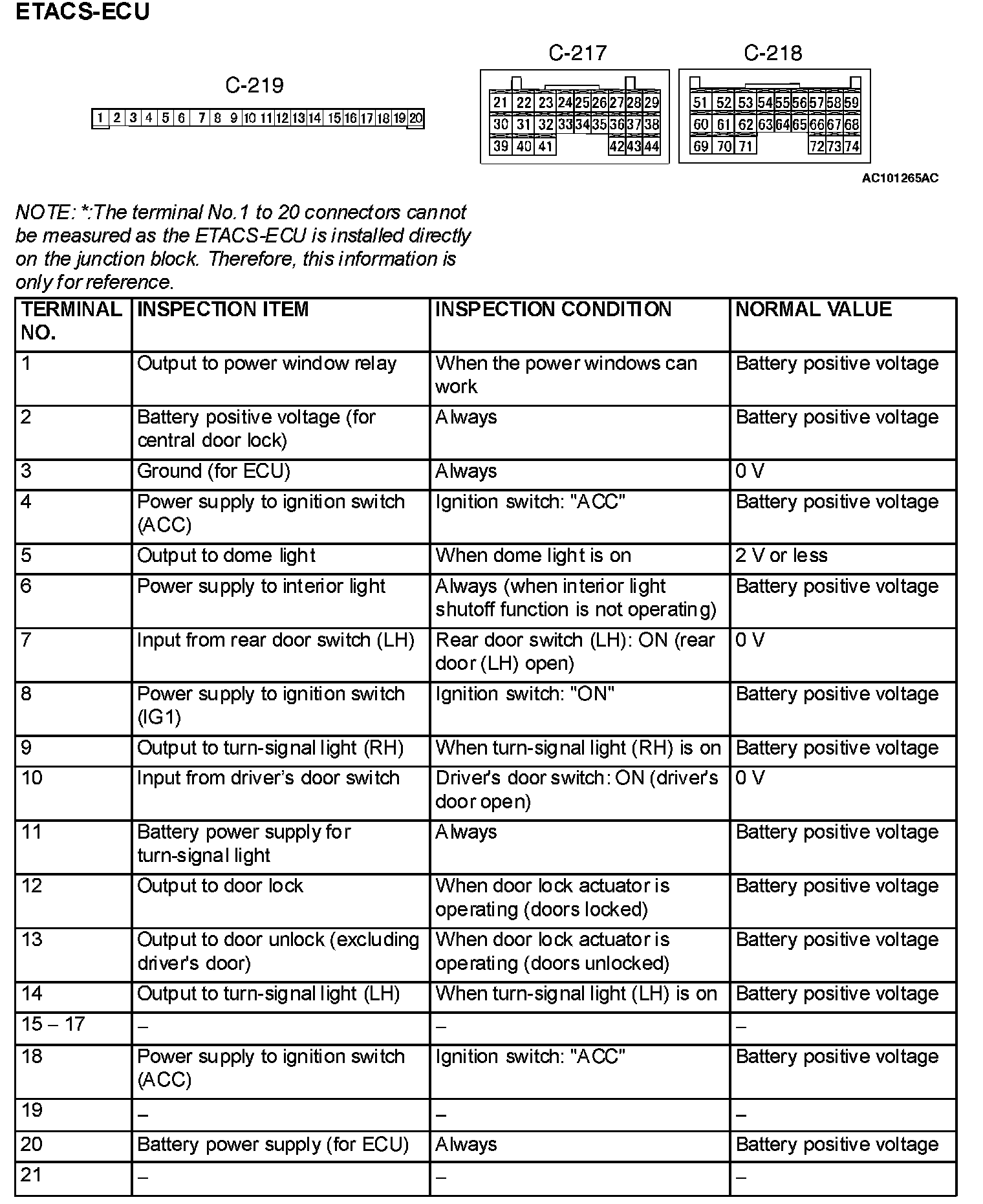

Check At ECU Terminal - ETACS-ECU Part 1:

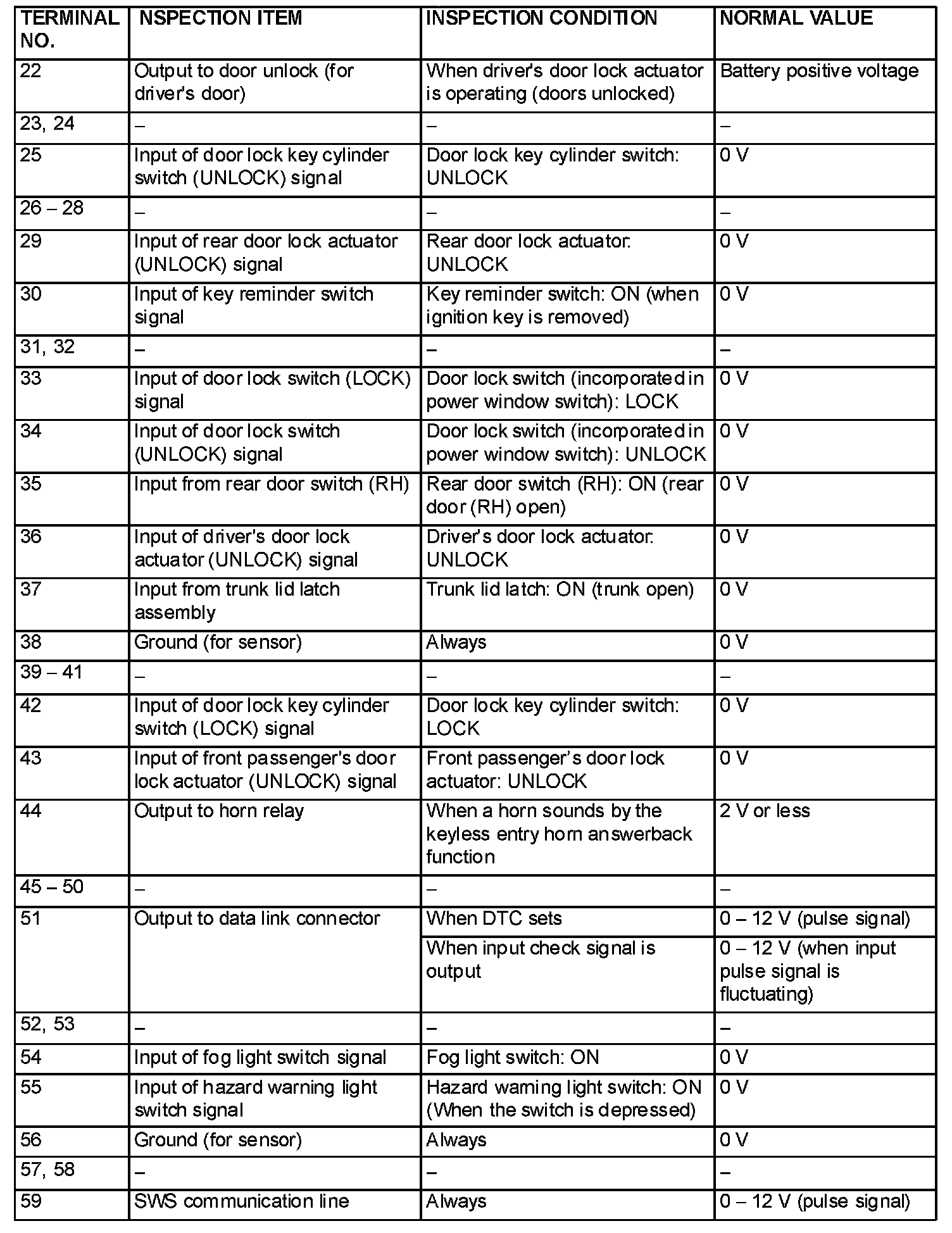

Check At ECU Terminal - ETACS-ECU Part 2:

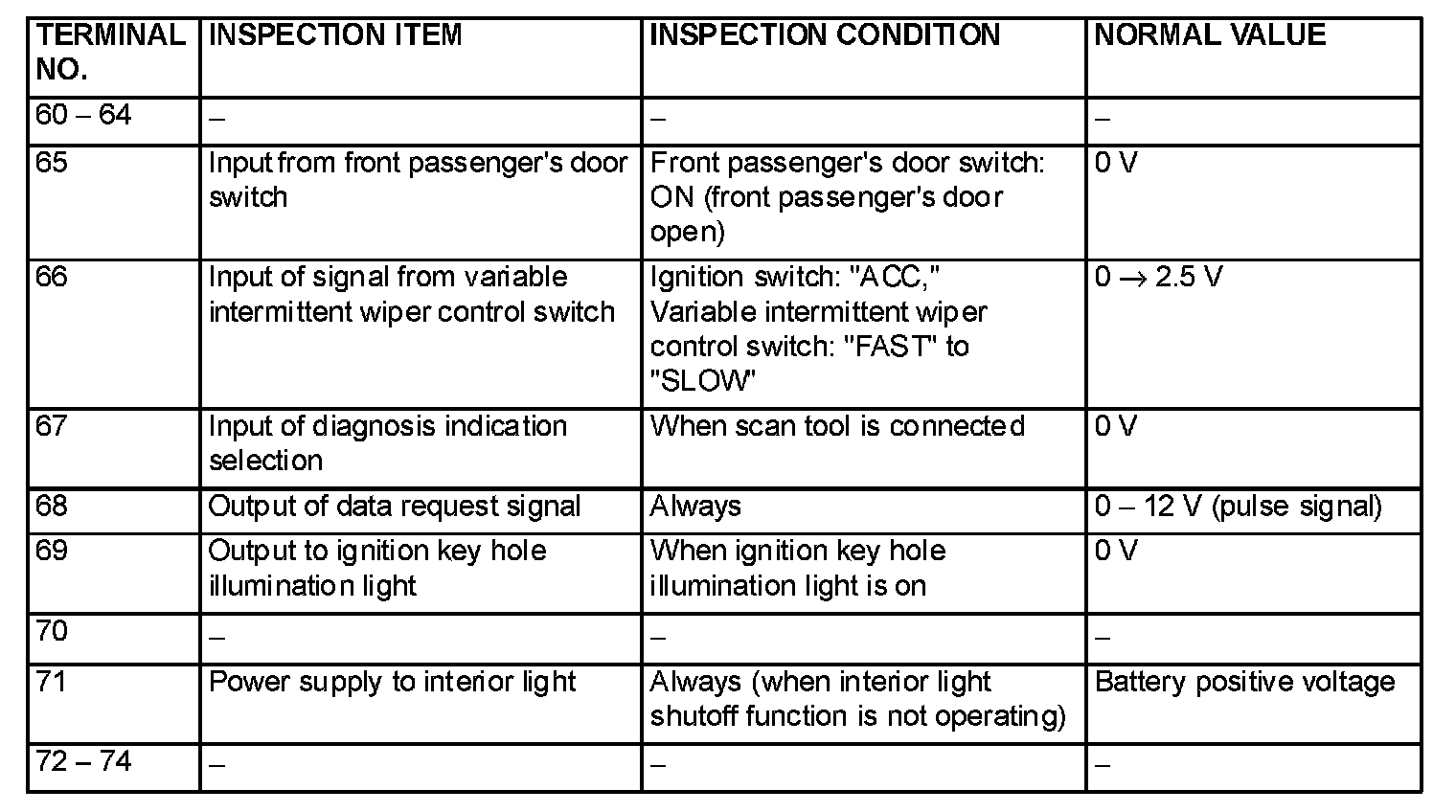

Check At ECU Terminal - ETACS-ECU Part 3:

ETACS-ECU

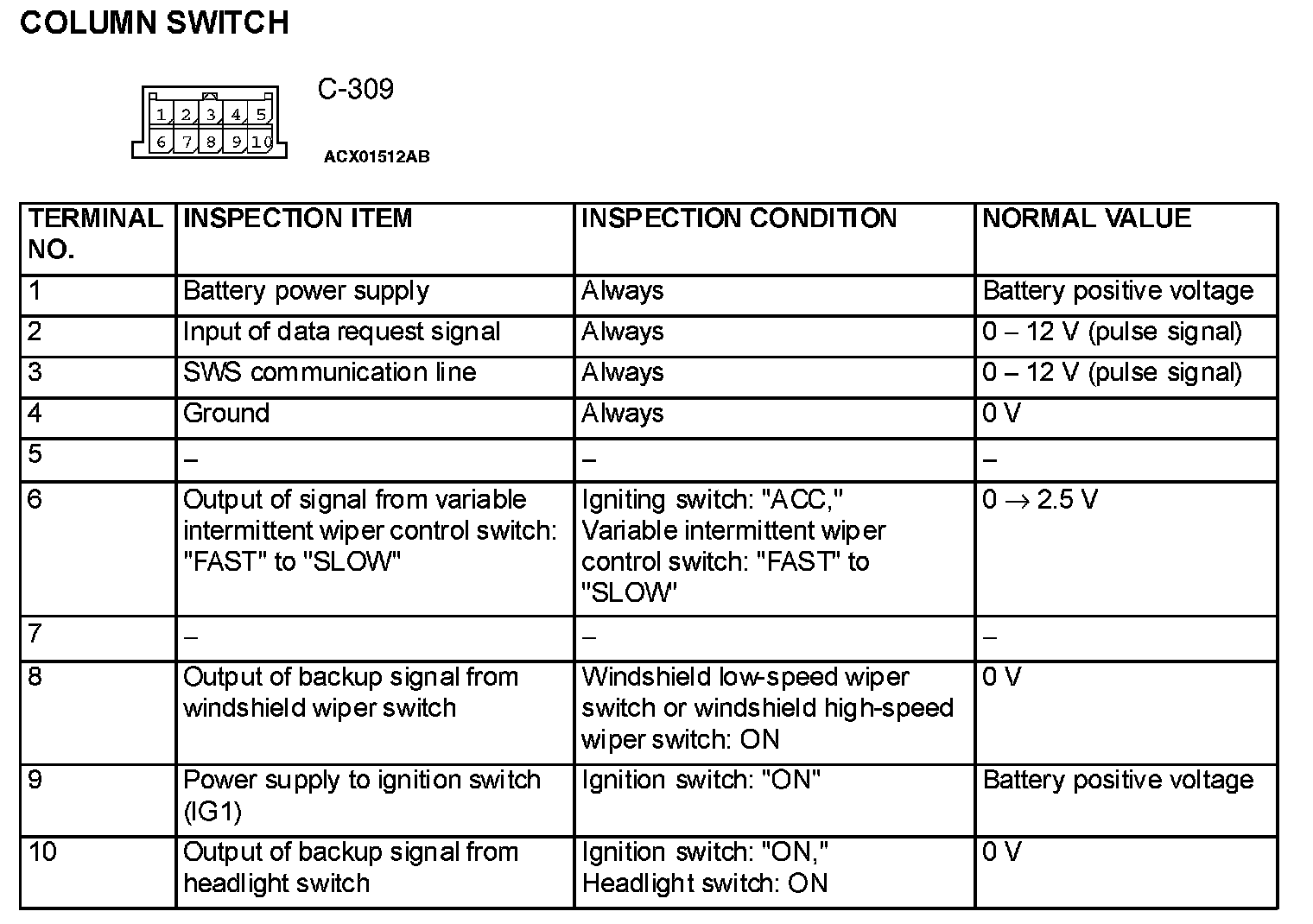

Check At ECU Terminal - Column Switch:

COLUMN SWITCH

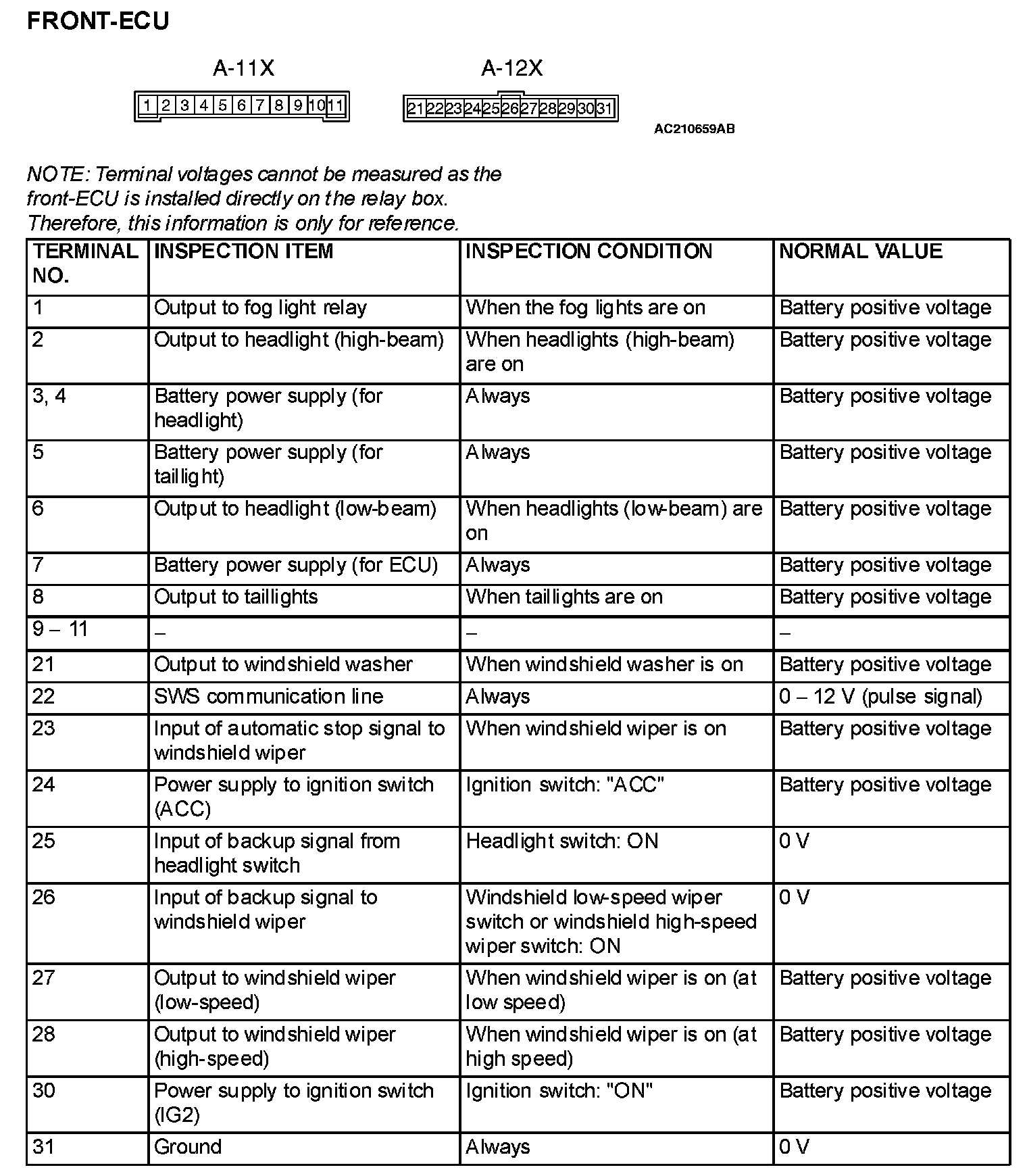

Check At ECU Terminal - Front-ECU:

FRONT-ECU

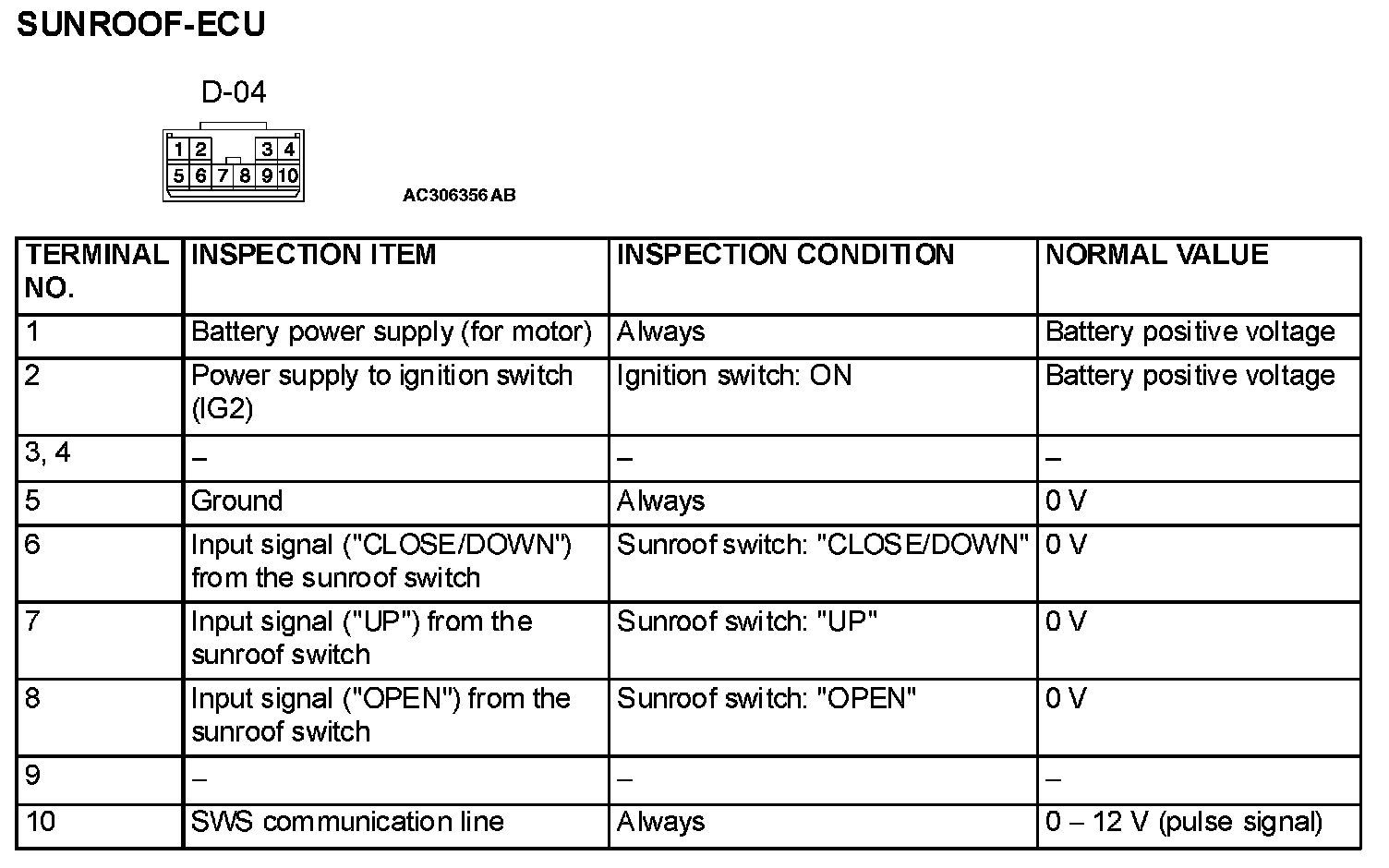

Check At ECU Terminal - Sunroof-ECU:

SUNROOF-ECU
