Symptom Charts

Symptom Chart - ECU Communication System:

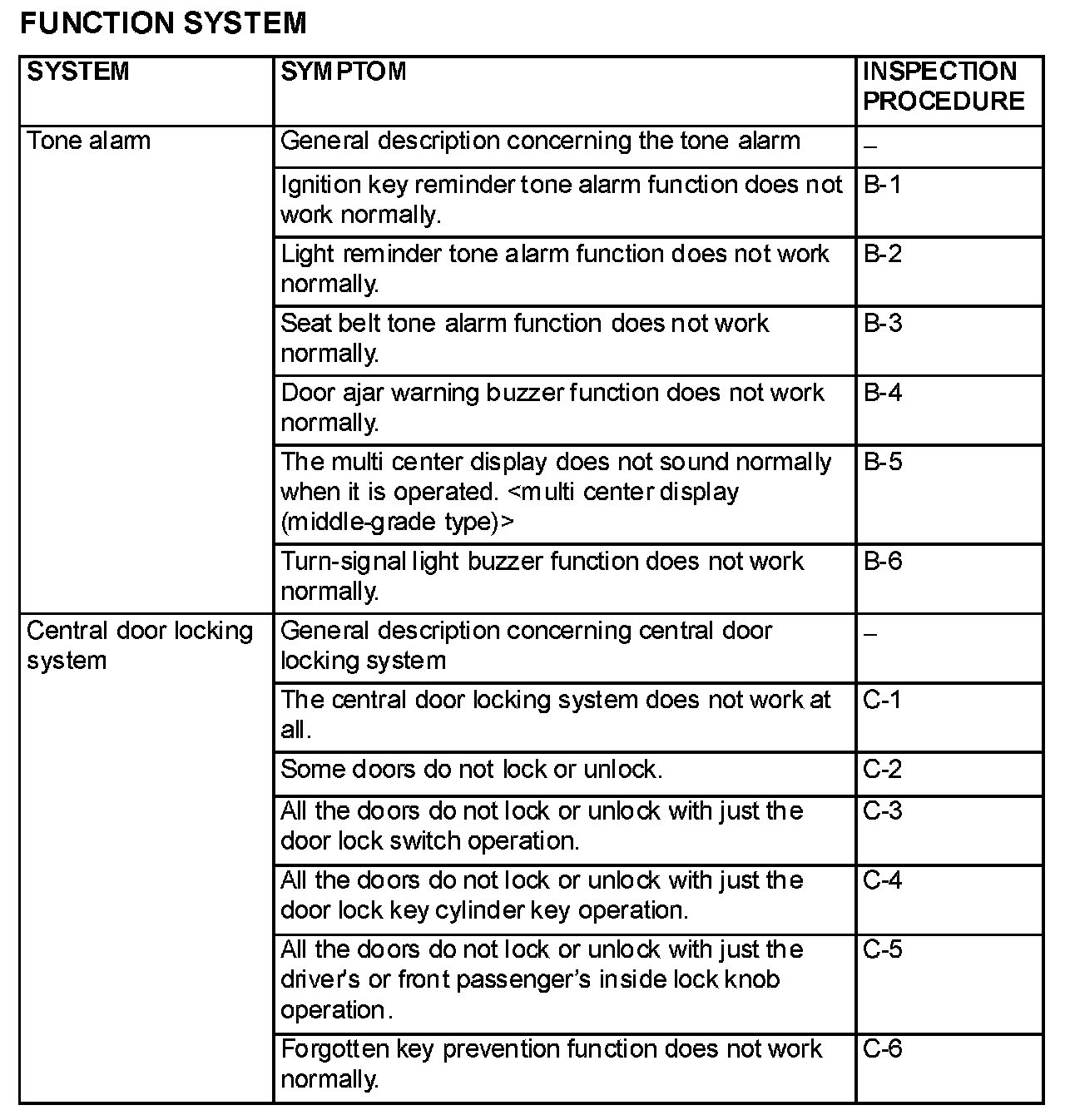

Symptom Chart - Function System Part 1:

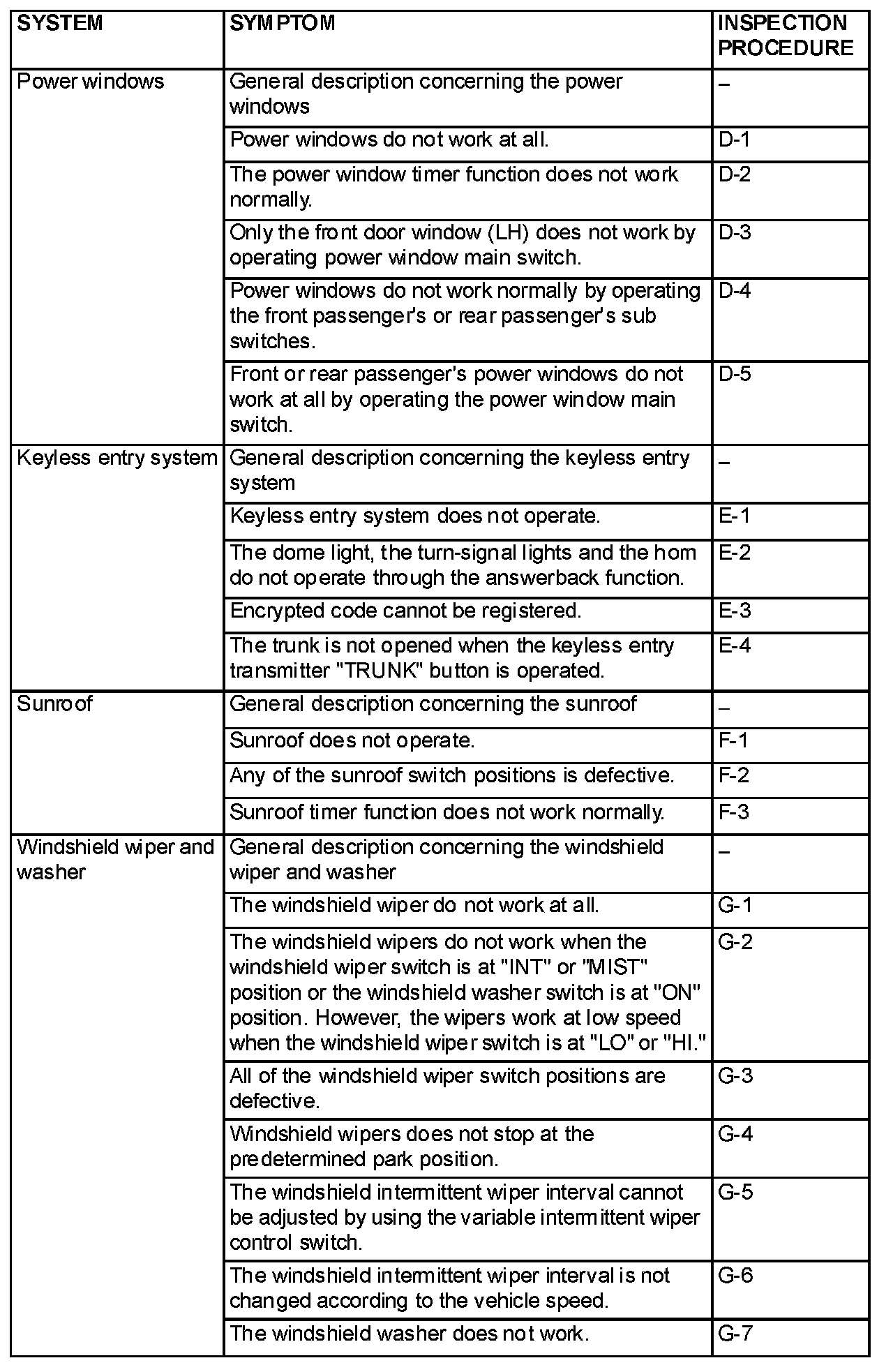

Symptom Chart - Function System Part 2:

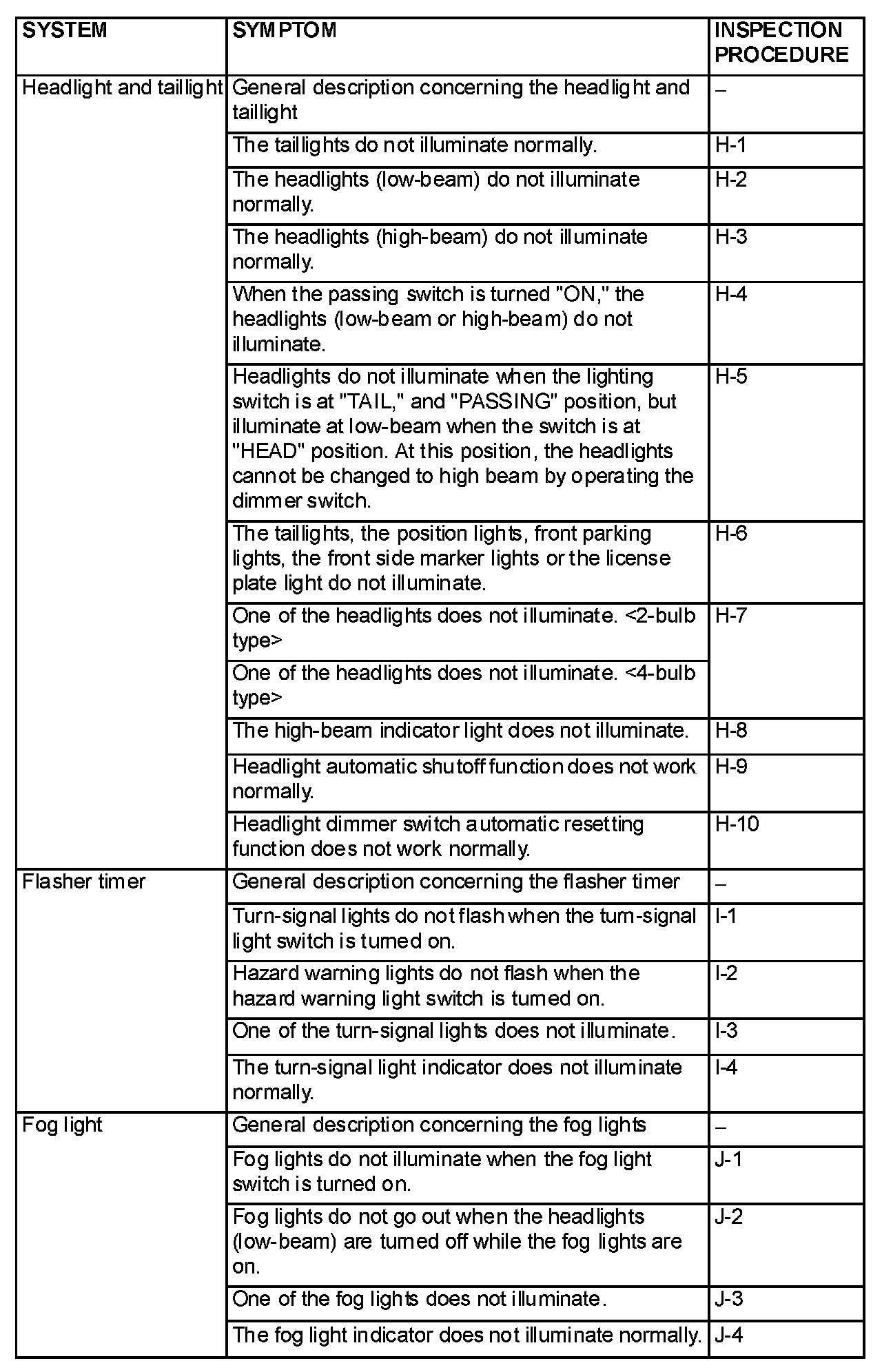

Symptom Chart - Function System Part 3:

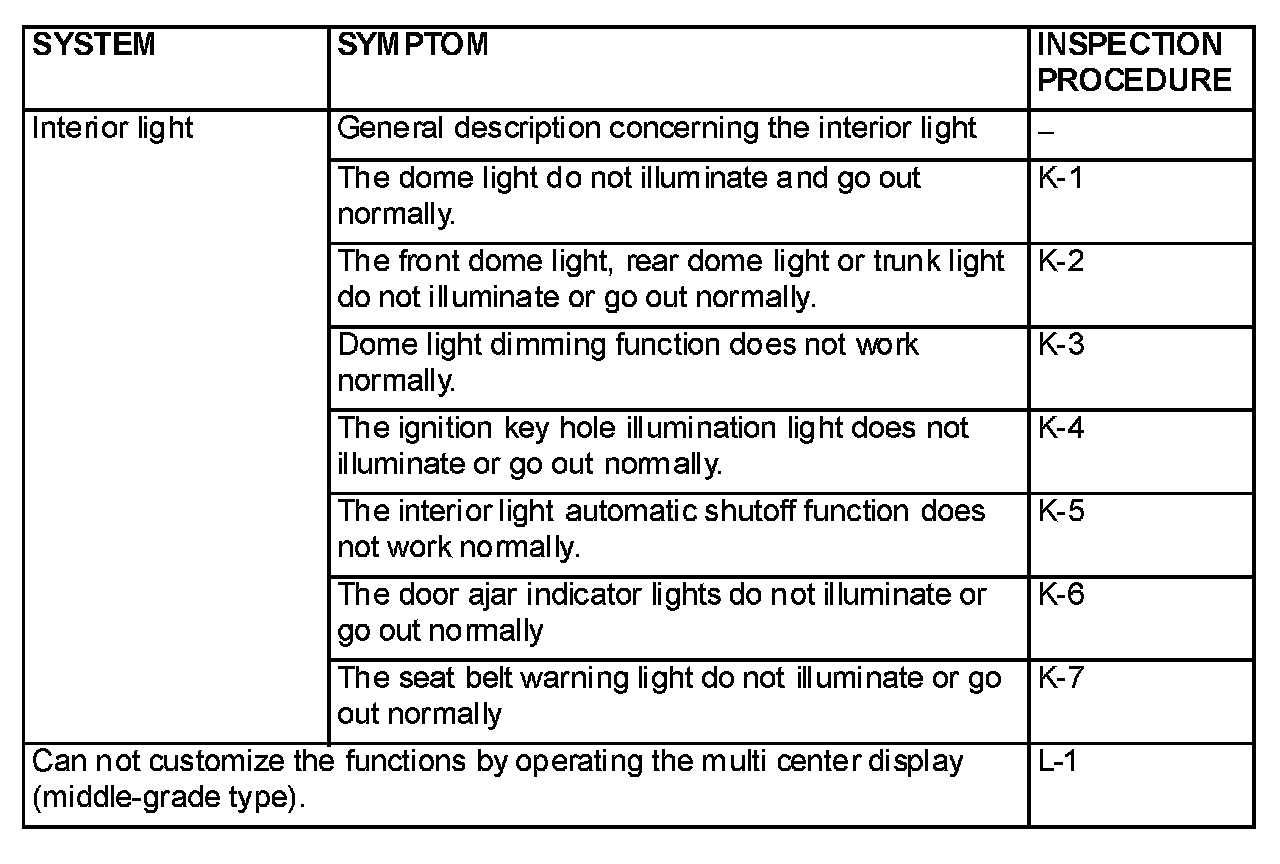

Symptom Chart - Function System Part 4:
