Home >> Mitsubishi >> 2009 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID >> Valve Body Spring Identification Table >> F5A5A

F5A5A

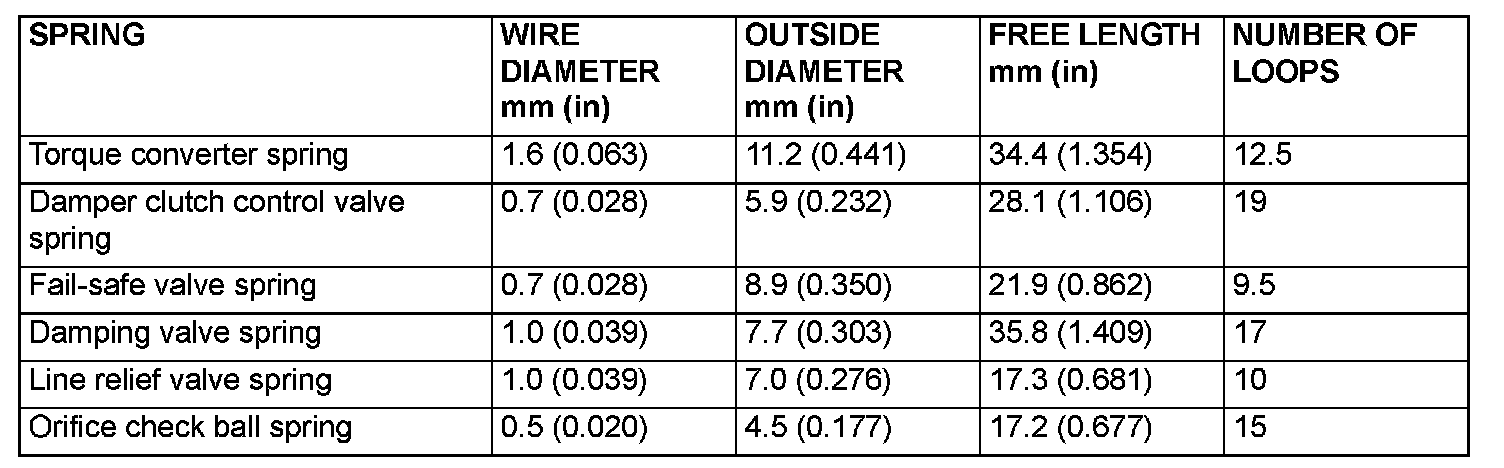

Part 1:



Part 2:
