Except MIVEC

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION [3.8L ENGINE (EXCEPT MIVEC)]

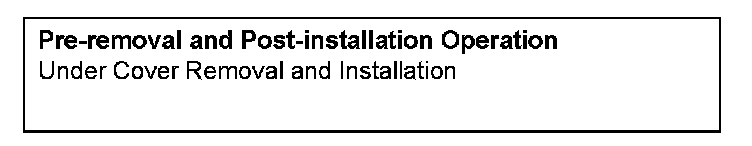

Pre-removal & Post-installation Operation:

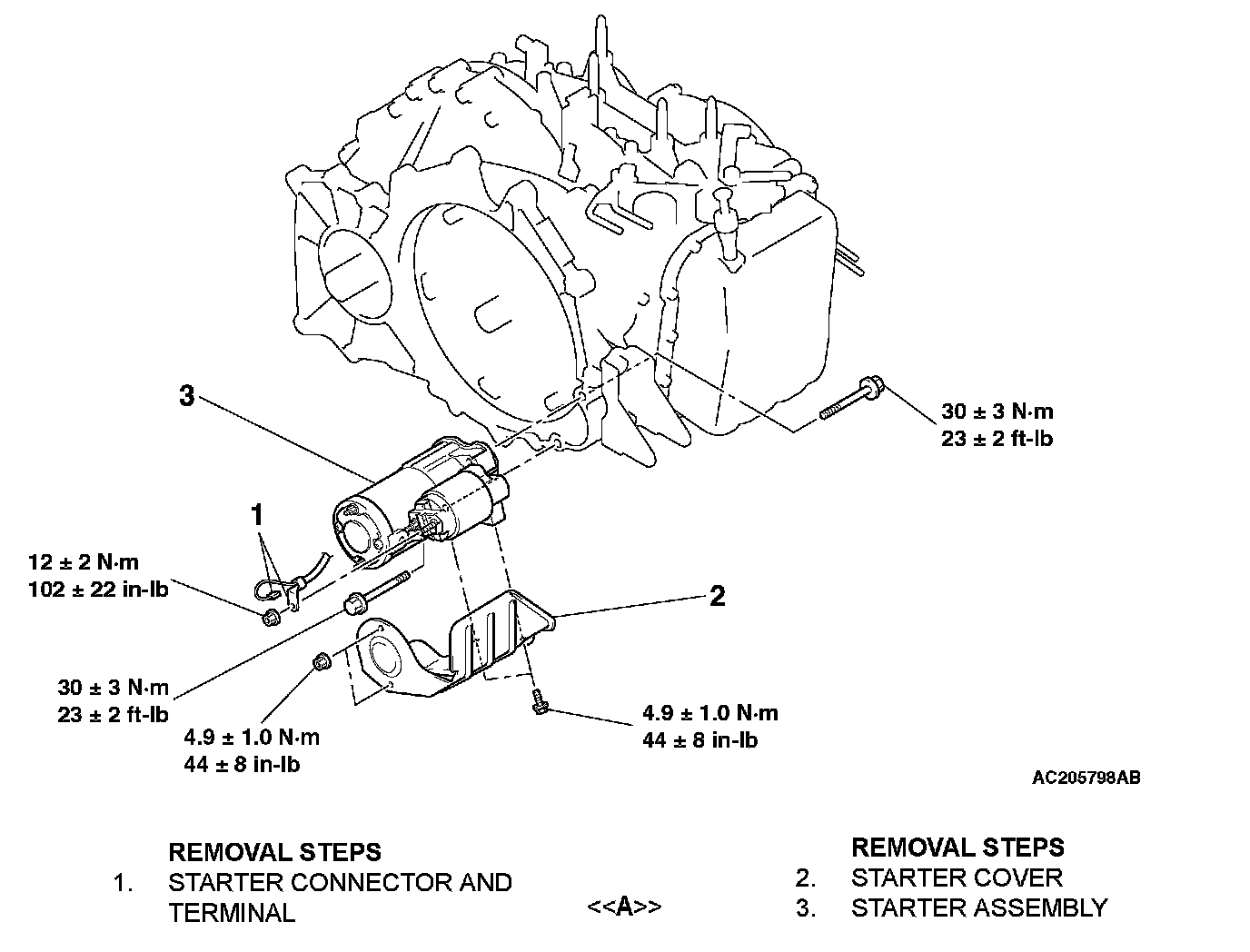

Removal Steps 1-3:

REMOVAL SERVICE POINTS

[[A]] STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.
