Fastener Tightening Specifications

Intake manifold

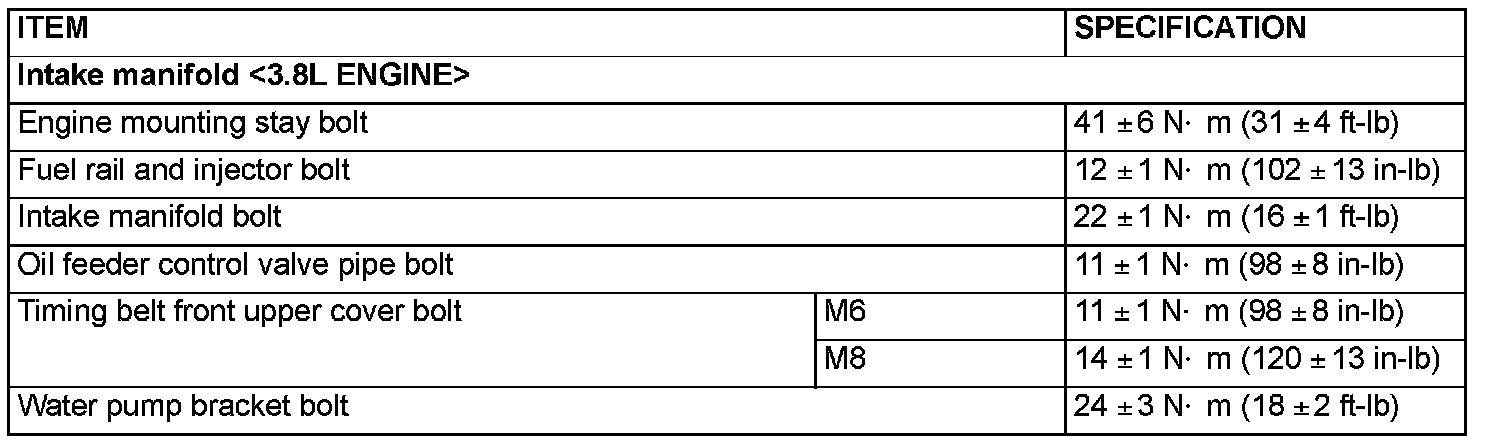

Fastener Tightening Specifications - Intake Manifold:






Intake manifold plenum

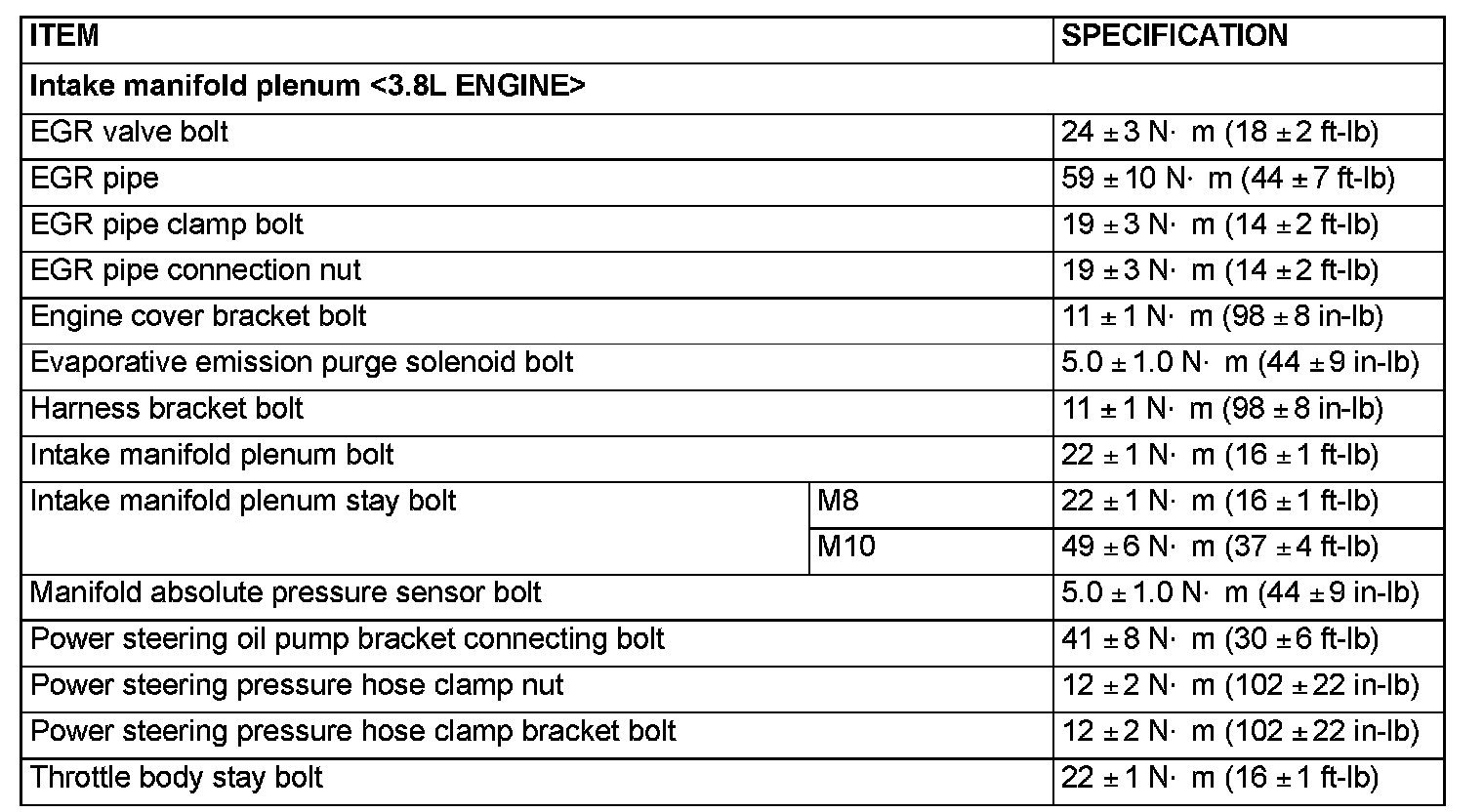

Fastener Tightening Specifications - Intake Manifold Plenum:
