Compressor Clutch Relay: Testing and Inspection

POWER RELAY CHECK

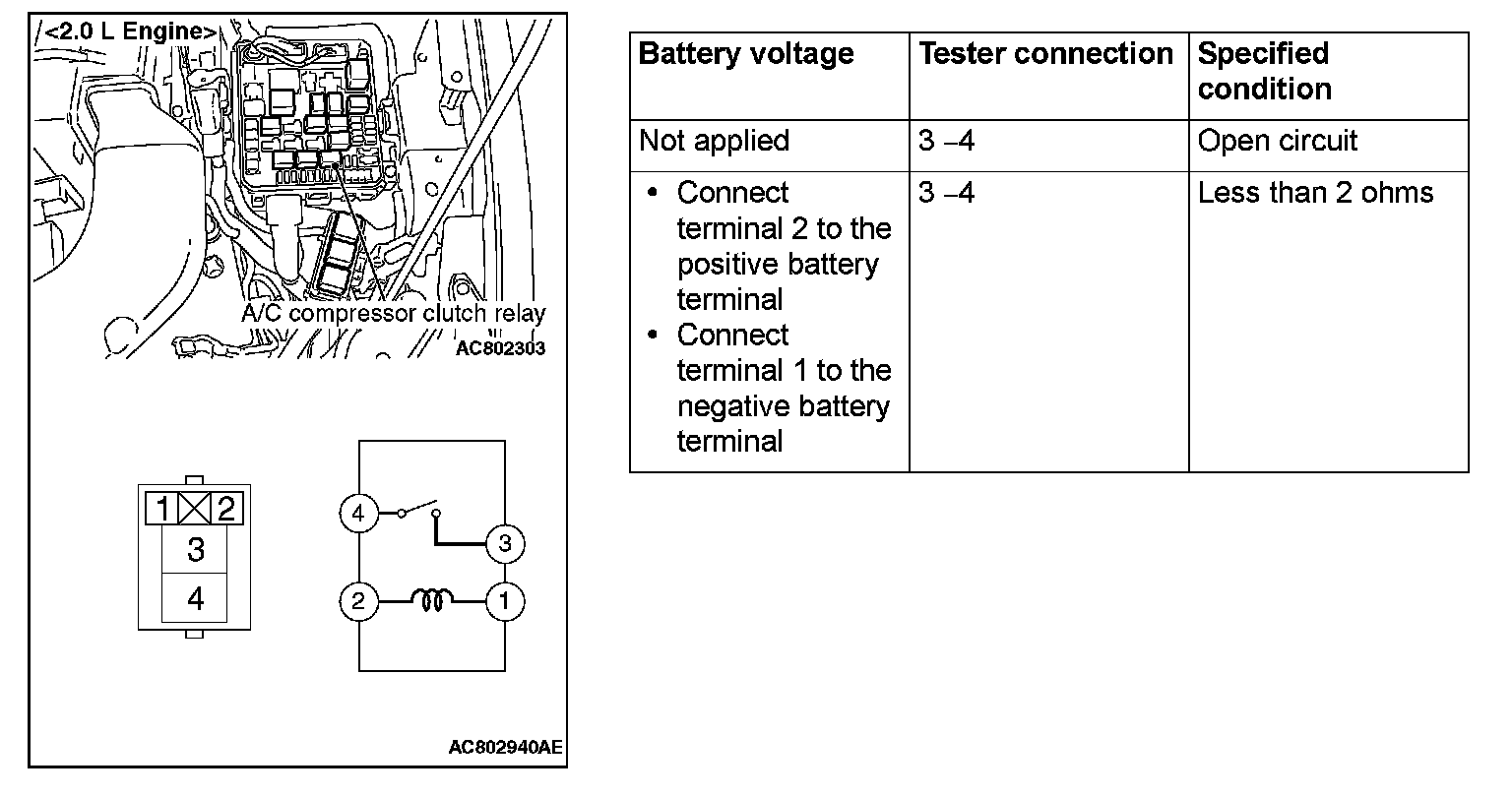

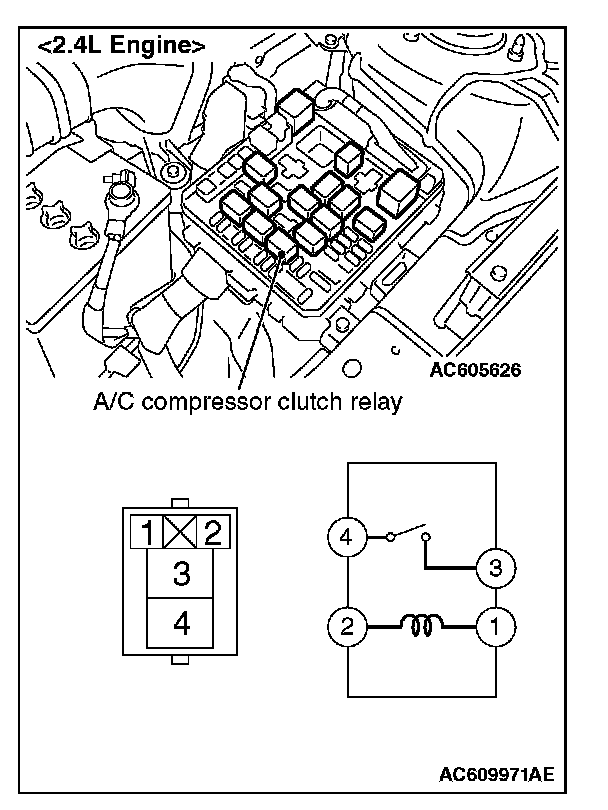

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK
