Home >> Nissan-Datsun >> 1982 >> 210 L4-1237cc 1.2L (A12a) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection

Blower Motor: Testing and Inspection

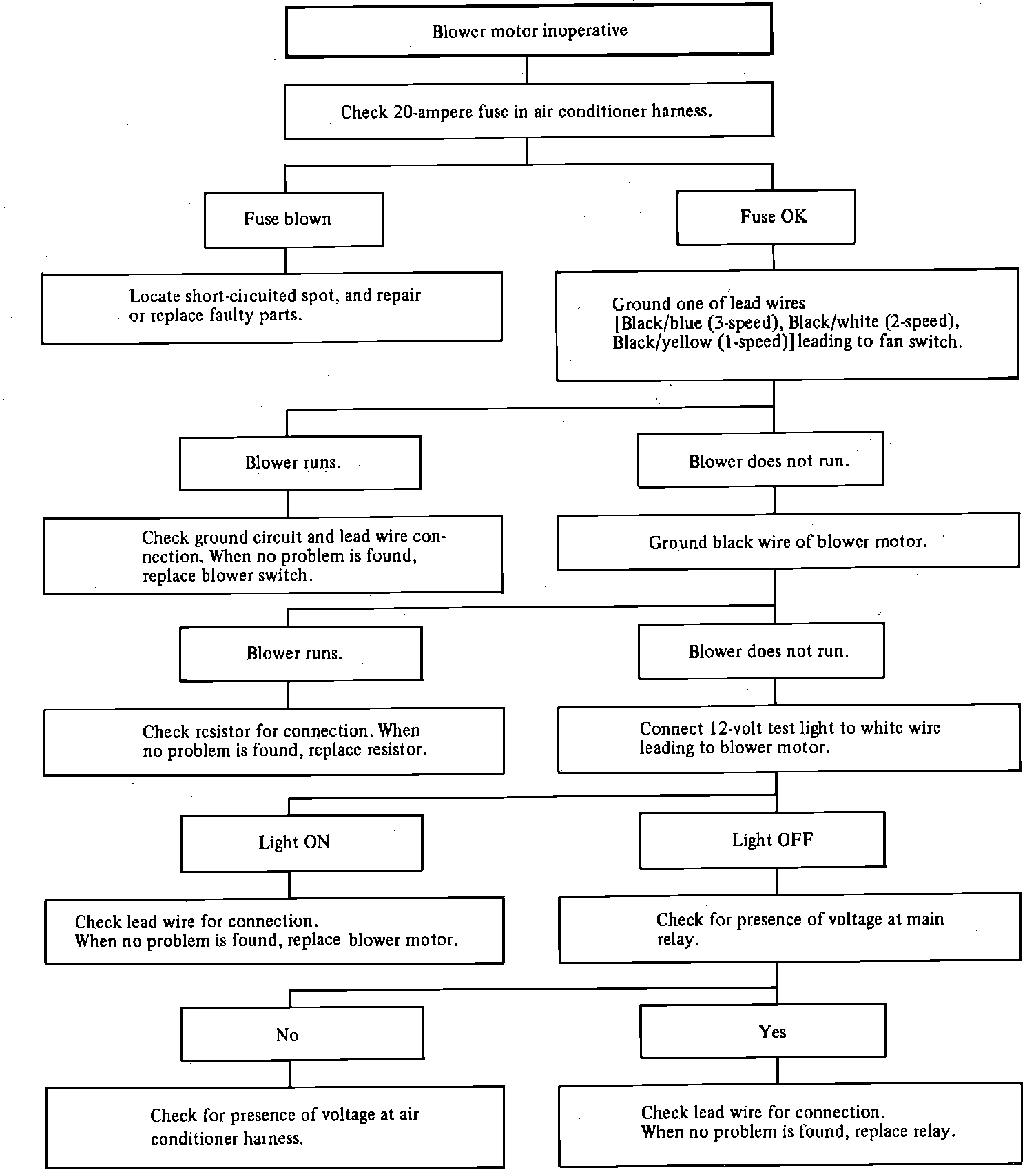

Fig. 15 Blower motor diagnosis:
