Computers and Control Systems: Locations

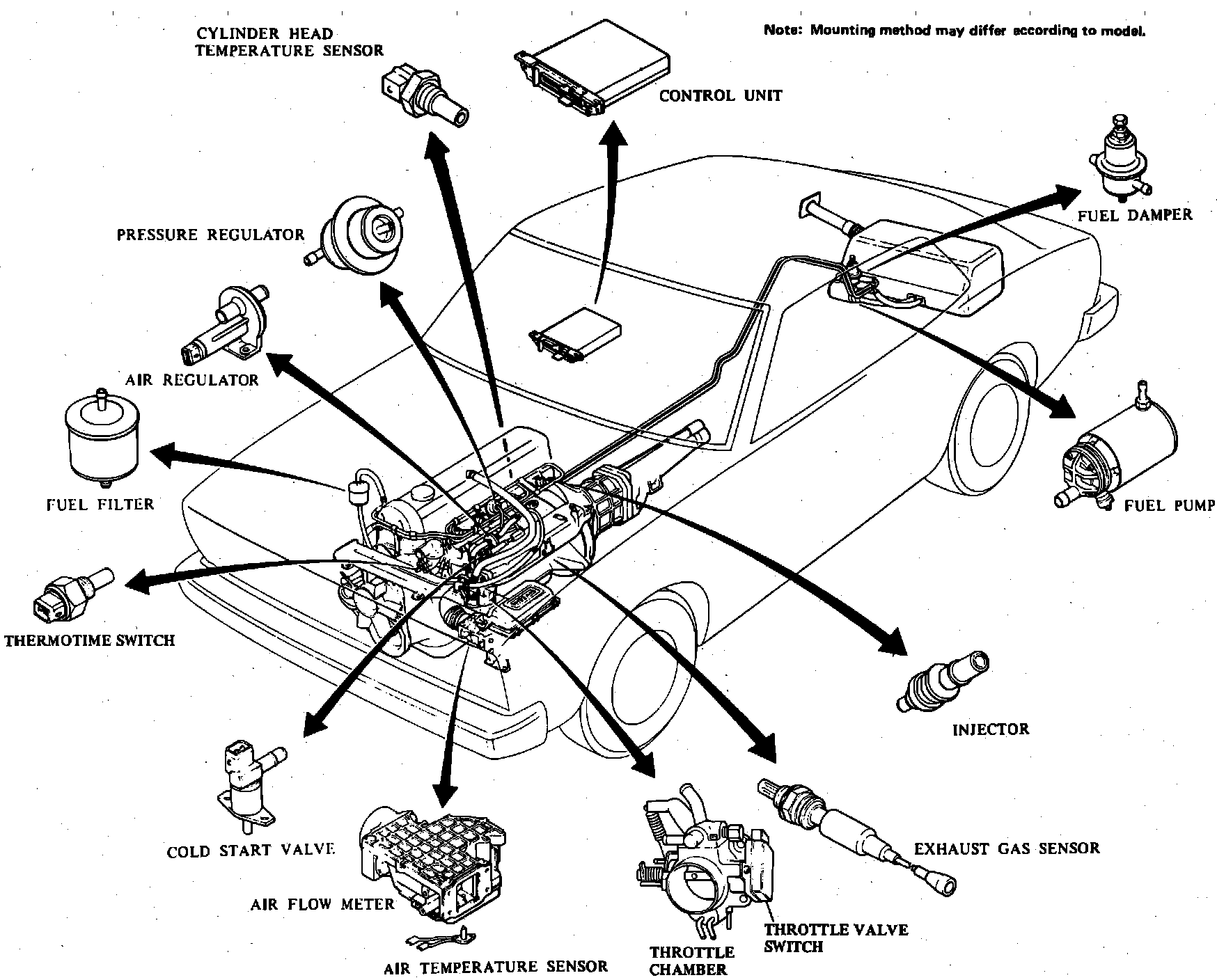

Engine Compartment Components.:




In Engine Compartment

Applicable to: 1982-84 810 & Maxima
