Condenser: Testing and Inspection

CONDENSER
1. Turn ignition switch "OFF".
2. Disconnect condenser harness connector.

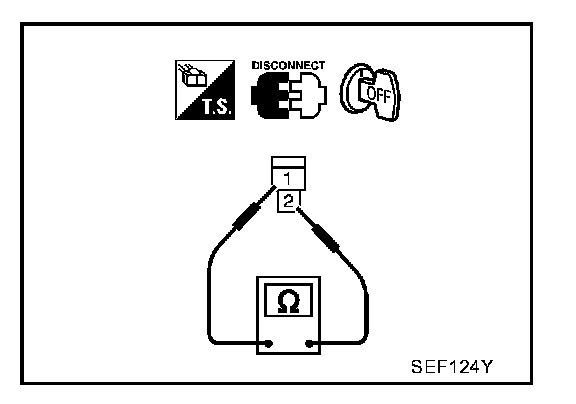

3. Check resistance between condenser terminals as 1 and 2.
Resistance: Above 1 MOhm at 25 °C (77 °F)
