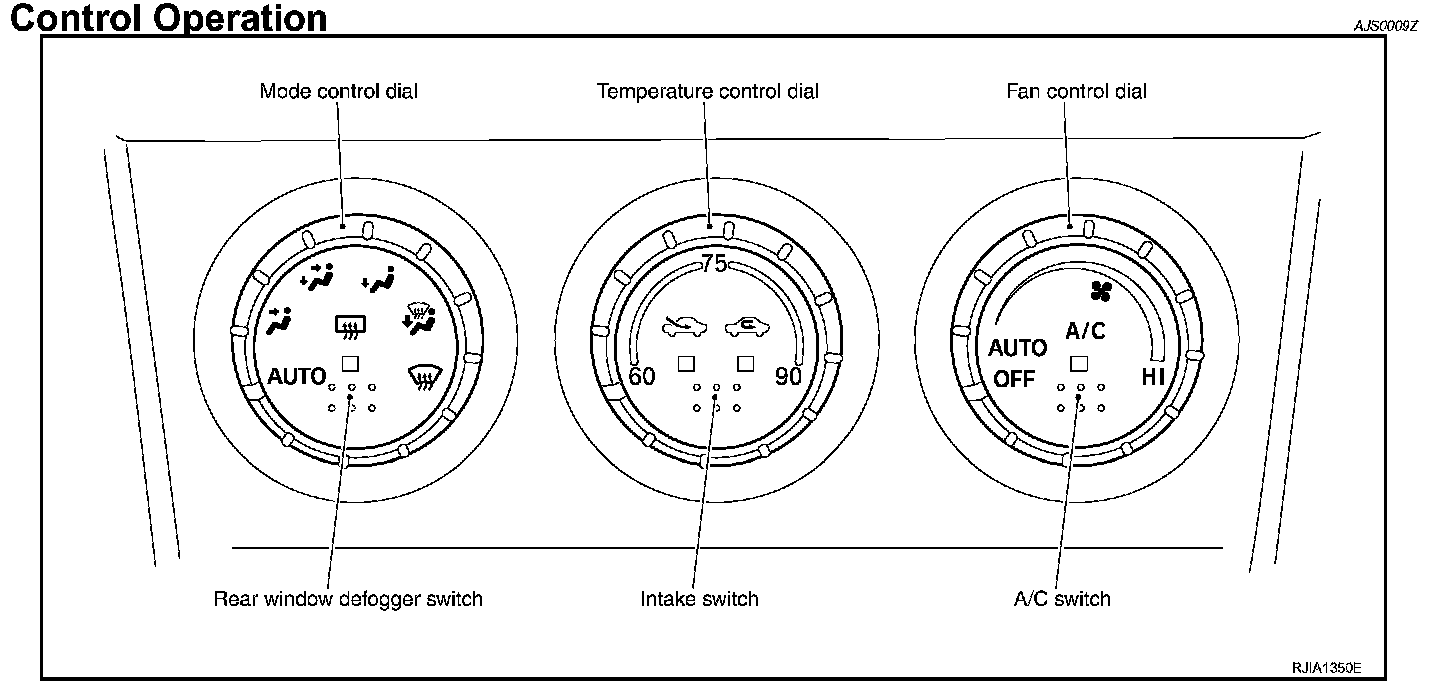

Control Operation

Control Operation

TEMPERATURE CONTROL DIAL (POTENTIO TEMPERATURE CONTROL)
Increases or decreases the set temperature.

INTAKE SWITCH
- When intake switch is ON, REC indicator turns ON, and air inlet is fixed to REC.
- Press intake switch again, FRE indicator turns ON, and air inlet is fixed to FRE.
- When intake switch is pressed for approximately 1.5 seconds or longer, REC and FRE switch indicators blink twice. Then, automatic control mode is entered. Inlet status is displayed even during automatic control.
- When FRE switch is turned ON, shifting mode control dial to D/F or DEF, or when compressor is turned from ON to OFF, REC switch is automatically turned OFF (fixed to FRE mode). REC mode can be reentered by pressing REC switch again. (Except D/F, D/F2 or DEF position)

REAR WINDOW DEFOGGER SWITCH
When illumination is ON, rear window is defogged.

A/C SWITCH
The compressor is ON or OFF. (Pressing the A/C switch when the fan control dial is ON will turn off the A/C switch and compressor.)

MODE CONTROL DIAL
Controls the air discharge outlets.

Positions the air outlet doors to the defrost position. Also positions the intake doors to the outside air position.
When shifting mode control dial to D/F, D/F2 or DEF position under the following conditions, compressor is turned ON. (A/C LED ON)
- FAN: ON
- A/C: OFF

FAN CONTROL DIAL
Automatically or manually control the blower speed. Twenty five speeds are available for manual control. Shifting fan control dial to AUTO, compressor is turned ON automatically.
