Front Fender: Service and Repair

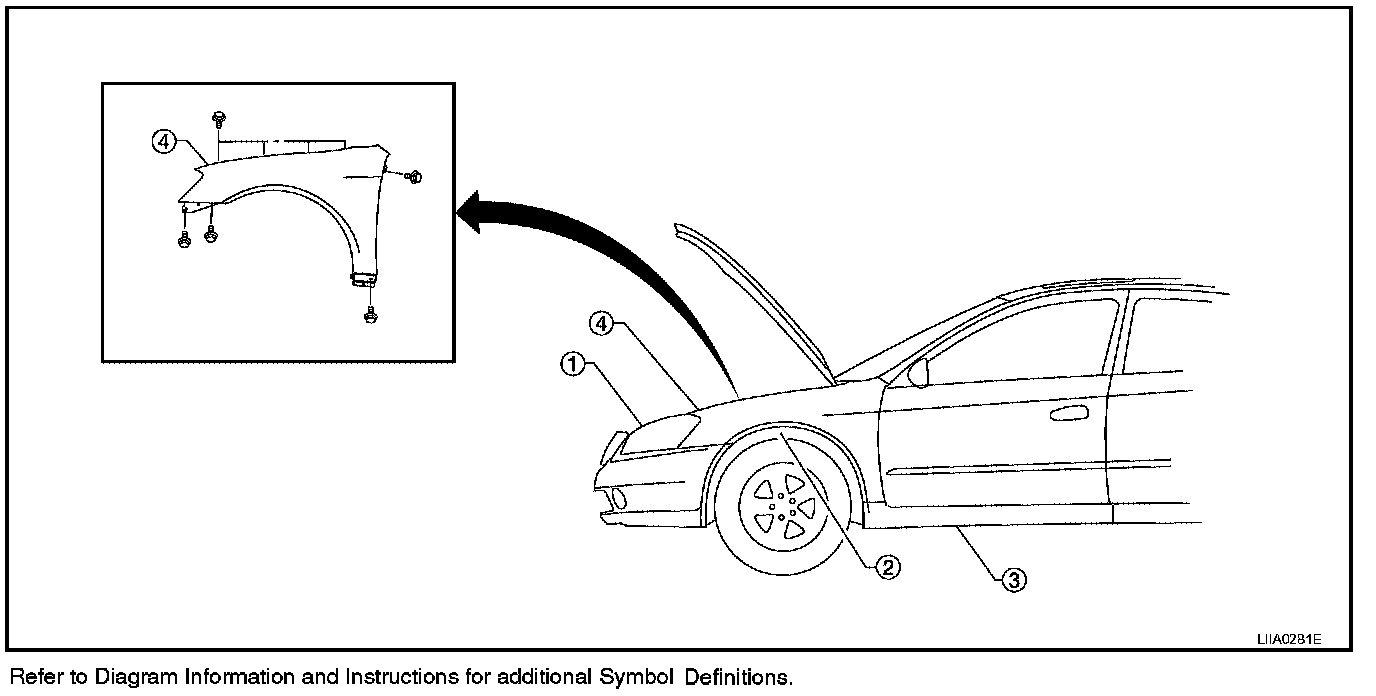

Exploded View EI-20:

FRONT FENDER

Removal and Installation
1. Remove front combination lamp.
2. Remove fender protector.
3. Remove front half of center mud guard.
4. Remove front fender.

Installation is in the reverse order of removal.
