Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove heater and cooling unit. Service and Repair

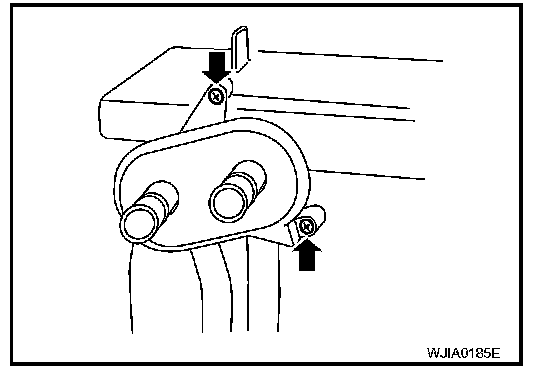

2. Remove heater core pipe support screws and then remove heater core pipe support.

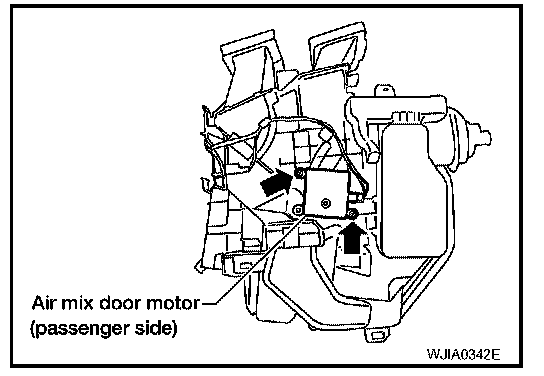

3. Remove the air mix door motor (passenger side).

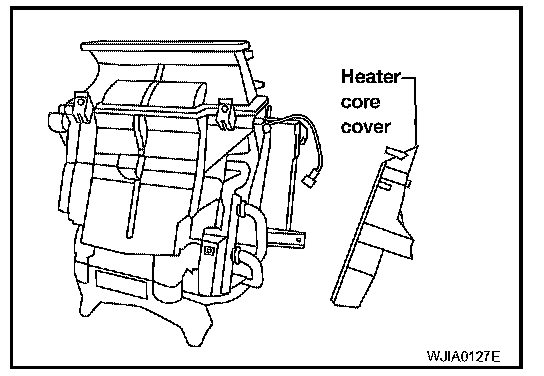

4. Remove heater core cover screws and then remove heater core cover.

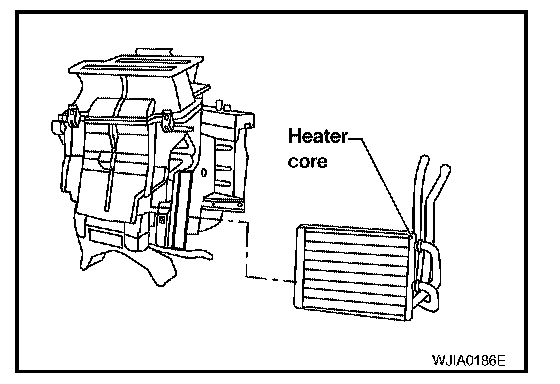

5. Remove heater core.

INSTALLATION
Installation is the reverse order of removal.
