Flywheel

Specifications
Flywheel deflection [TIR]* - Standard Less than 0.45 (0.0177)
Flywheel deflection [TIR]* - Limit 1.3 (0.051)
Drive plate runout [TIR]* Less than 0.15 (0.0059)
Flywheel movement in rotation direction Less than 24 (0.94)
*: Total indicator reading

FLYWHEEL/FLEX PLATE TORQUE AND SEQUENCE






Install the flywheel (M/T), if equipped.

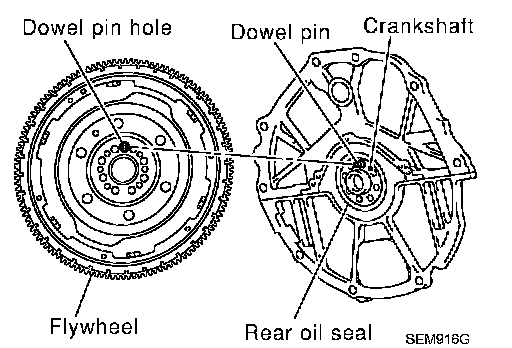

^ When installing flywheel to crankshaft, be sure to correctly align crankshaft side dowel pin and flywheel side dowel pin hole.

Flywheel bolts : 83 - 93 Nm (8.5 - 95 kgf-cm, 61 - 69 ft. lbs.)






Install the drive plate (A/T), if equipped.

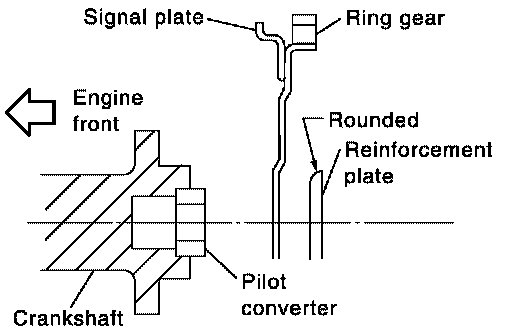

^ Install the drive plate and reinforce plate in the direction shown.
^ Align dowel pins of crankshaft rear and drive plate with pin holes of each part.
^ Secure the crankshaft using Tool.

Tool number : KV10117700 (J44716)

^ Tighten the drive plate bolts in one or two steps.

Drive plate bolts : 83 - 93 Nm (8.5 - 95 kgf-cm, 61 - 69 ft. lbs.)
