Engine Control System Schematic

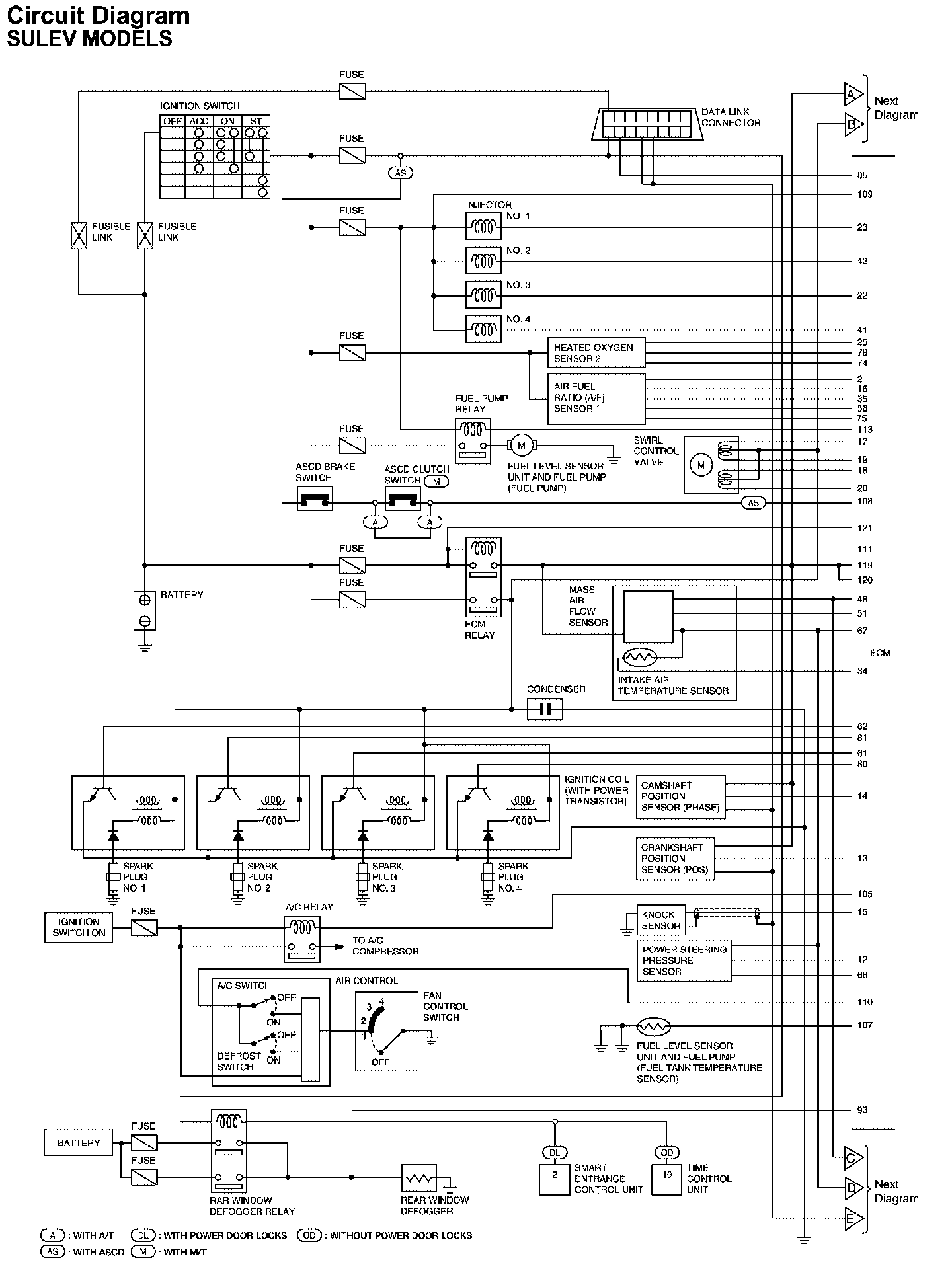

Circuit Diagram Sulev Models Part 1:

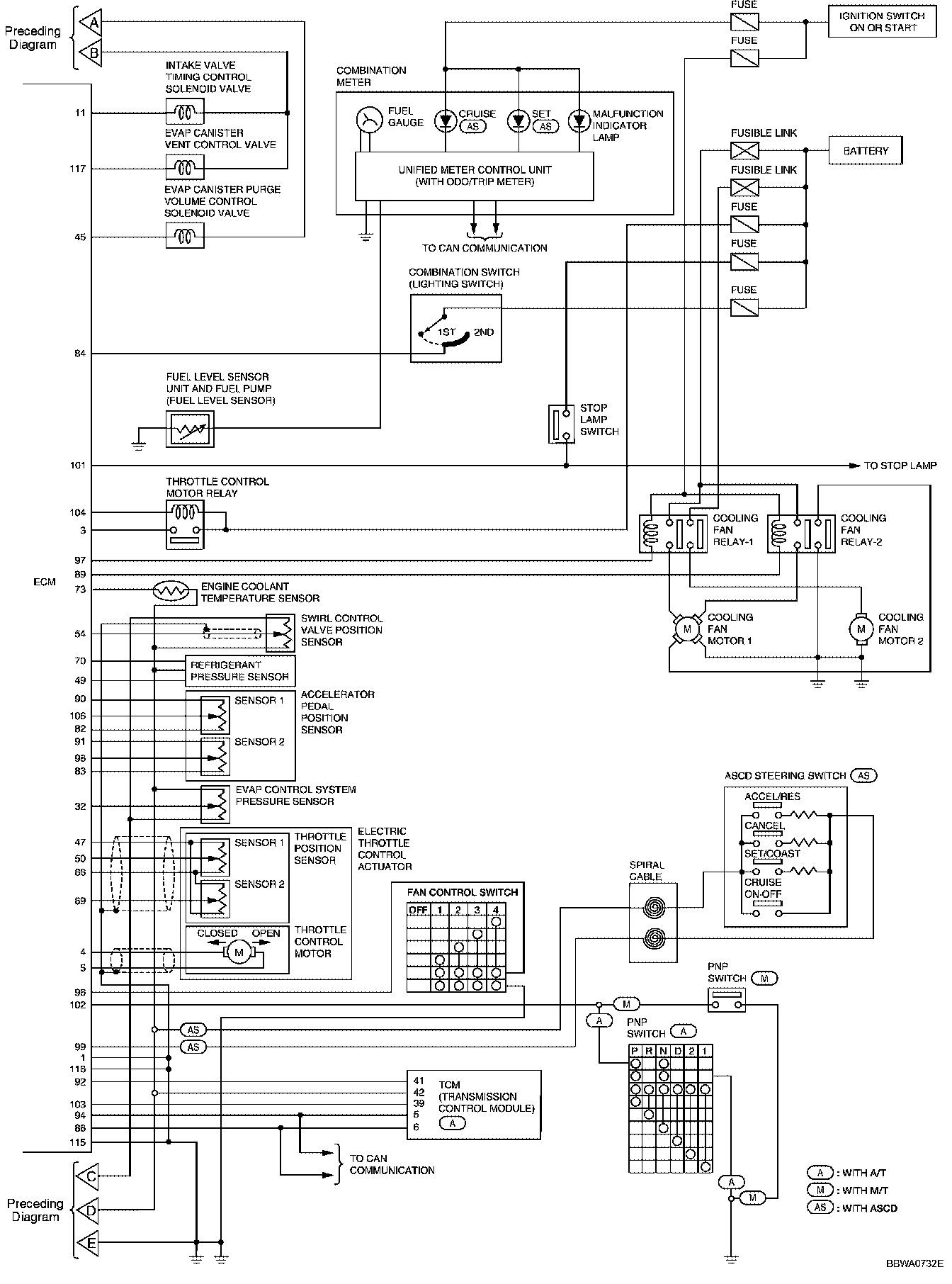

Circuit Diagram Sulev Models Part 2:

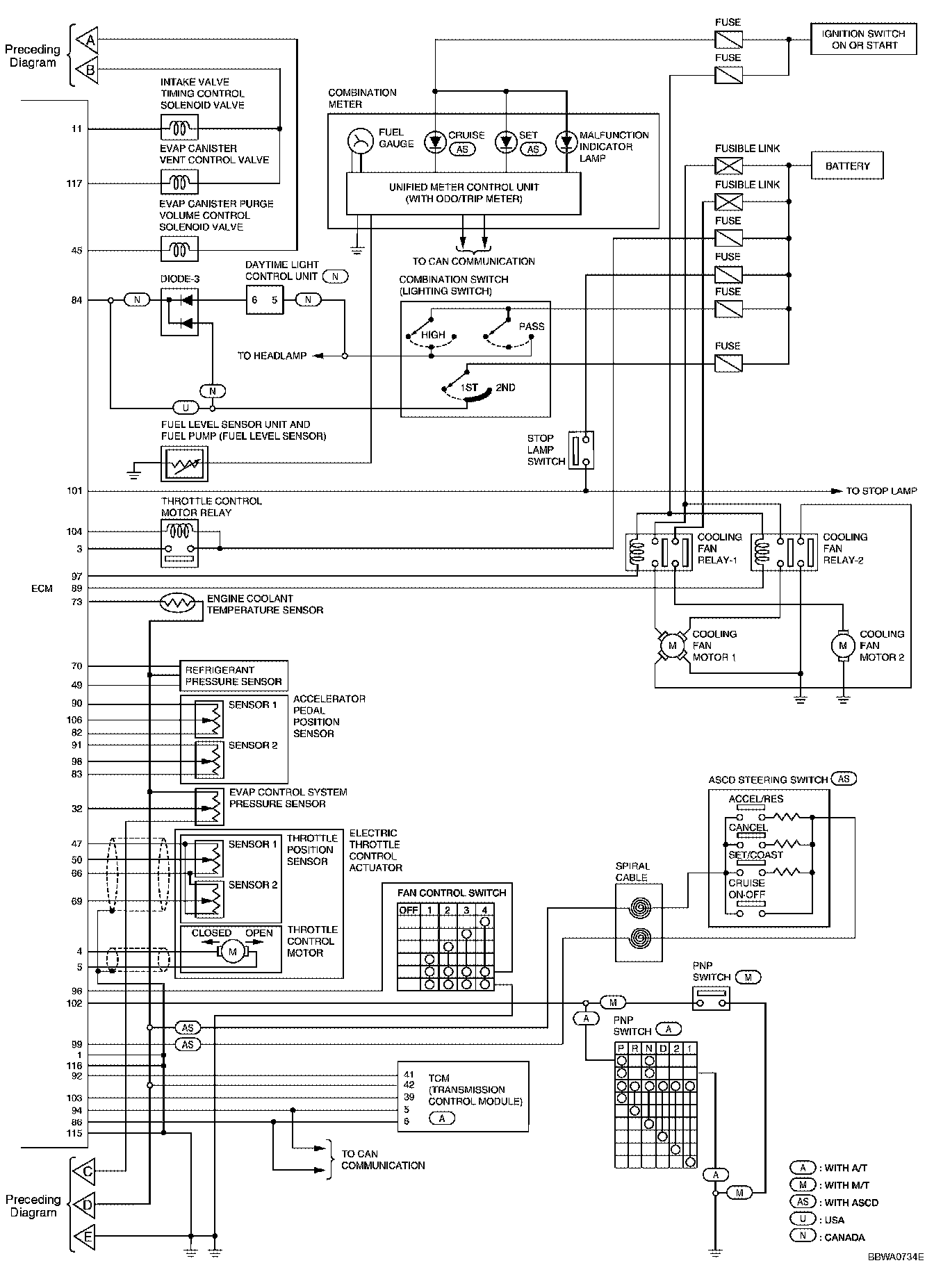

Circuit Diagram Except Sulev Models Part 1:

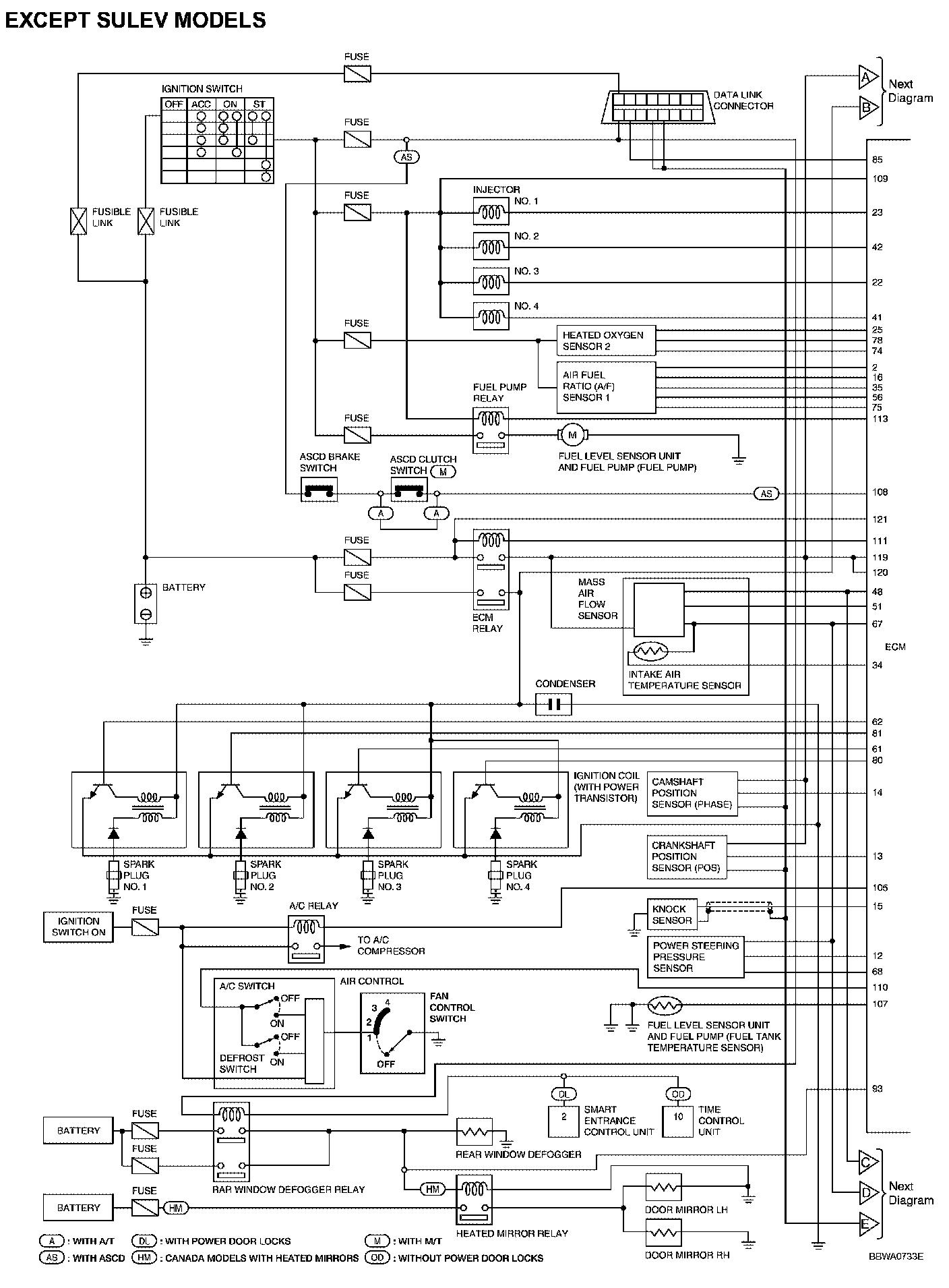

Circuit Diagram Except Sulev Models Part 2:
