Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

AMBIENT SENSOR

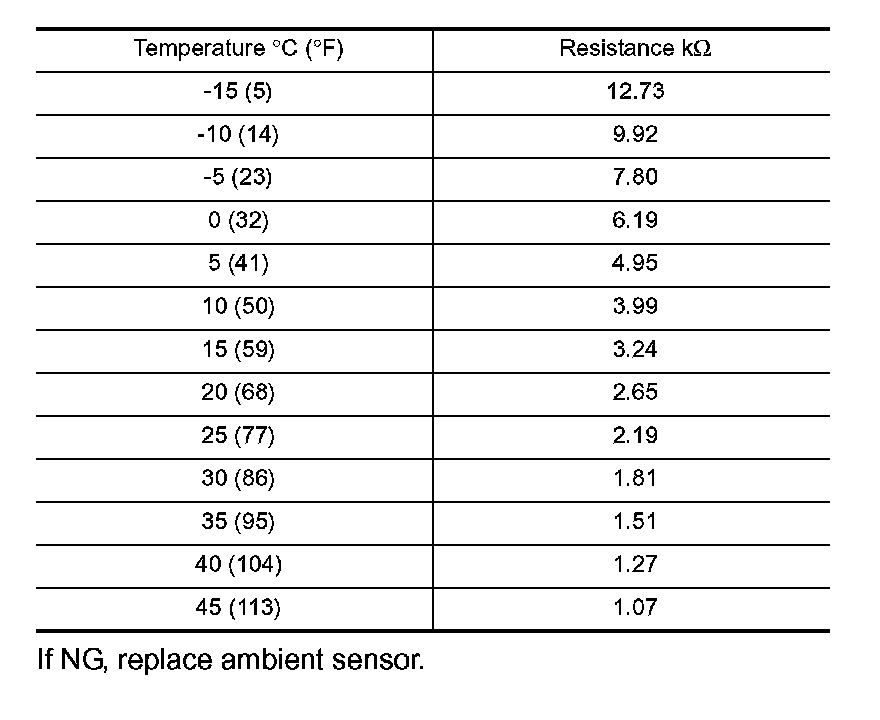

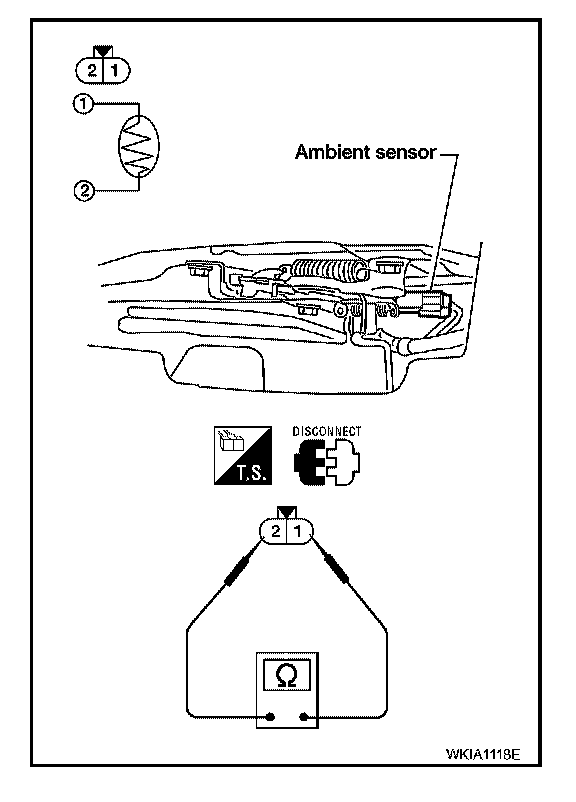

After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the table.
