Starter Motor: Service and Repair

Removal




1. Disconnect the negative and positive battery cables.
2. Remove the engine undercover (M/T) or the air duct, fresh air intake hose, and air cleaner lid (A/T).

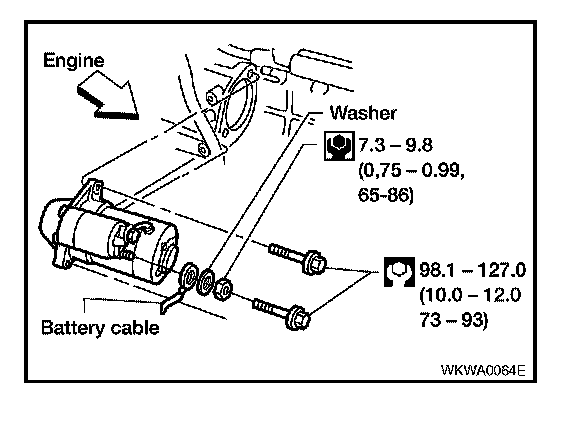

3. Disconnect the starter harness connectors.

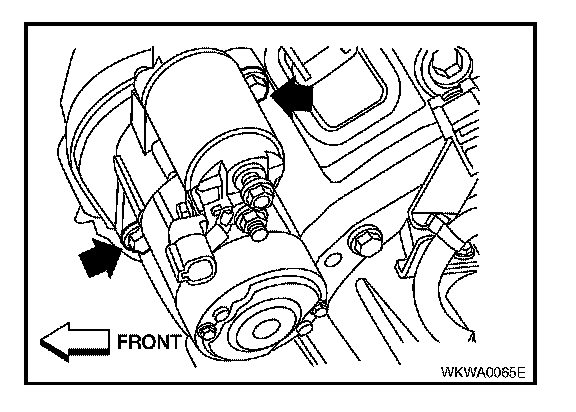

4. Remove the two starter mounting bolts.
5. Remove the starter.

Installation




To install, reverse the removal procedure.
