Work Flow
Work FlowHOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In general, each customer feels differently about a problem. It is important to fully understand the symptoms or conditions for a customer complaint.
Make good use of the two sheets provided, "Information from Customer" and "Diagnostic Worksheet", to perform the best troubleshooting possible. Work Flow

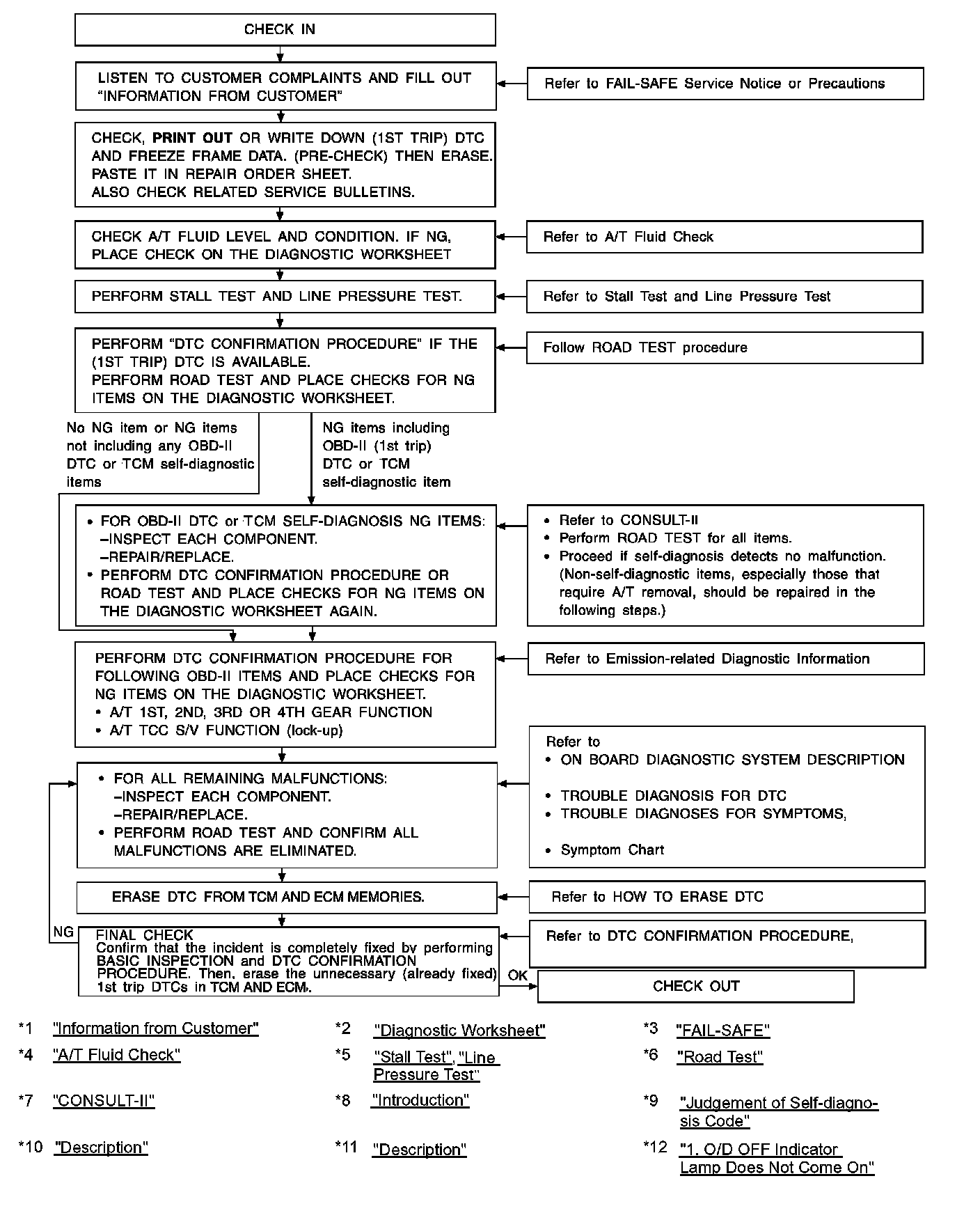

Work Flow Chart (part 1):

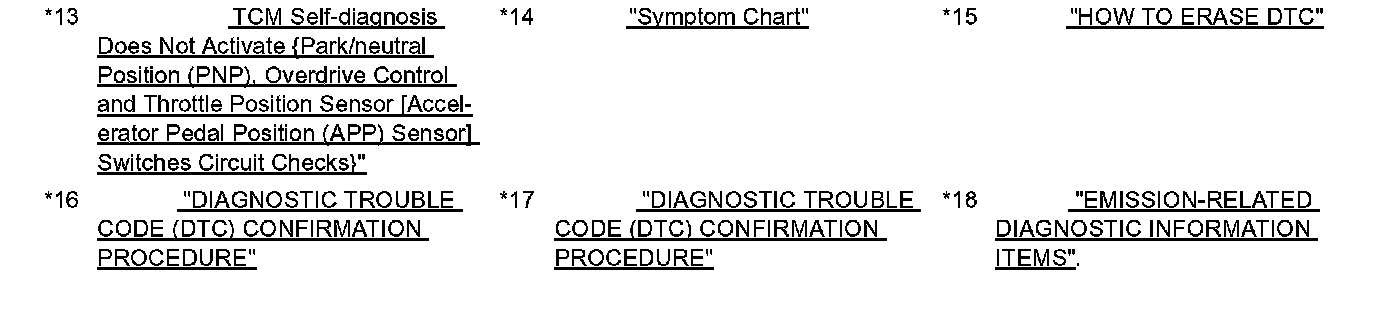

Work Flow Chart (part 2):
