Oil Checking

M/T OIL

Checking

OIL LEAKAGE AND OIL LEVEL





1. Check that oil is not leaking from transaxle.

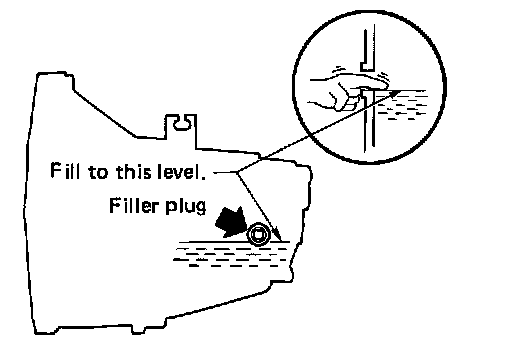

2. Check oil level from filler plug mounting hole as shown.

CAUTION: Never start the engine while checking the oil level.

3. Install the filler plug in the transaxle case using a new gasket.
Filler plug: 10 - 19 Nm (1.0 - 2.0 kg-m, 87 - 173 inch lbs.)

CAUTION: Do not reuse gasket.
