Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value

PREPARATION





Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

TCM Harness Connector Terminal Layout:

TCM INSPECTION TABLE

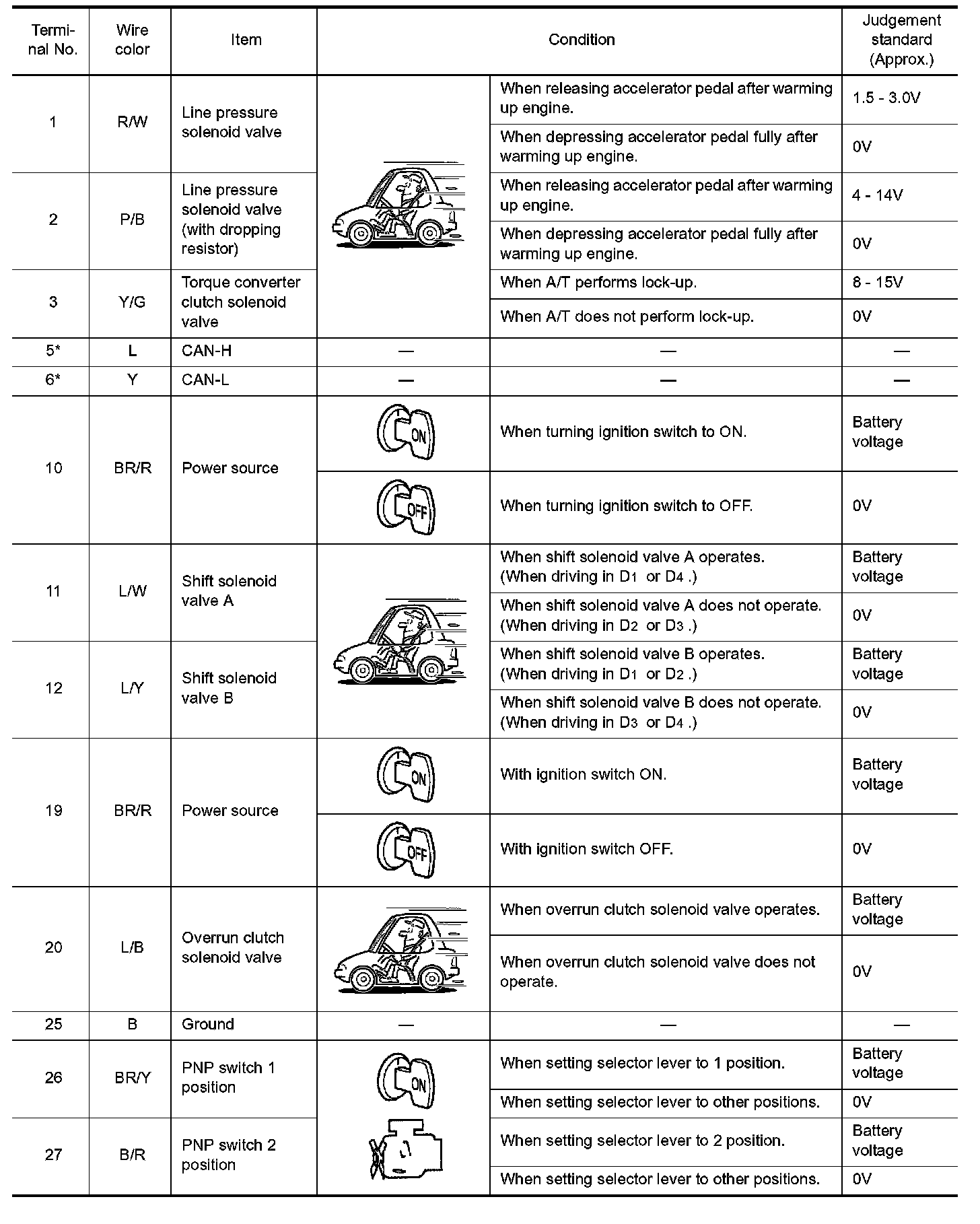

TCM Inspection Table (part 1):

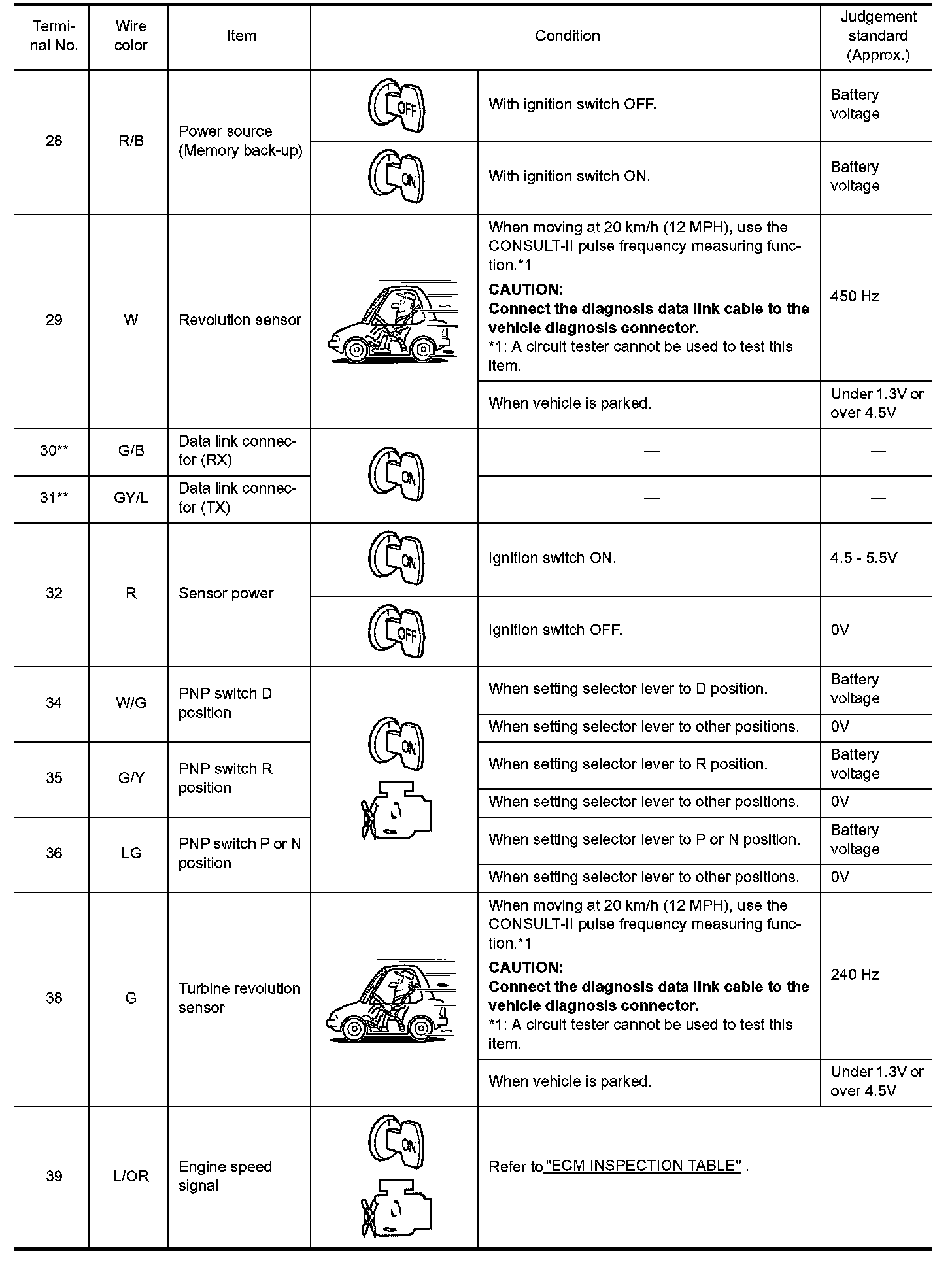

TCM Inspection Table (part 2):

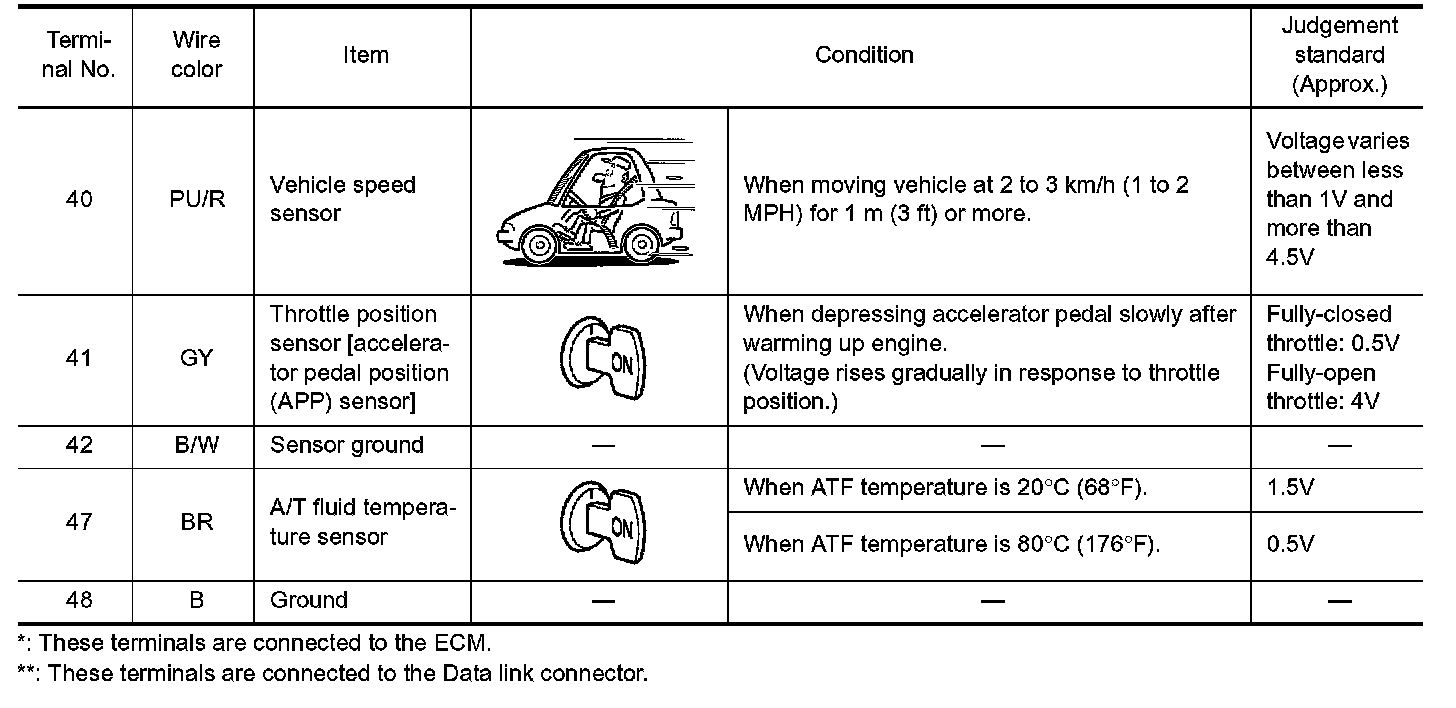

TCM Inspection Table (part 3):

(Data are reference values.)
