Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Clutch and Brakes
Clutch and Brakes

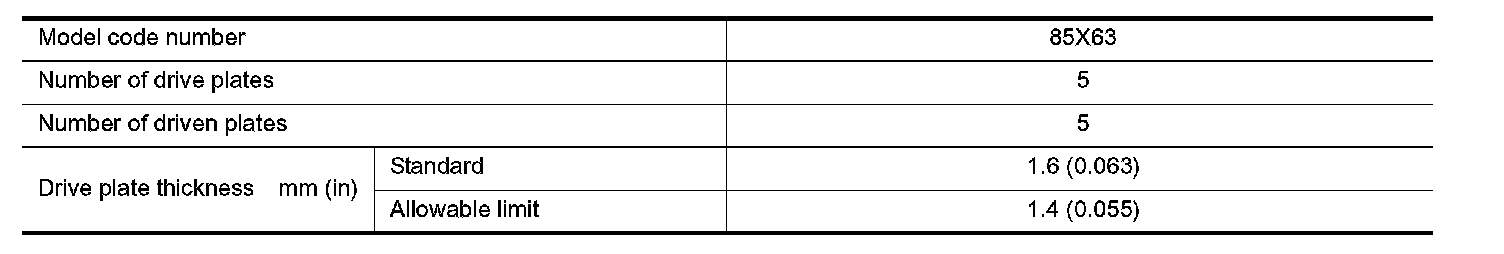

Reverse Clutch:

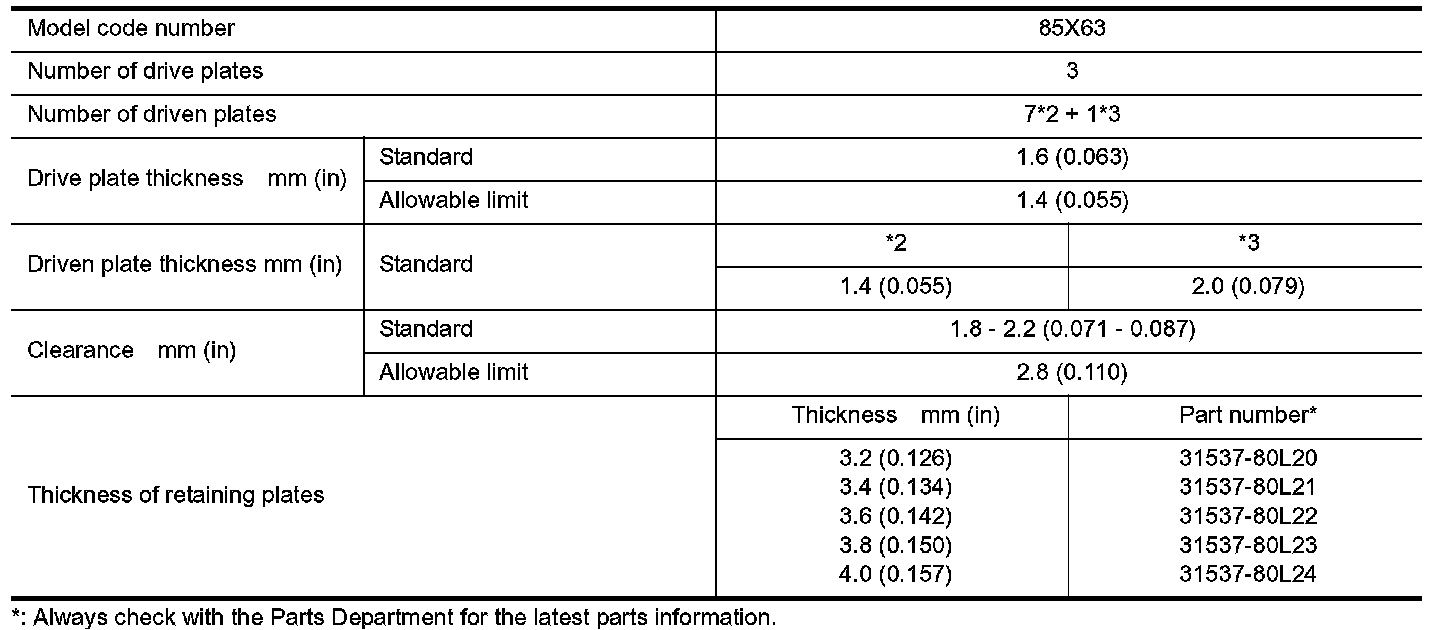

High Clutch:

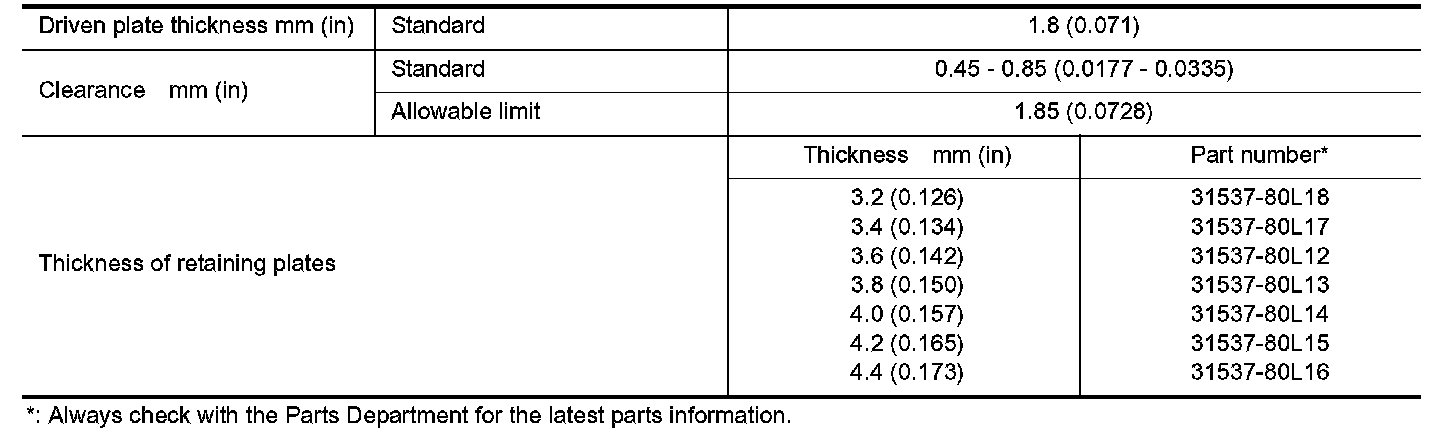

Forward Clutch (part 1):
Forward Clutch (part 2):

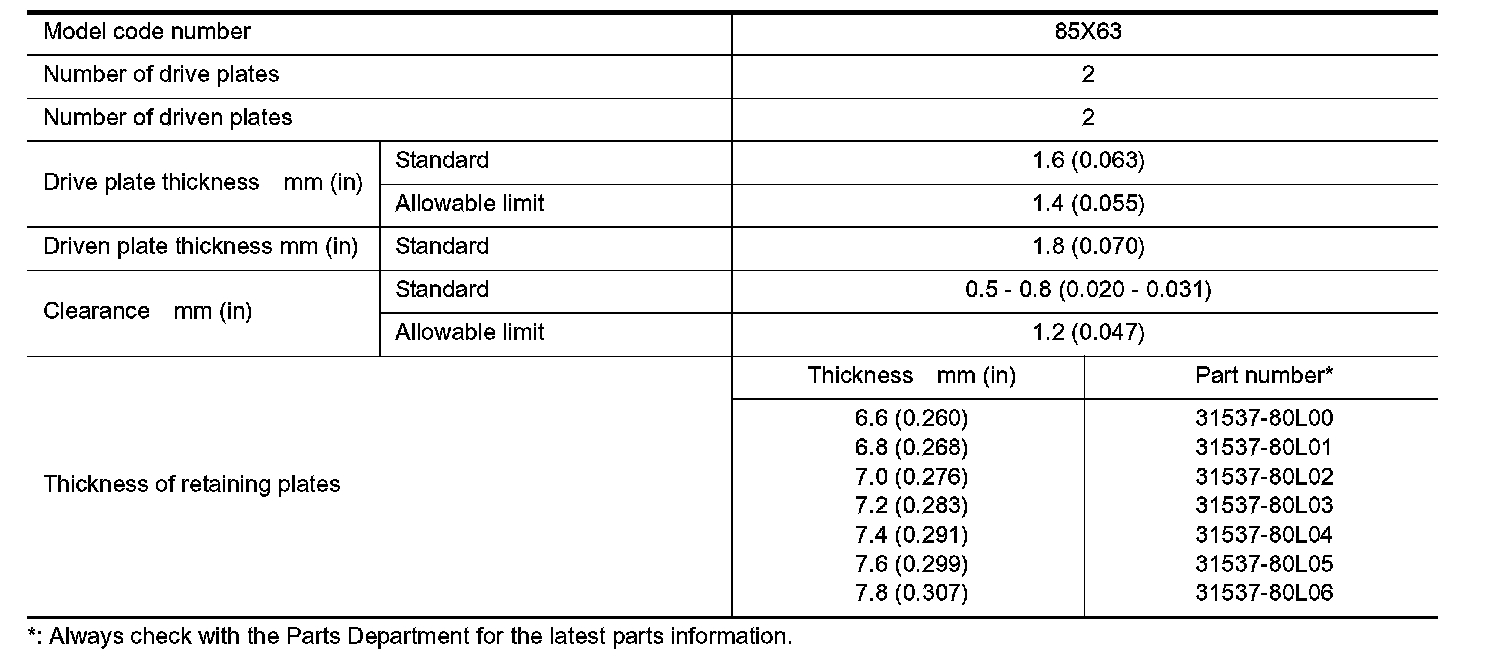

Overrun Clutch:

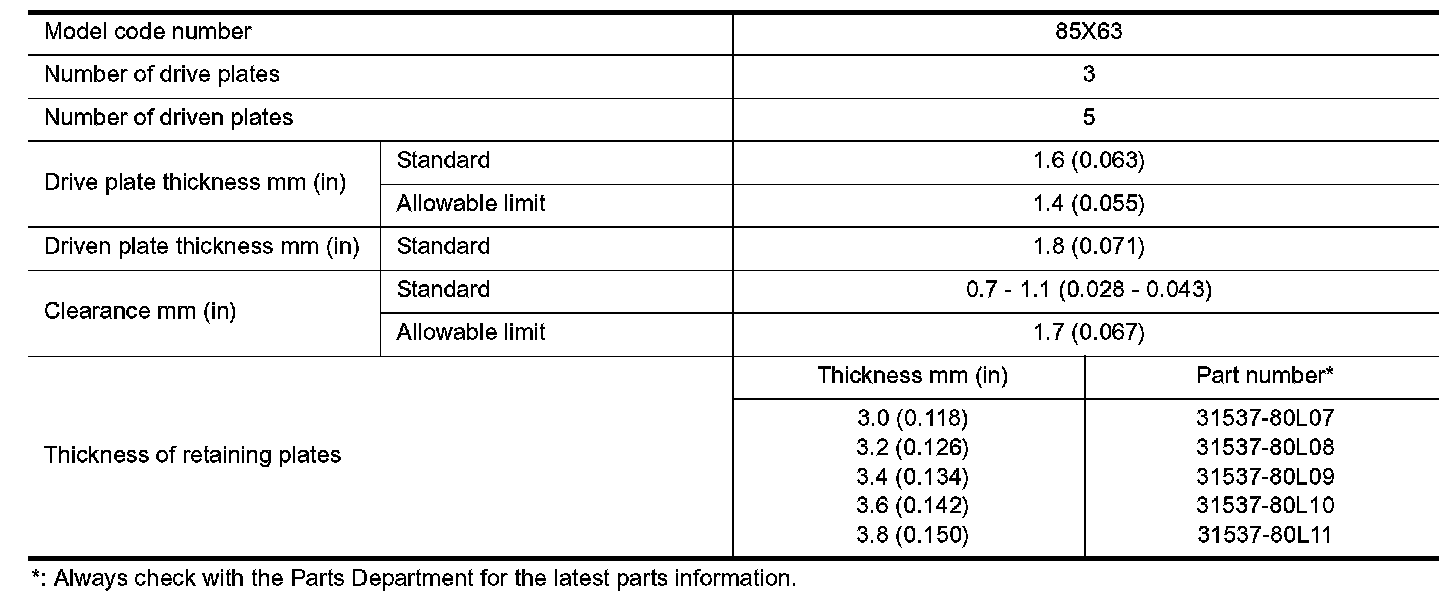

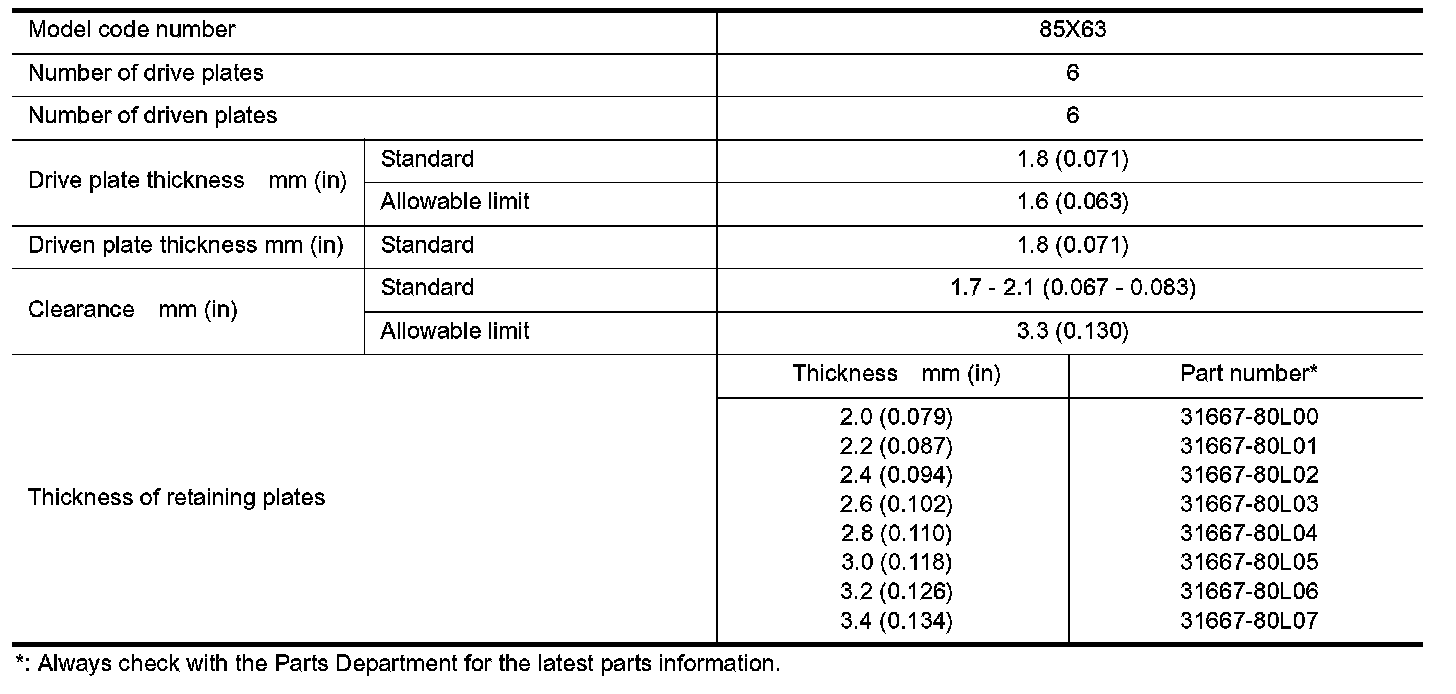

Low & Reverse Brake:

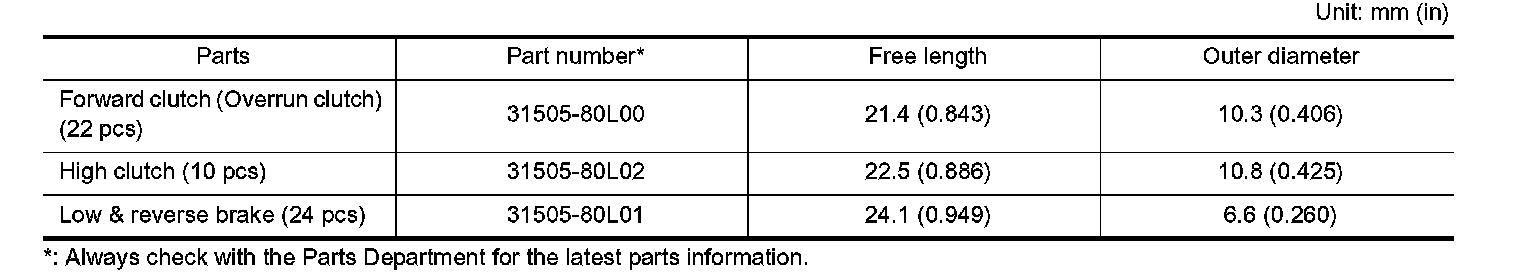

Clutch And Brake Return Springs:

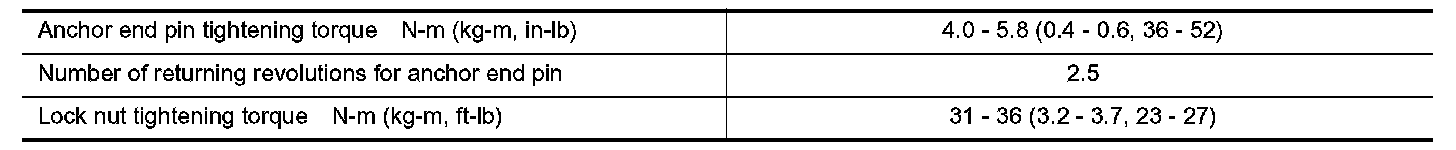

Brake Band:
