Reduction Pinion Gear
Reduction Pinion Gear
Turning Torque:

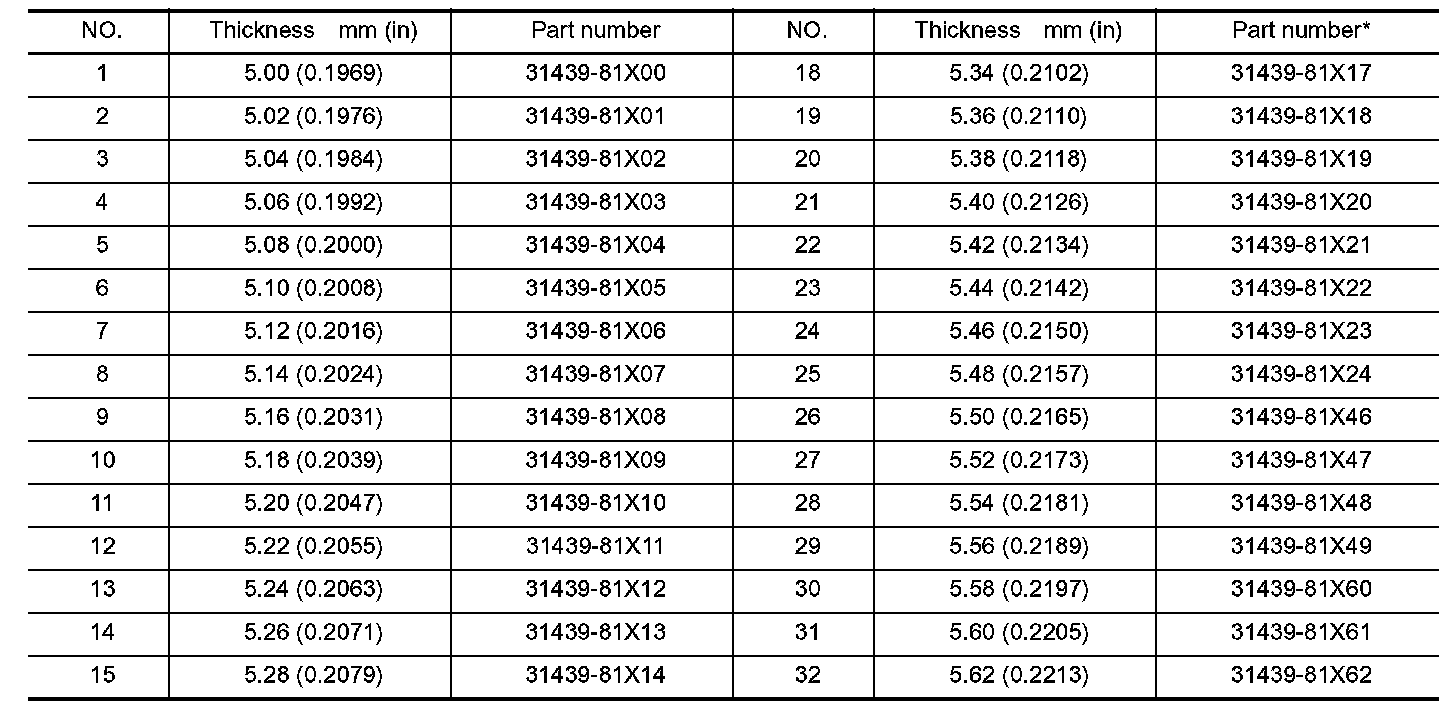

Reduction Pinion Gear Bearing Adjusting Shims (part 1):

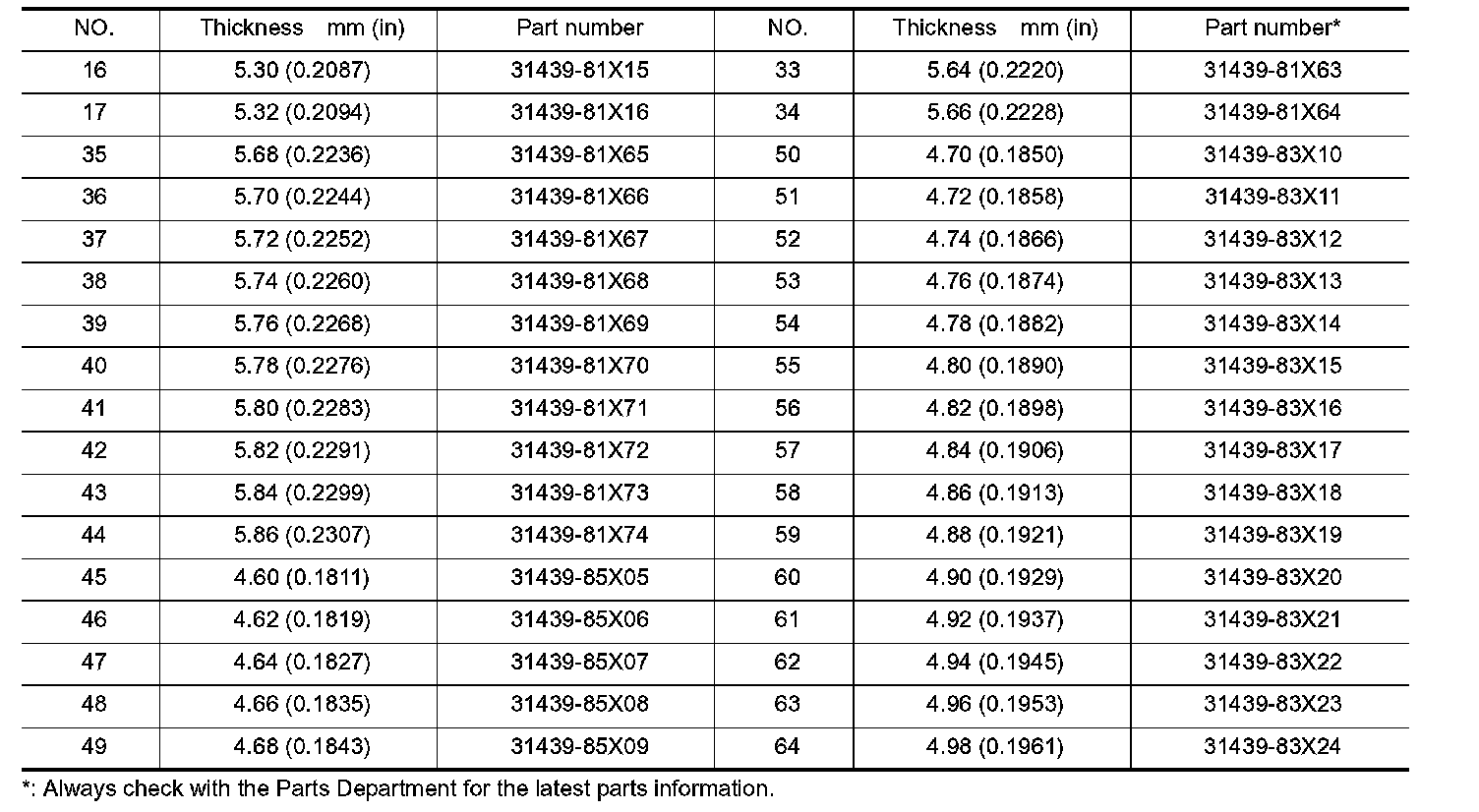

Reduction Pinion Gear Bearing Adjusting Shims (part 2):
