Clutch, M/T
>>
Pressure Plate
Pressure Plate

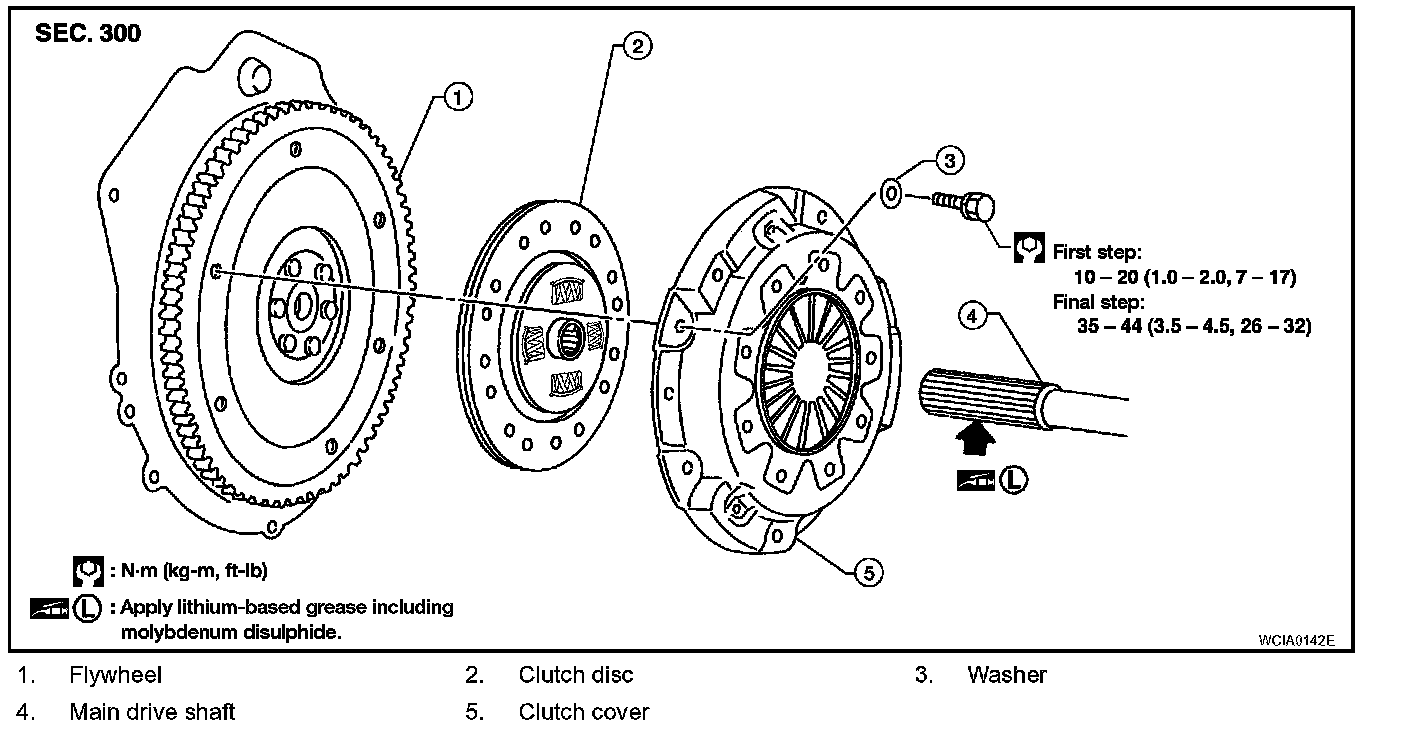

Components:

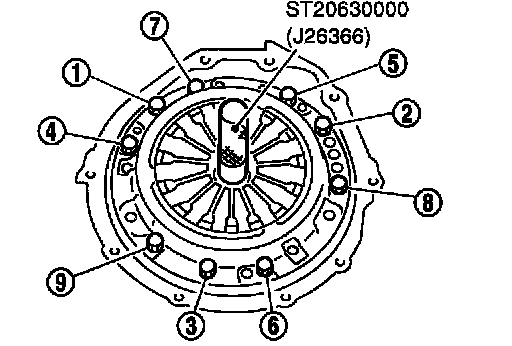

Tighten the bolts in numerical order in two steps as shown.
First step
10 - 20 Nm (1.0 - 2.0 kg-m, 7 - 14 ft. lbs.)
Final step
35 - 44 Nm (3.5 - 4.5 kg-m, 26 - 32 ft. lbs.)
