Passenger Compartment Electrical Units Location

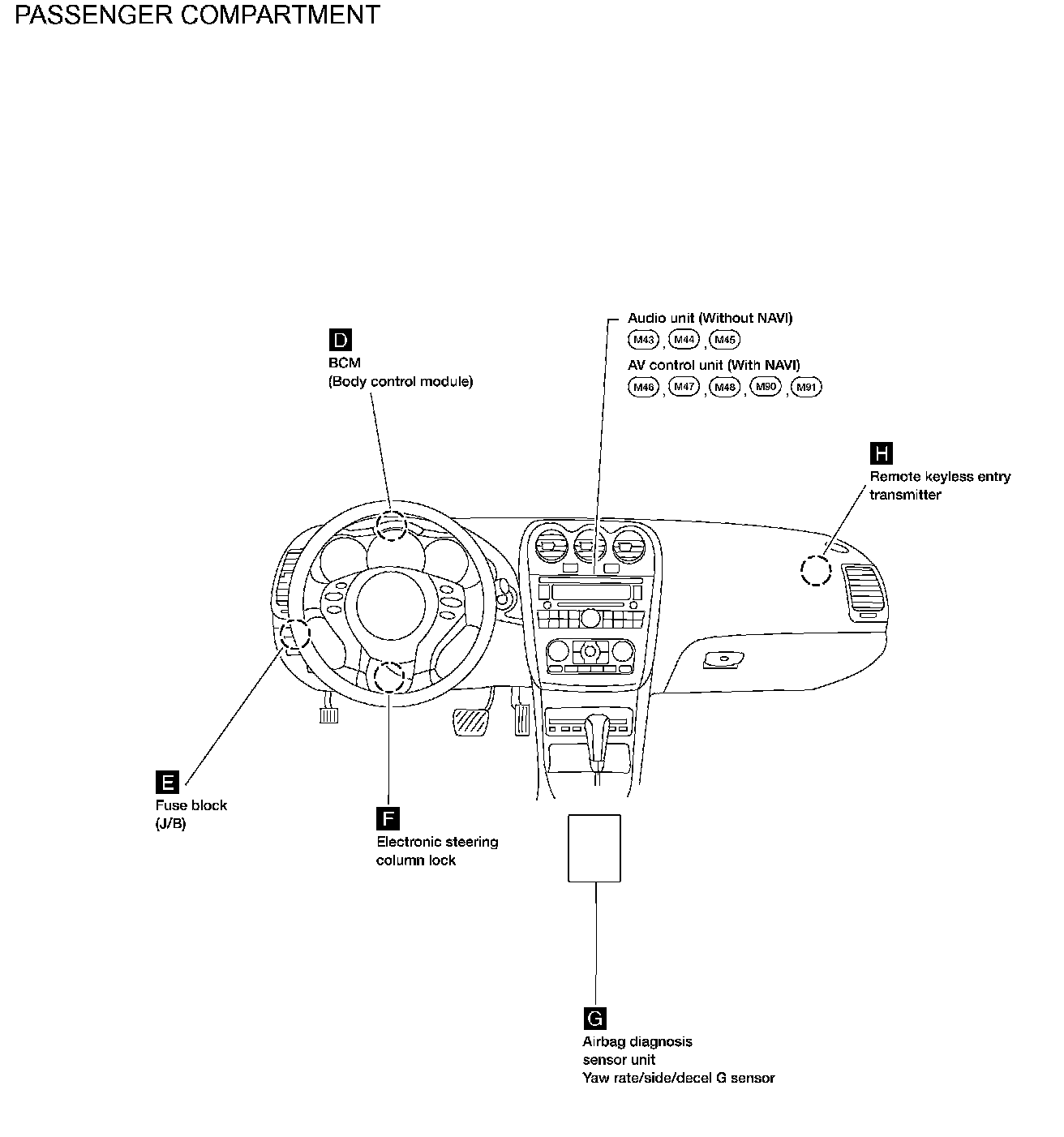

Electrical Units Location Passenger Compartment (Part 1):

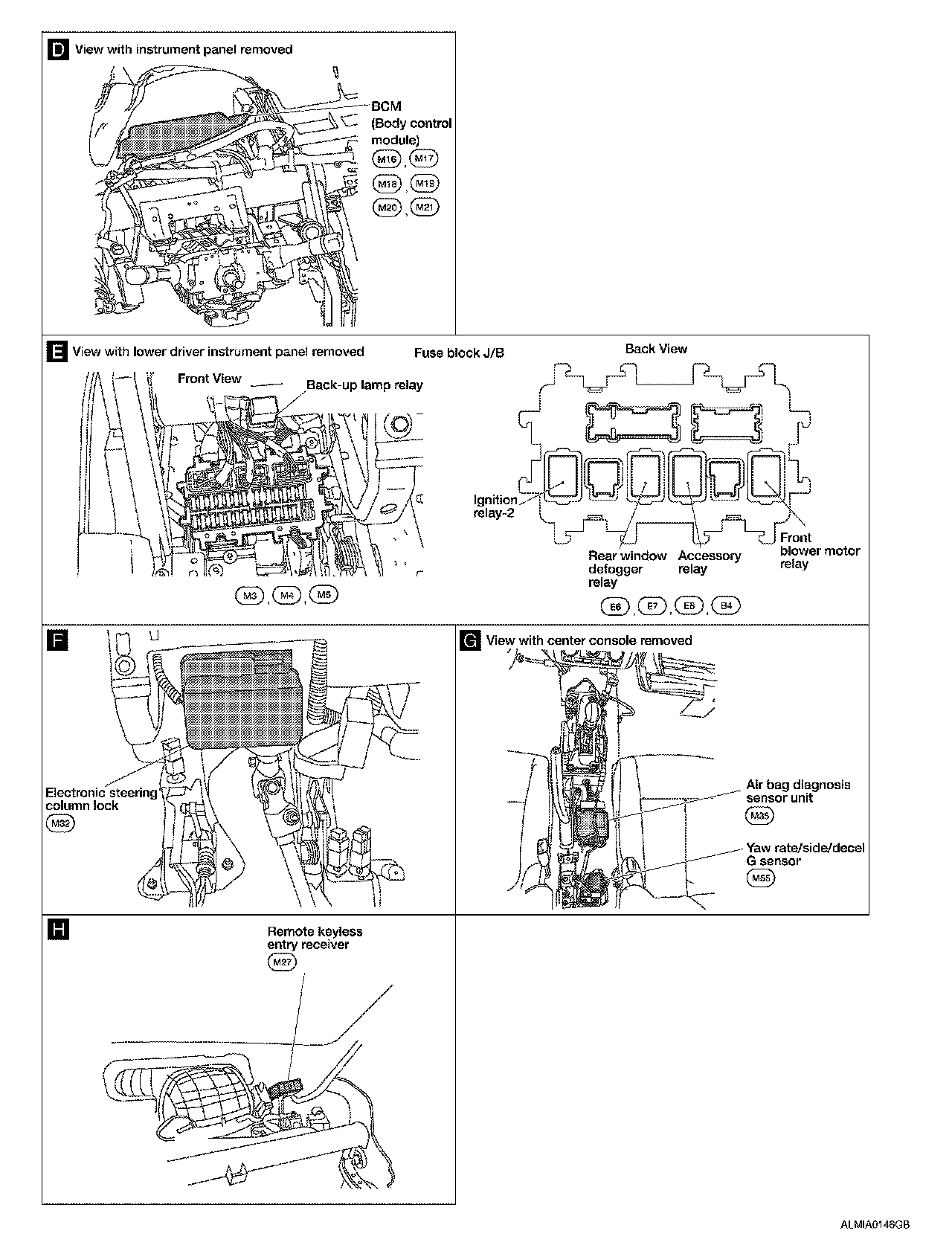

Electrical Units Location Passenger Compartment (Part 2):
