Combination Switch Input Circuit

COMBINATION SWITCH INPUT CIRCUIT

Step 1-3:

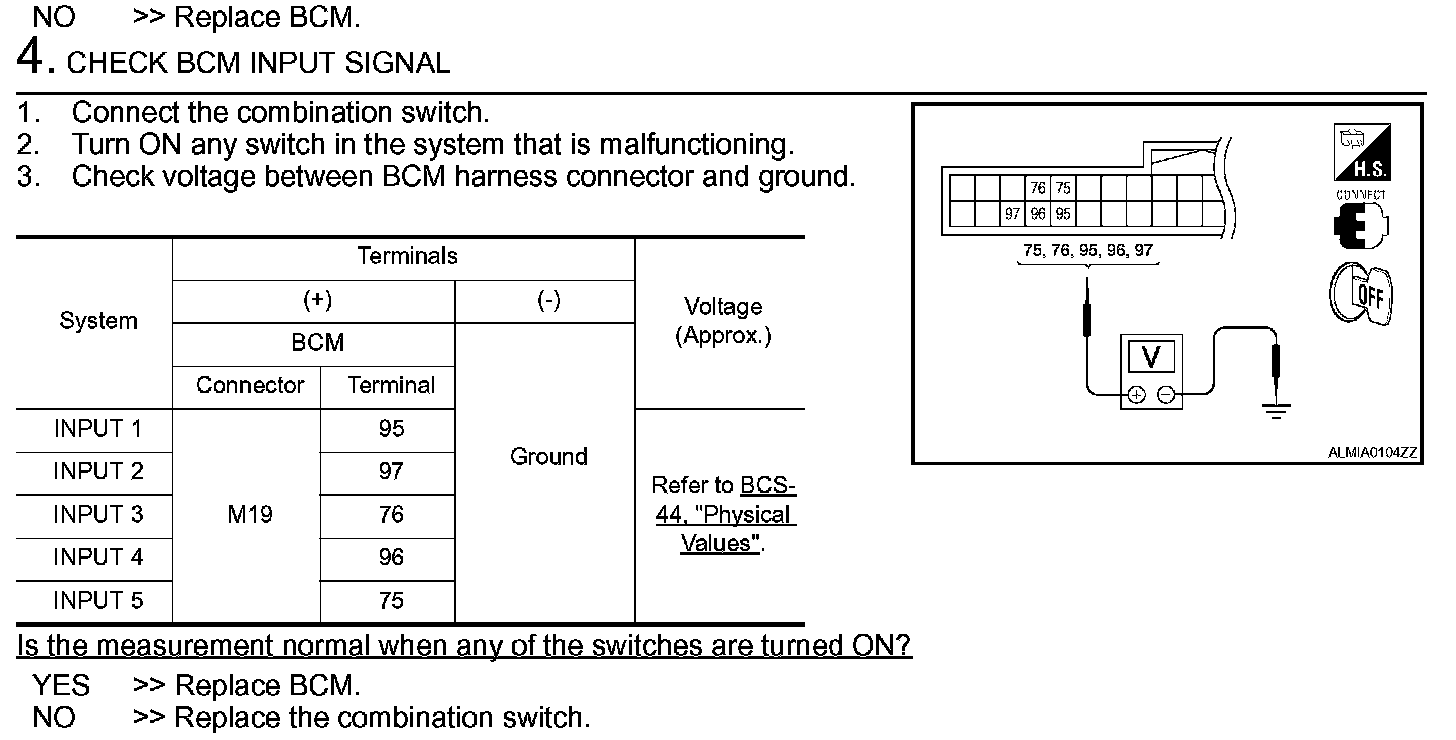

Step 3 (Continued)-4:

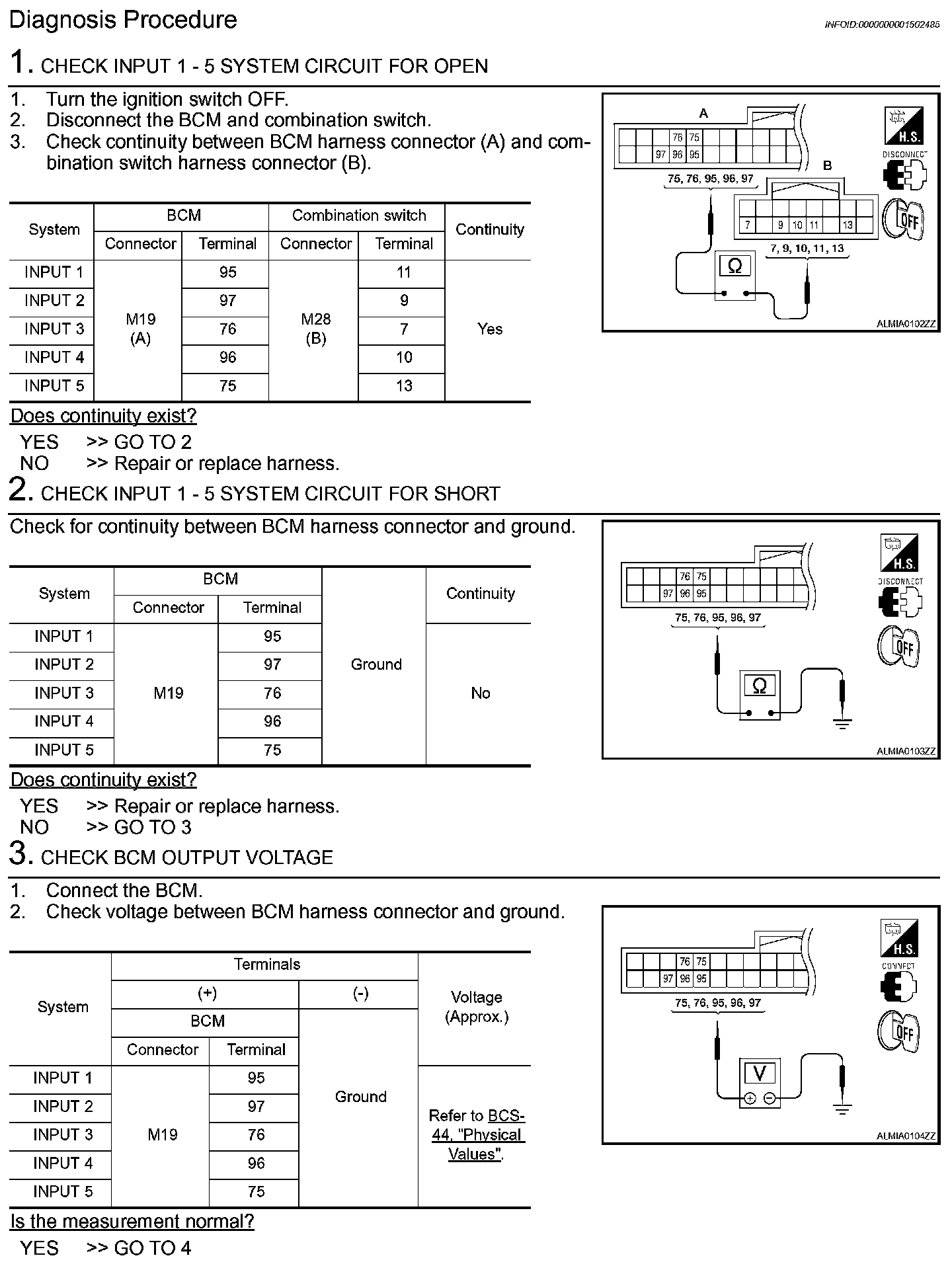

Diagnosis Procedure

Step 1:

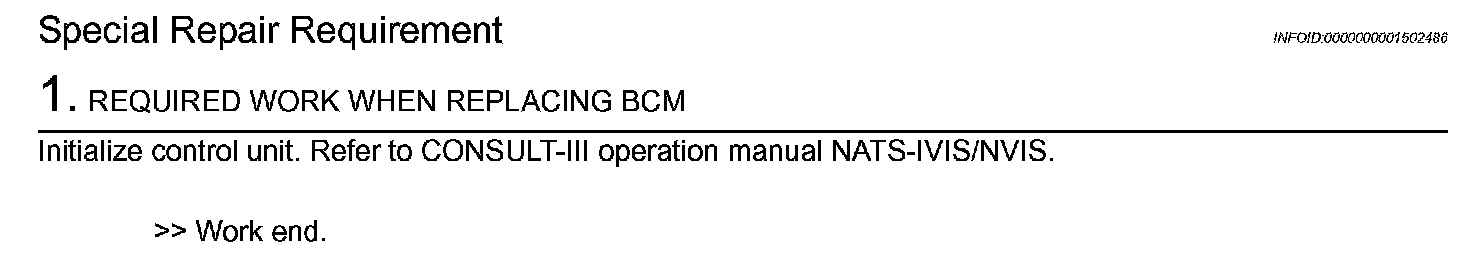

Special Repair Requirement
