Combination Switch Output Circuit
Combination Switch Output Circuit
COMBINATION SWITCH OUTPUT CIRCUIT
Step 1-4:

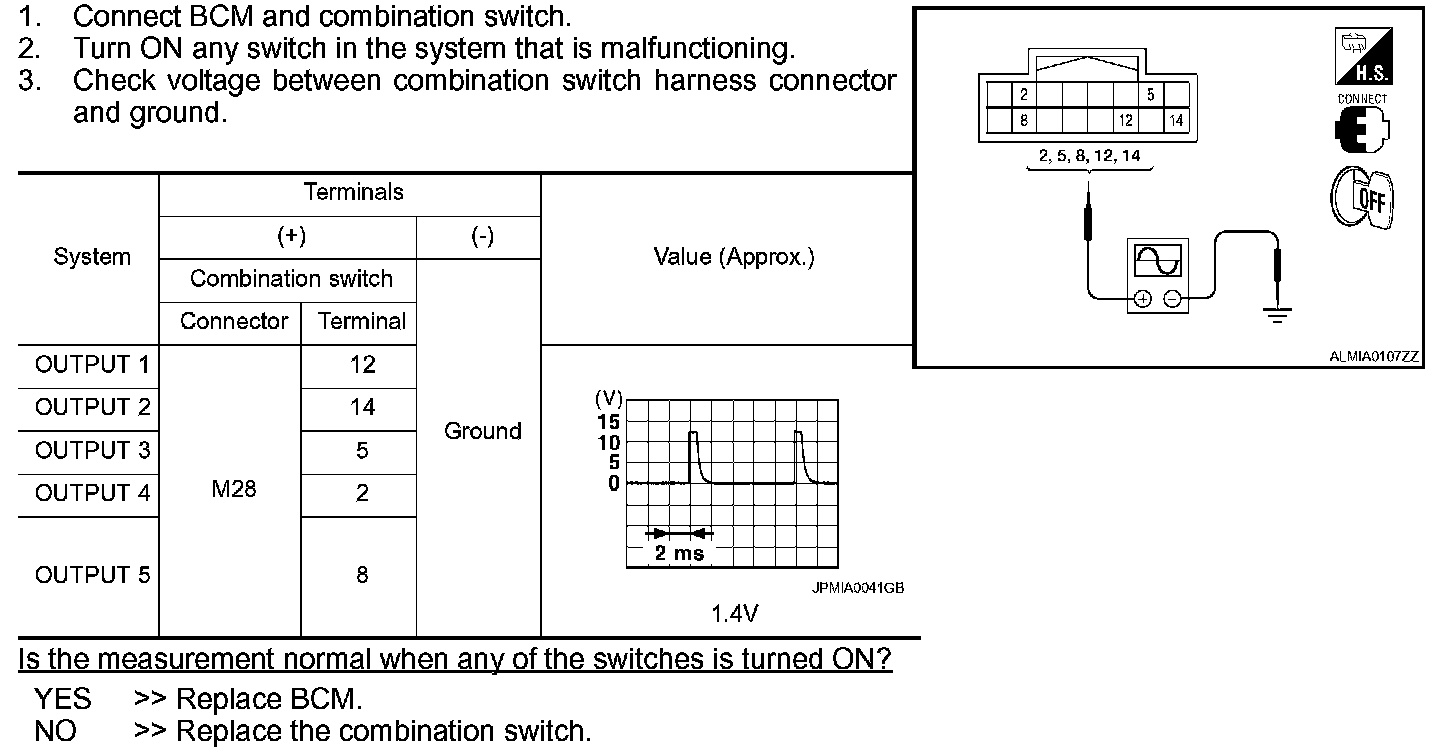

Step 4 (Continued):

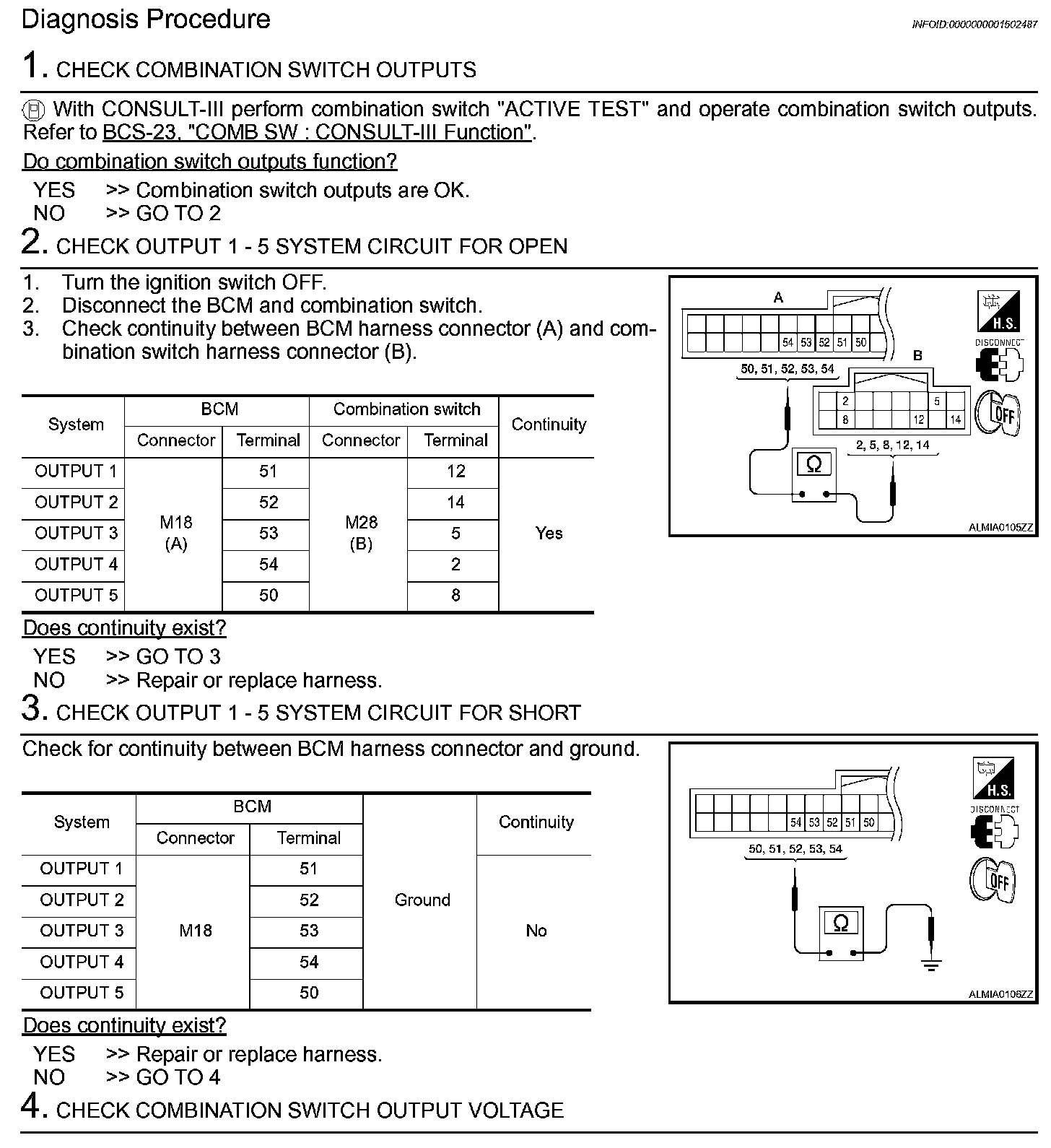

Diagnosis Procedure
Step 1:

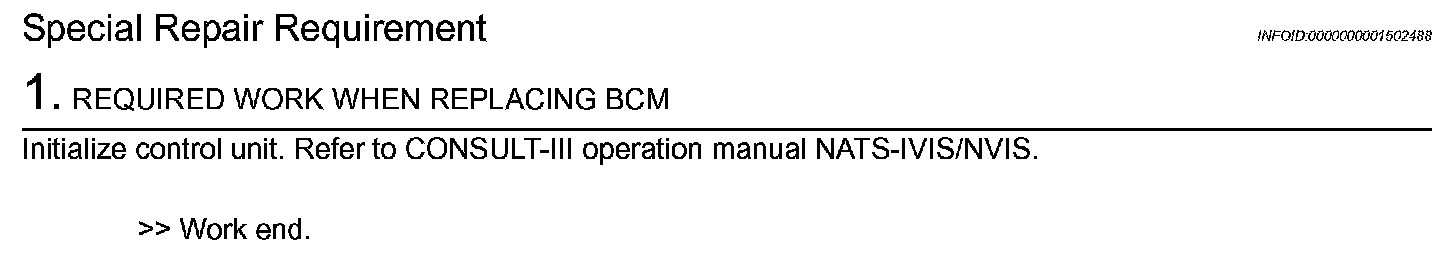

Special Repair Requirement
