Data Monitor

DATA MONITOR

NOTE: With the CONSULT-III connected to the DLC3 and the ignition switch ON, the Electronically Controlled Brake, ABS, and VDC Data List can be displayed. Follow the prompts on the tester screen to access the Data List.

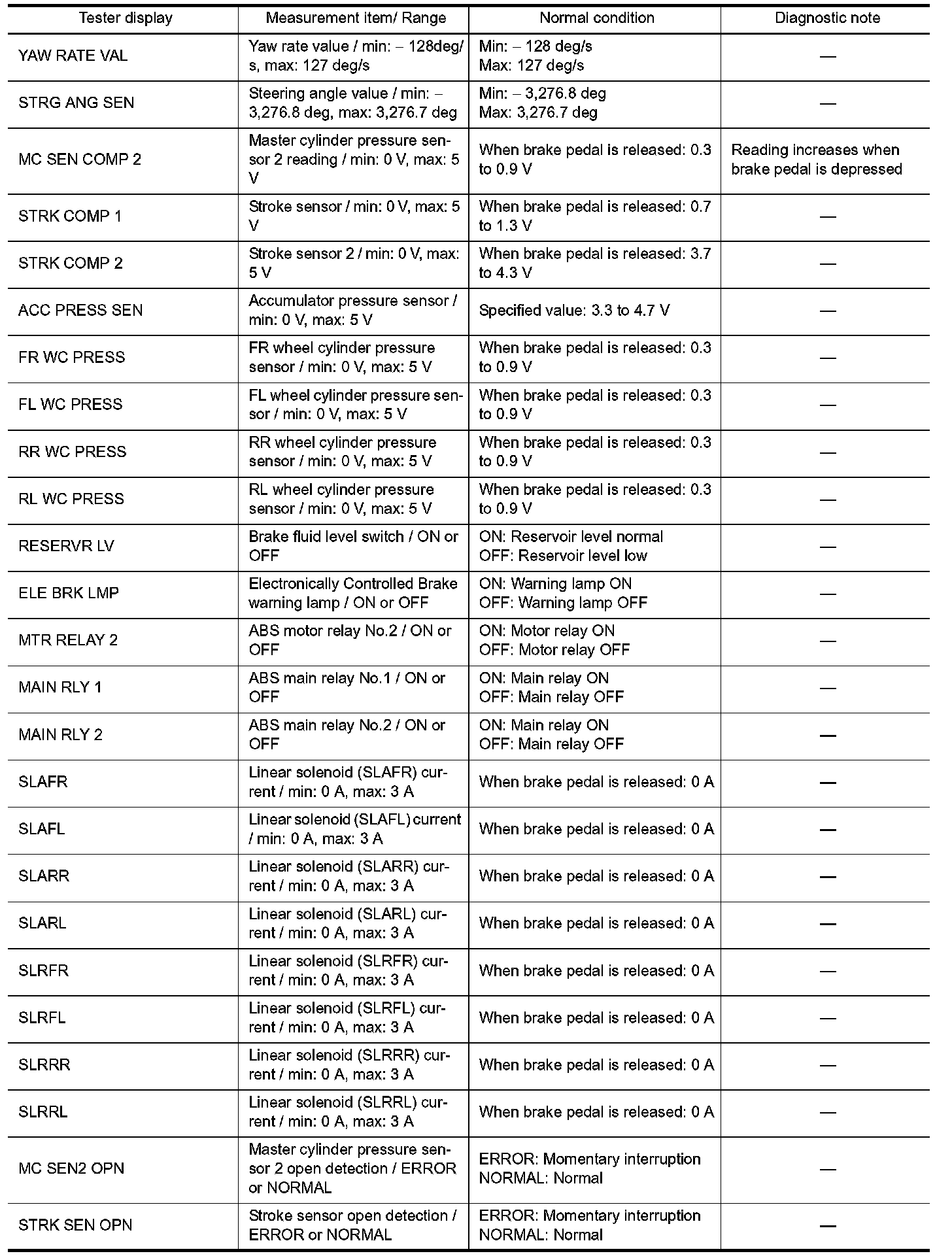

Part 1:

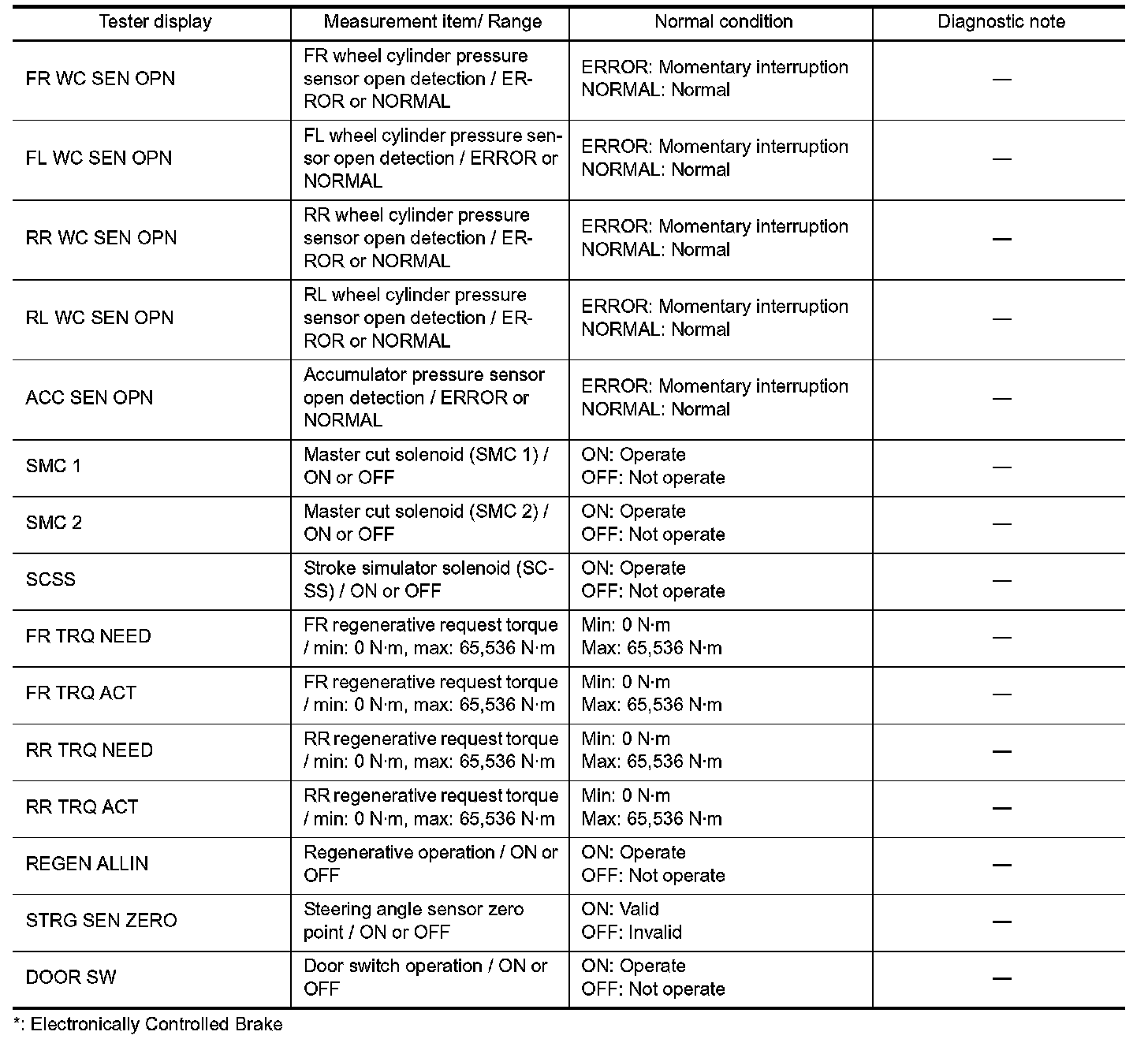

Part 2:

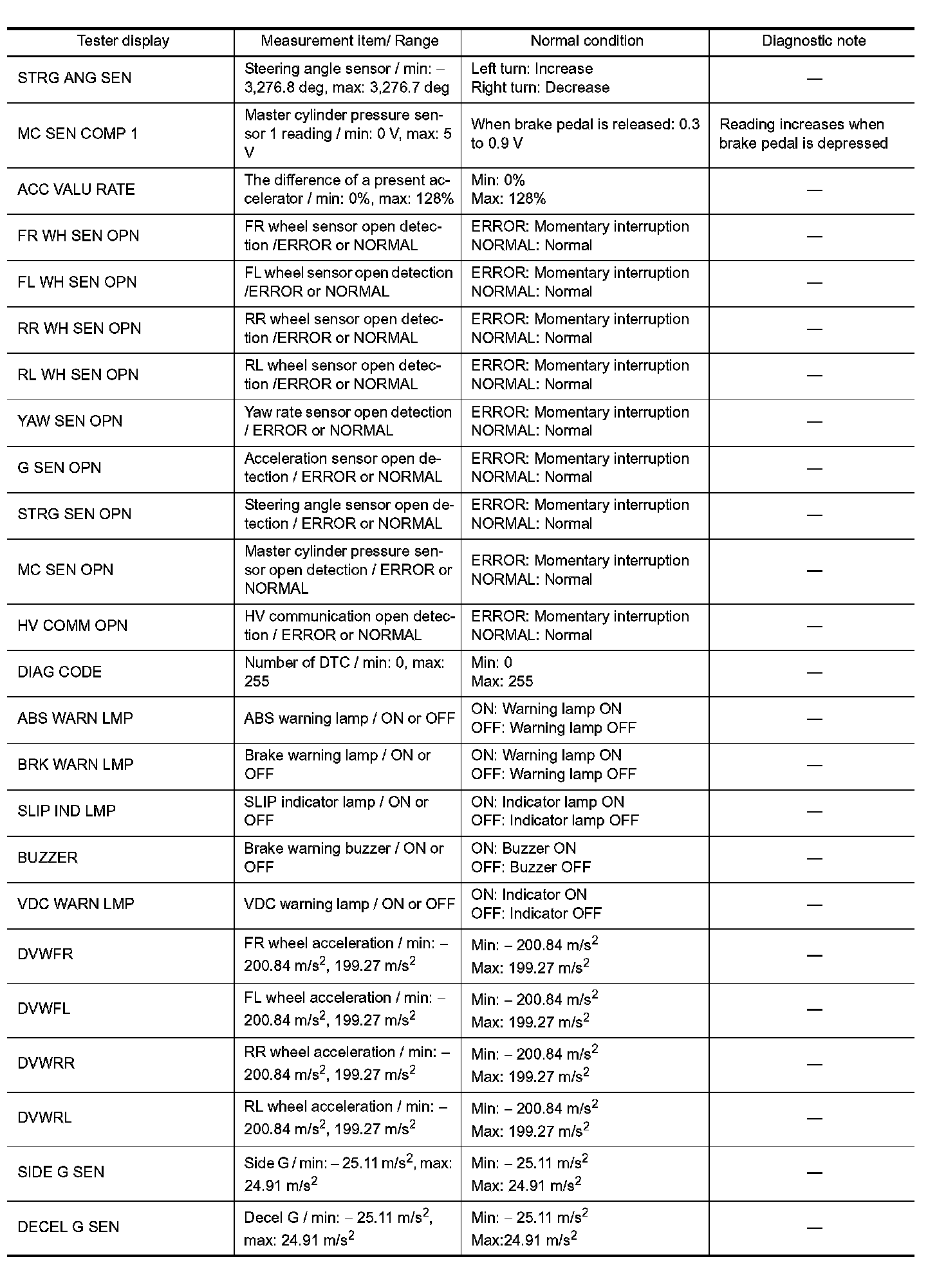

Part 3:

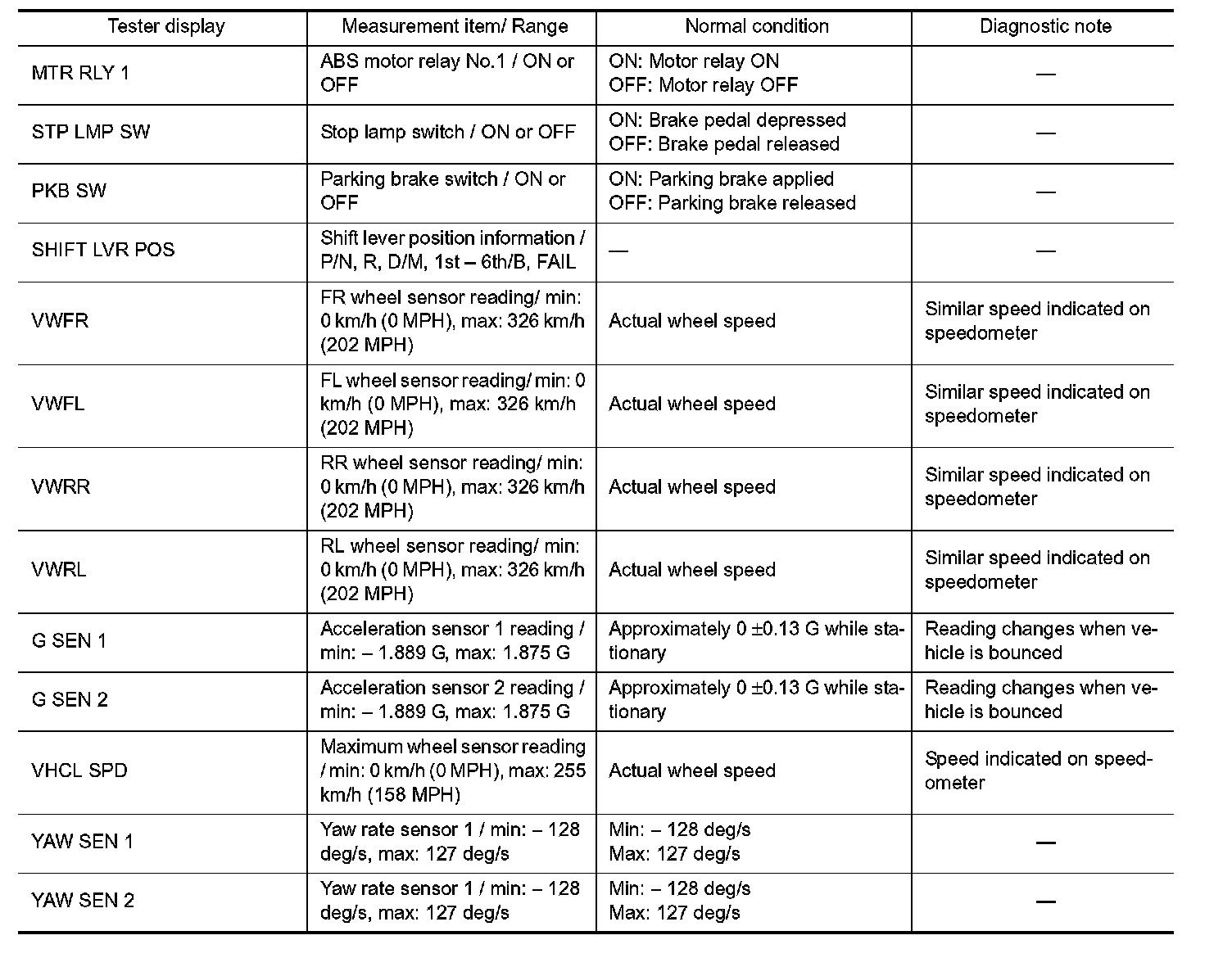

Part 4:
