Refrigerant Pressure Sensor / Switch: Service and Repair

Component Parts Location:

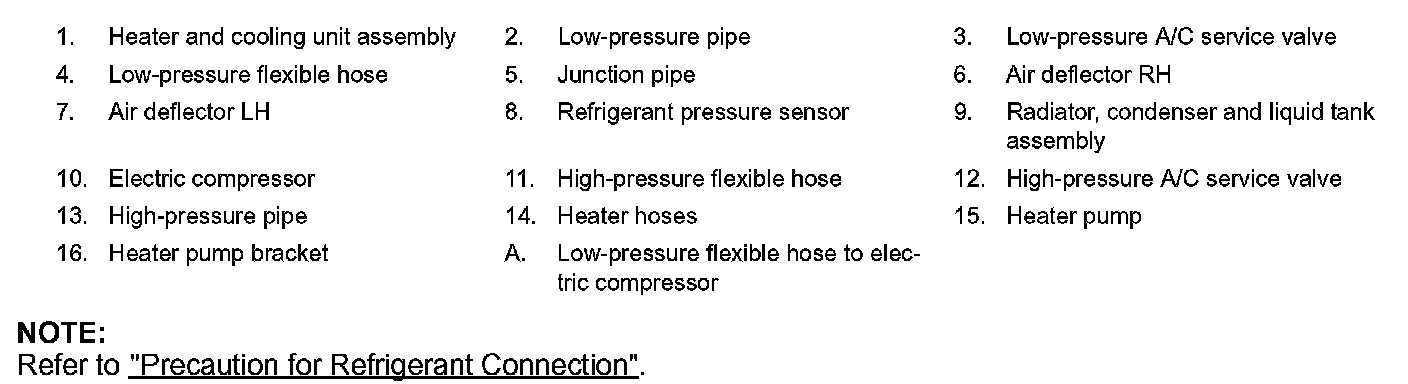

Component

Component Parts Location:

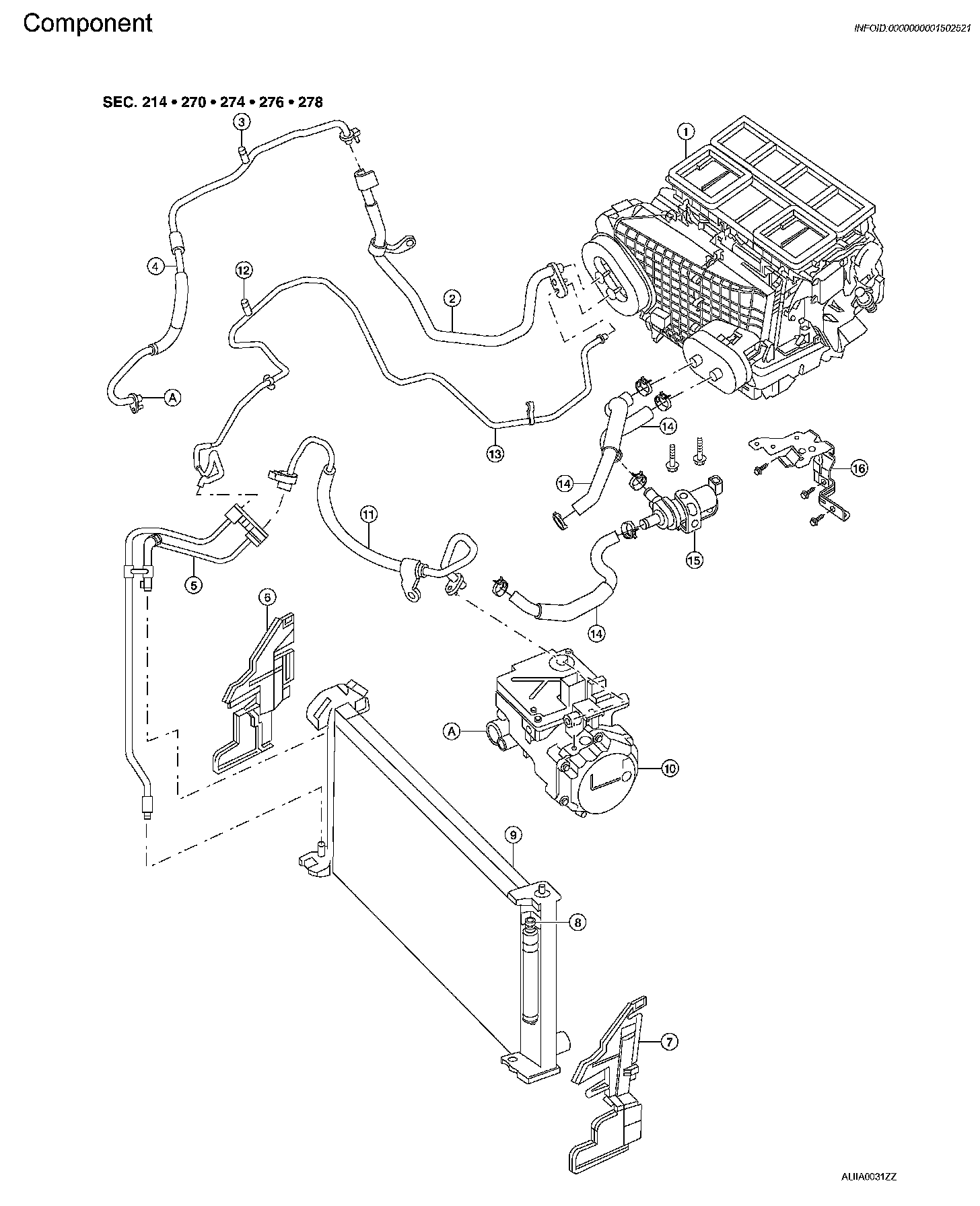

Exploded View

REFRIGERANT PRESSURE SENSOR

Removal and Installation for Refrigerant Pressure Sensor

REMOVAL
1. Discharge the refrigerant. Refer to "HFC-134a (R-134a) Service Procedure".
2. Remove the front grille.

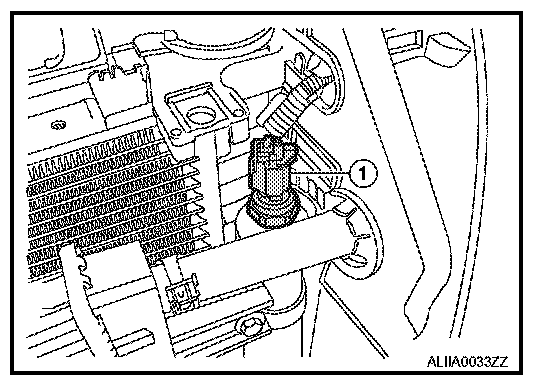

3. Disconnect the refrigerant pressure sensor connector and remove the refrigerant pressure sensor (1) from the liquid tank on the radiator, condenser and liquid tank assembly.

CAUTION: Do not damage the radiator, condenser and liquid tank assembly fins.

INSTALLATION
Installation is in the reverse order of removal.
Refer to Exploded View HA-29.

CAUTION: Replace the O-ring of the refrigerant pressure sensor with a new one, then apply electric compressor oil to it when installing it.
