Diagnose System

DIAGNOSIS SYSTEM (AUTO AMP.)

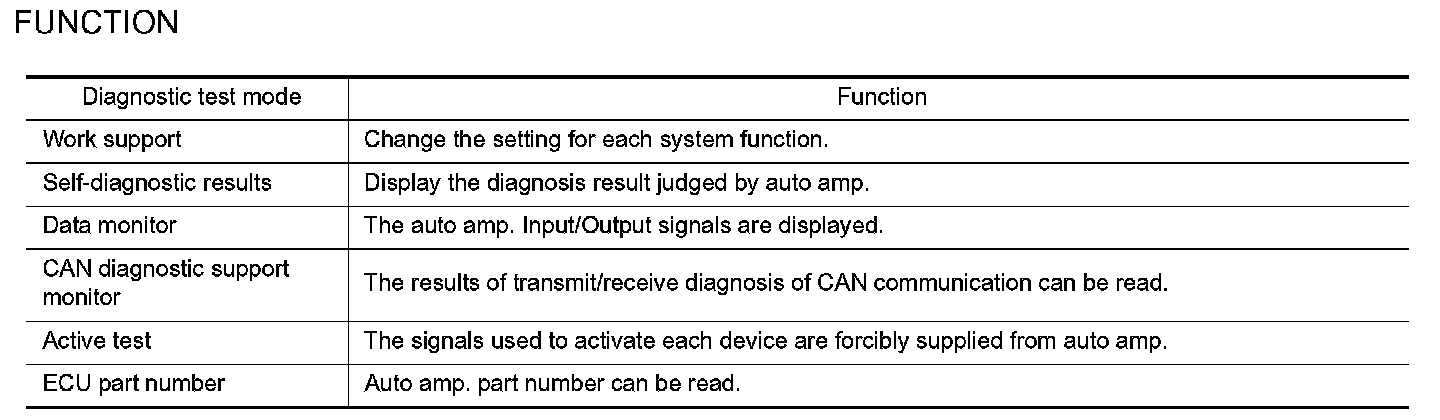

CONSULT-III Function

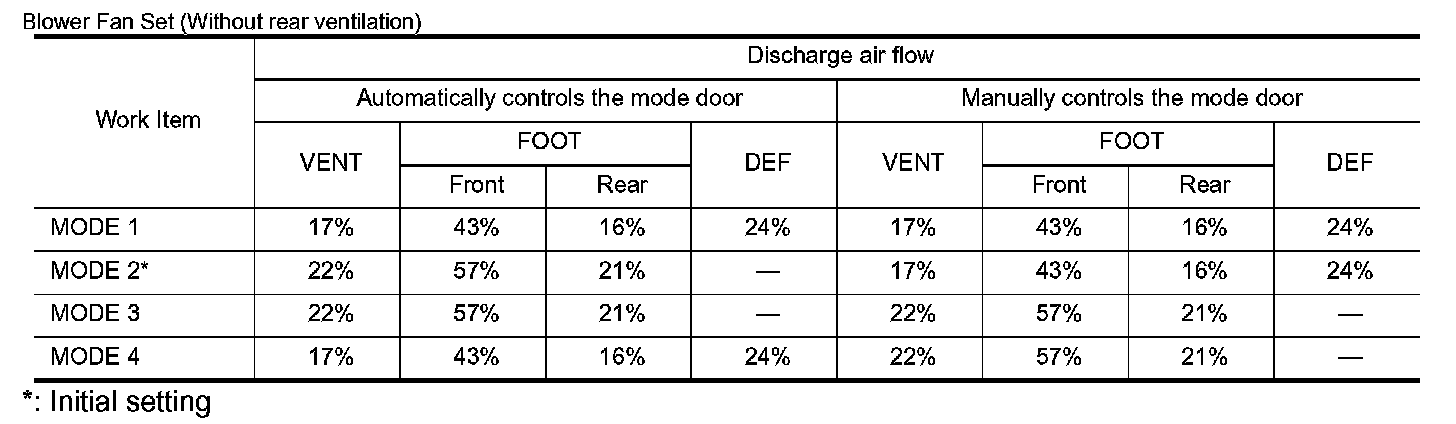

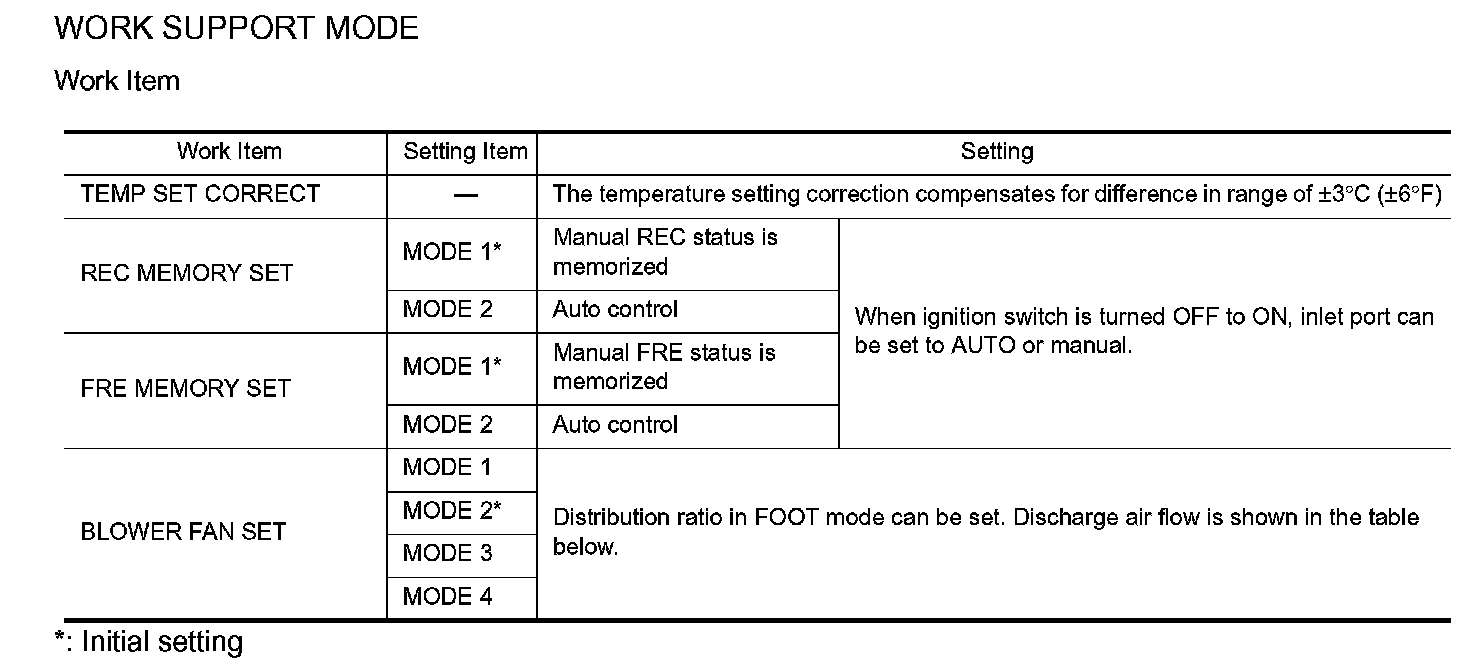

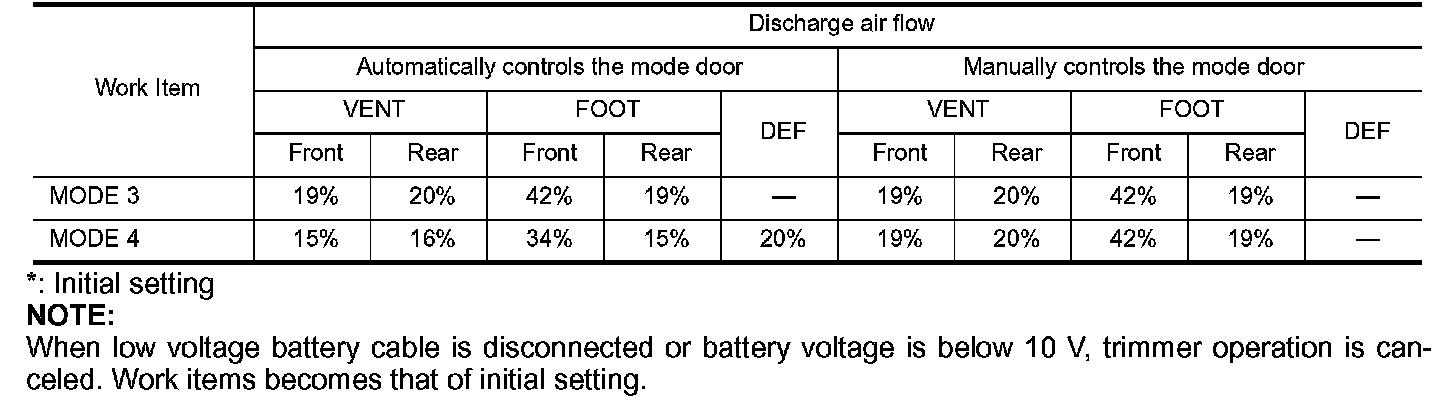

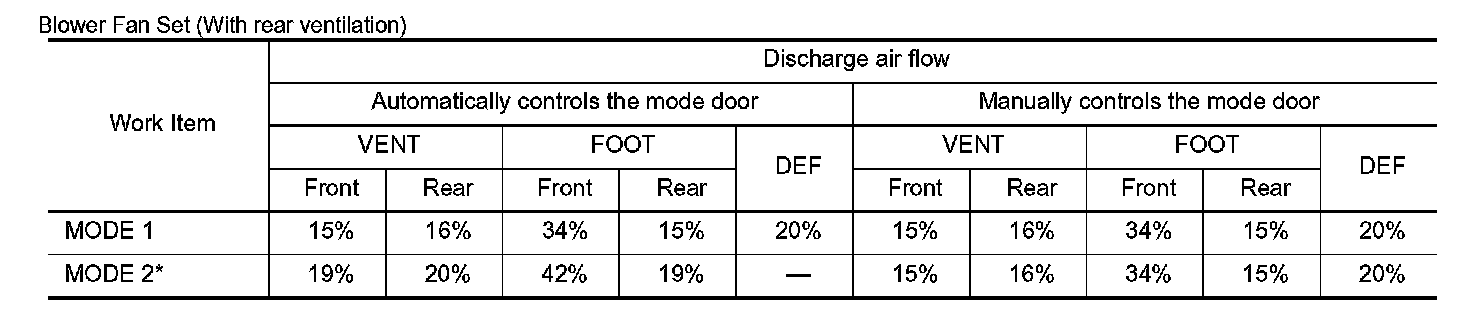

WORK SUPPORT MODE

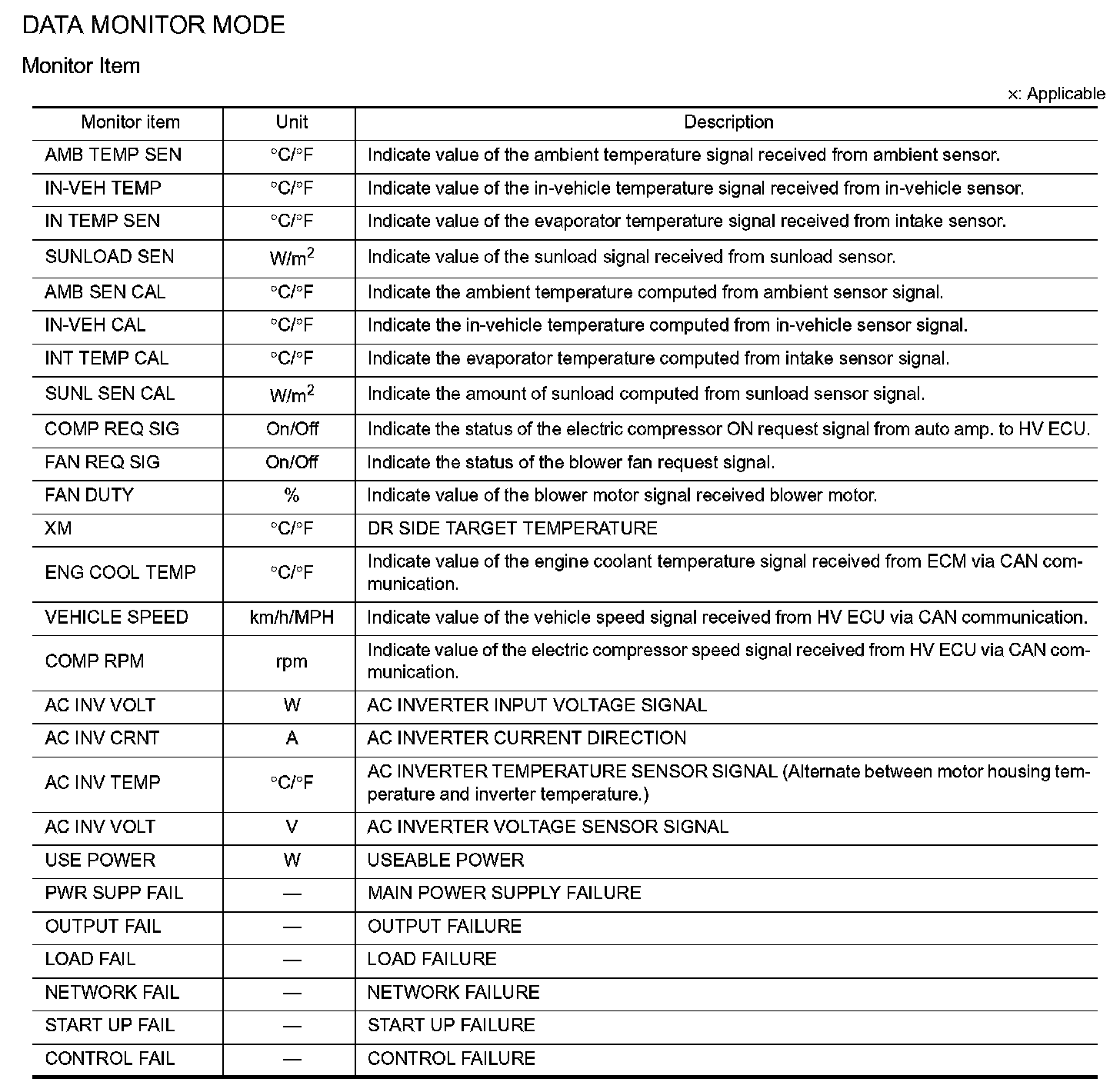

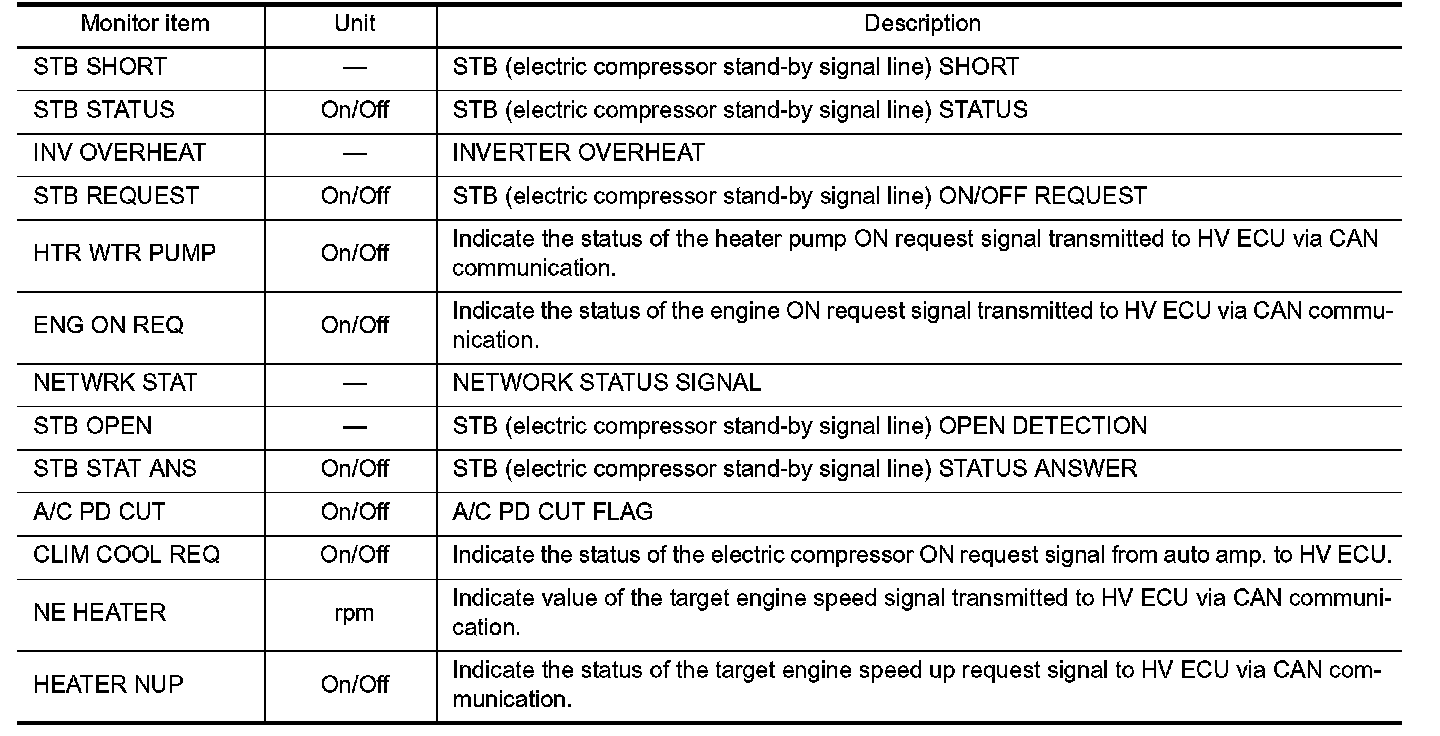

DATA MONITOR MODE

ACTIVE TEST MODE

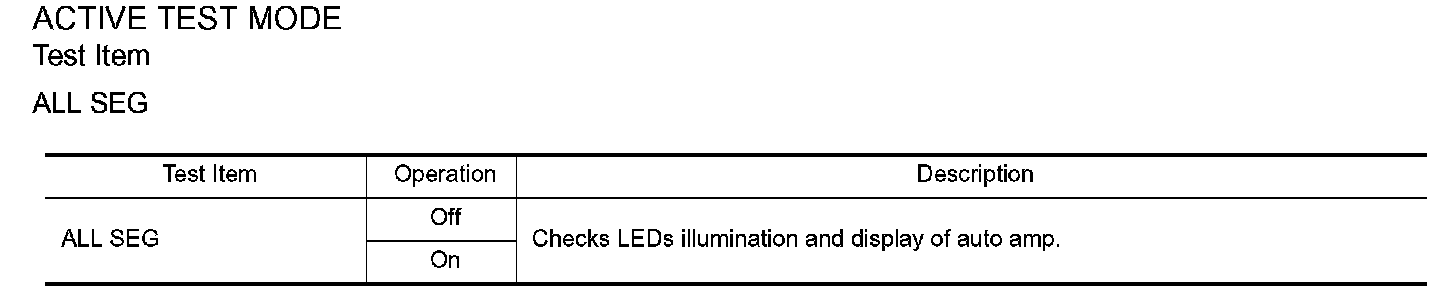

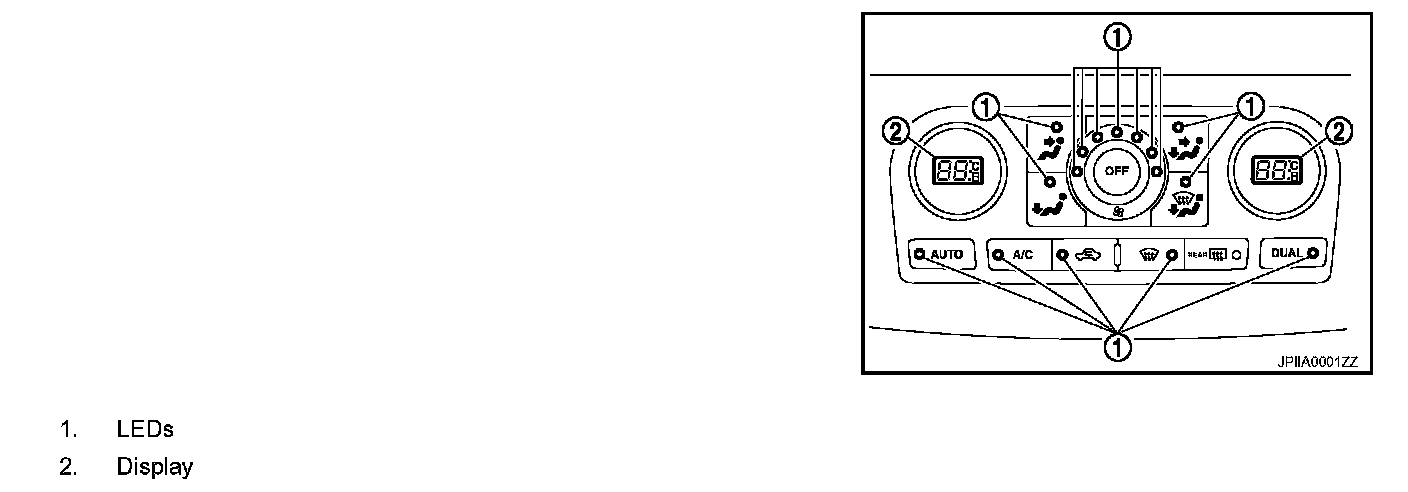

ALL SEG

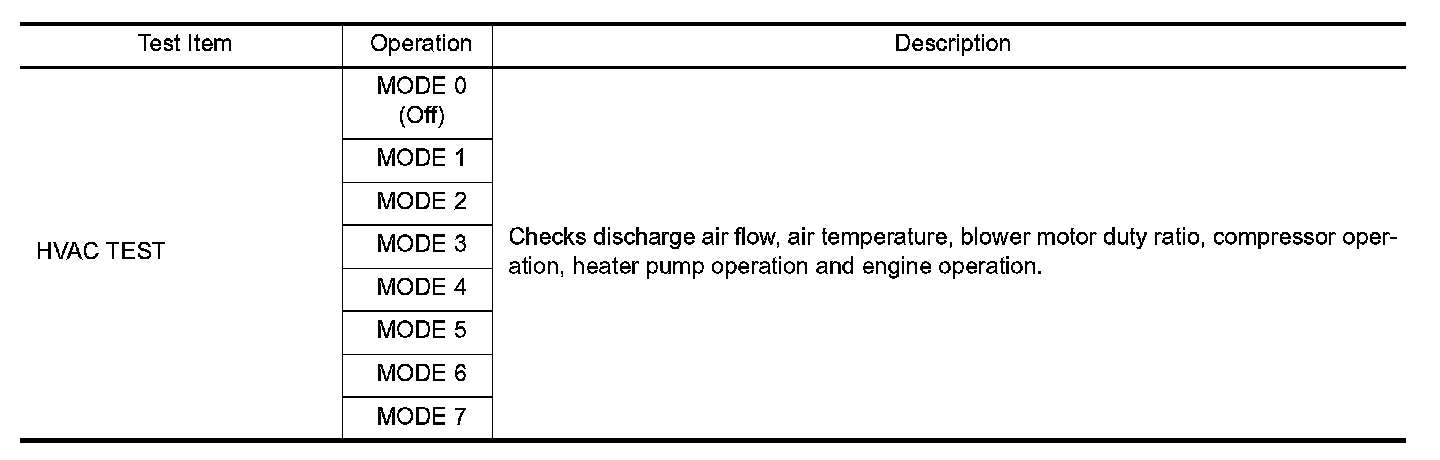

HVAC TEST

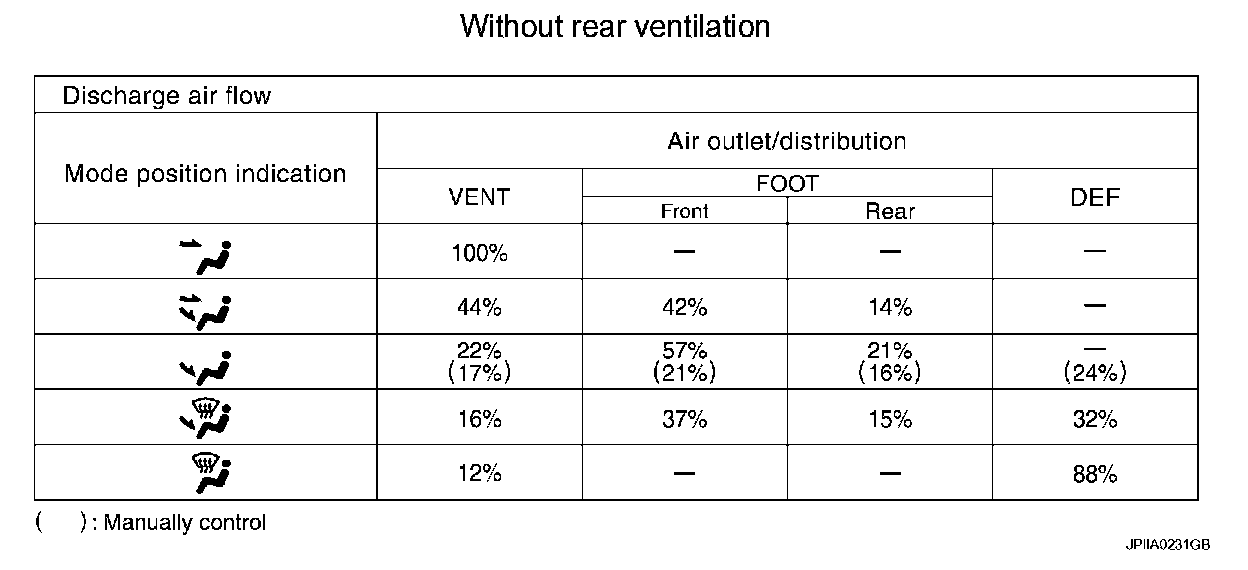

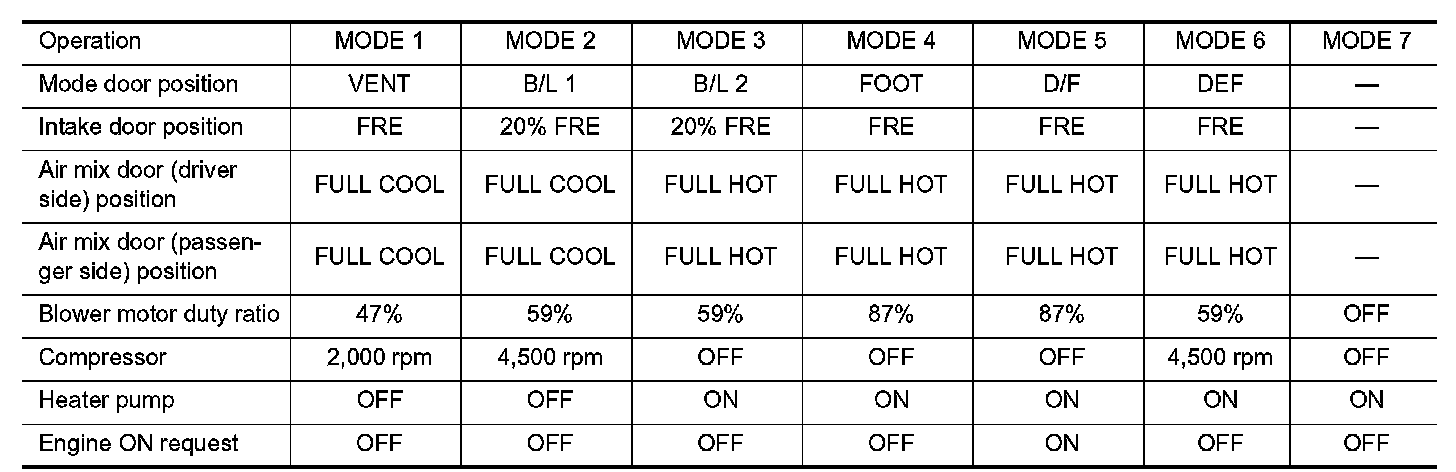

Refer to the following chart and check discharge air flow, air temperature, blower motor duty ratio, compressor operation, heater pump operation and engine operation.






CAUTION: Complete this inspection within 10 seconds if there is no water in the heater pump.







Checks must be made visually, by listening the sound, or by touching air outlets with hand, etc. for improper operation.
